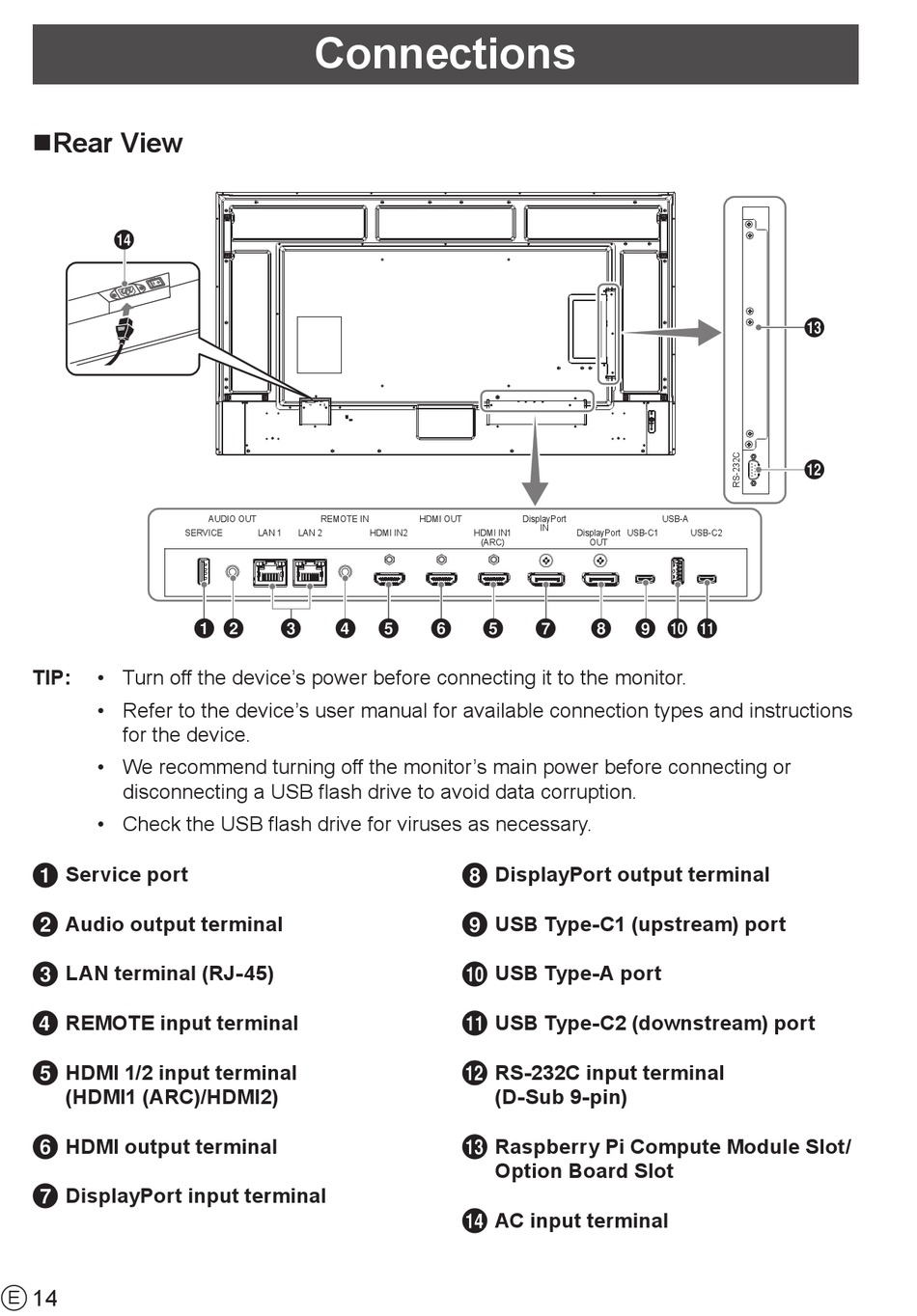

nRear View
$

TIP: • Turn off the device's power before connecting it to the monitor.

• Refer to the device's user manual for available connection types and instructions
for the device.

• We recommend turning off the monitor's main power before connecting or
disconnecting a USB flash drive to avoid data corruption.

• Check the USB flash drive for viruses as necessary.
Service port
1
Audio output terminal
2
LAN terminal (RJ-45)
3
REMOTE input terminal
4
HDMI 1/2 input terminal
5
(HDMI1 (ARC)/HDMI2)
HDMI output terminal
6
DisplayPort input terminal
7
14
E
Connections
AUDIO OUT REMOTE IN
SERVICE LAN 1 LAN 2
1 2 3 4
HDMI OUT DisplayPort
IN
HDMI IN2 HDMI IN1
(ARC)
5 6 5 7
DisplayPort output terminal
8
USB Type-C1 (upstream) port
9
USB Type-A port
0
USB Type-C2 (downstream) port
!
RS-232C input terminal
@
(D-Sub 9-pin)
Raspberry Pi Compute Module Slot/
#
Option Board Slot
AC input terminal
$
USB-A
DisplayPort USB-C1 USB-C2
OUT
8 9 0 !
#
@
