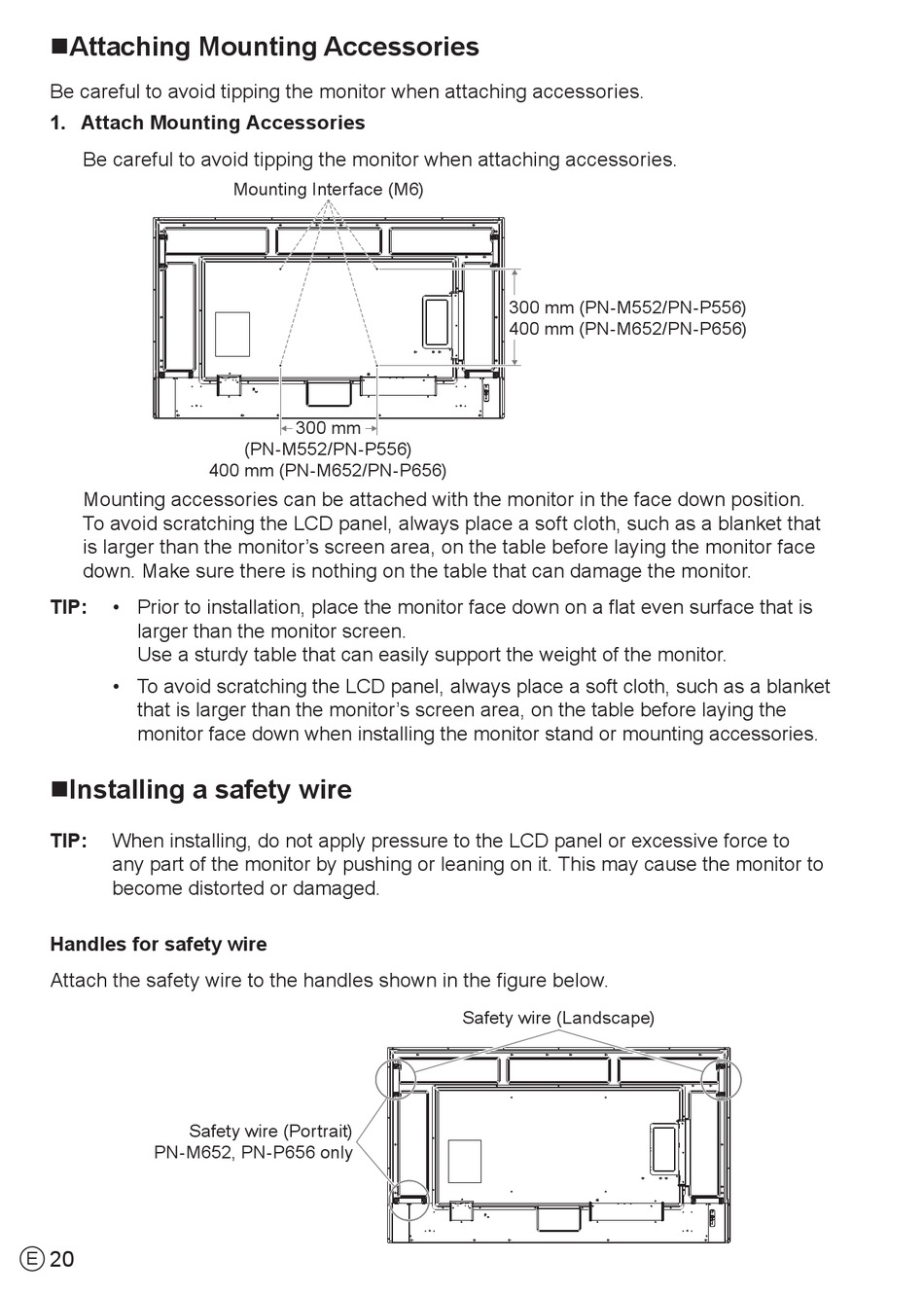

nAttaching Mounting Accessories
Be careful to avoid tipping the monitor when attaching accessories.
1. Attach Mounting Accessories
Be careful to avoid tipping the monitor when attaching accessories.
Mounting accessories can be attached with the monitor in the face down position.
To avoid scratching the LCD panel, always place a soft cloth, such as a blanket that
is larger than the monitor's screen area, on the table before laying the monitor face
down. Make sure there is nothing on the table that can damage the monitor.
TIP:
• Prior to installation, place the monitor face down on a flat even surface that is
larger than the monitor screen.
Use a sturdy table that can easily support the weight of the monitor.
• To avoid scratching the LCD panel, always place a soft cloth, such as a blanket
that is larger than the monitor's screen area, on the table before laying the
monitor face down when installing the monitor stand or mounting accessories.
nInstalling a safety wire
TIP:
When installing, do not apply pressure to the LCD panel or excessive force to
any part of the monitor by pushing or leaning on it. This may cause the monitor to
become distorted or damaged.
Handles for safety wire
Attach the safety wire to the handles shown in the figure below.
Safety wire (Portrait)
PN-M652, PN-P656 only
20
E
Mounting Interface (M6)
300 mm
(PN-M552/PN-P556)
400 mm (PN-M652/PN-P656)
300 mm (PN-M552/PN-P556)
400 mm (PN-M652/PN-P656)
Safety wire (Landscape)
