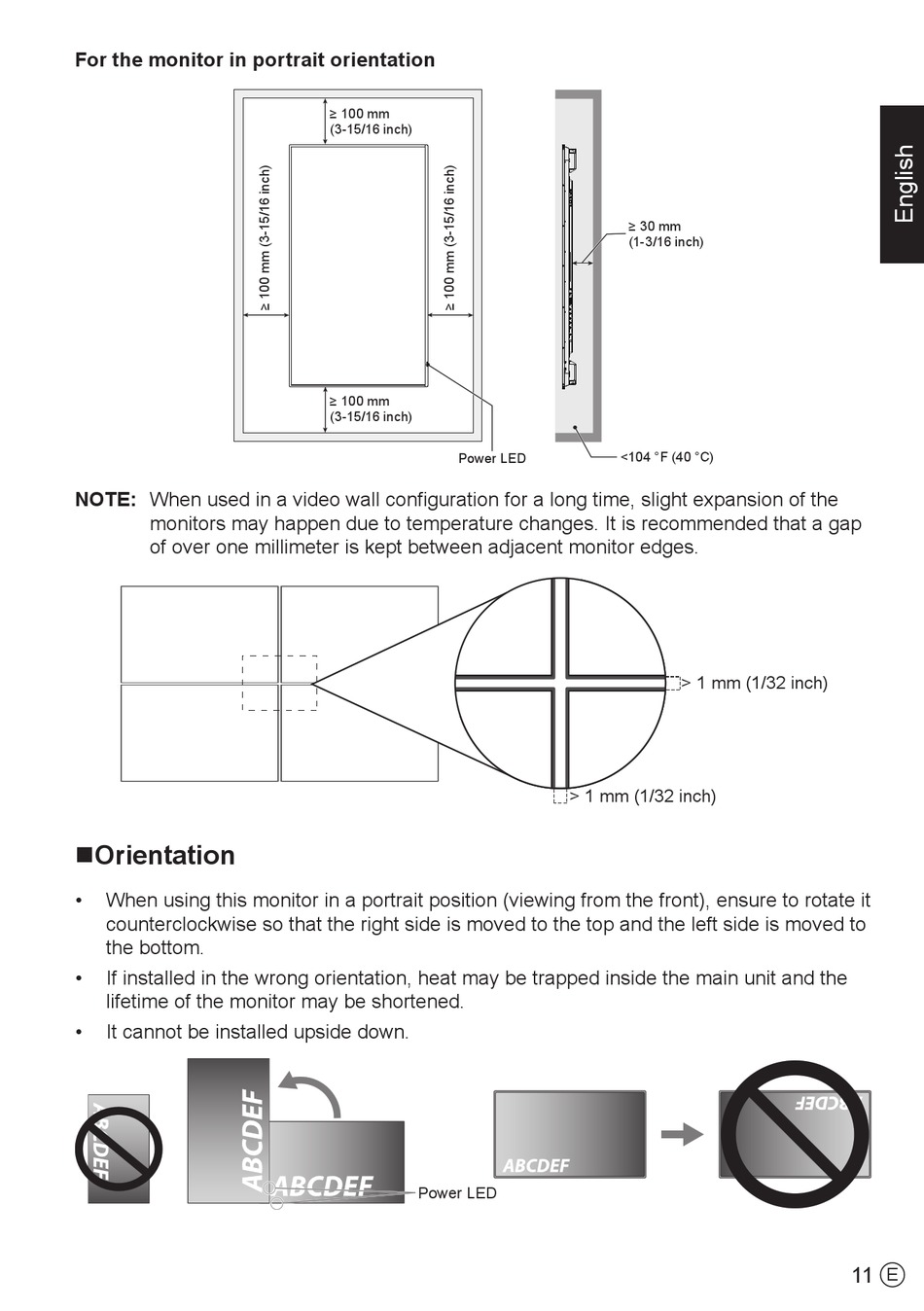

For the monitor in portrait orientation
NOTE:
When used in a video wall configuration for a long time, slight expansion of the
monitors may happen due to temperature changes. It is recommended that a gap
of over one millimeter is kept between adjacent monitor edges.
nOrientation
•
When using this monitor in a portrait position (viewing from the front), ensure to rotate it
counterclockwise so that the right side is moved to the top and the left side is moved to
the bottom.
•
If installed in the wrong orientation, heat may be trapped inside the main unit and the
lifetime of the monitor may be shortened.
•
It cannot be installed upside down.
≥ 100 mm
(3-15/16 inch)
≥ 100 mm
(3-15/16 inch)
Power LED
Power LED
≥ 30 mm
(1-3/16 inch)
<104 °F (40 °C)
> 1 mm (1/32 inch)
> 1 mm (1/32 inch)
11
E
