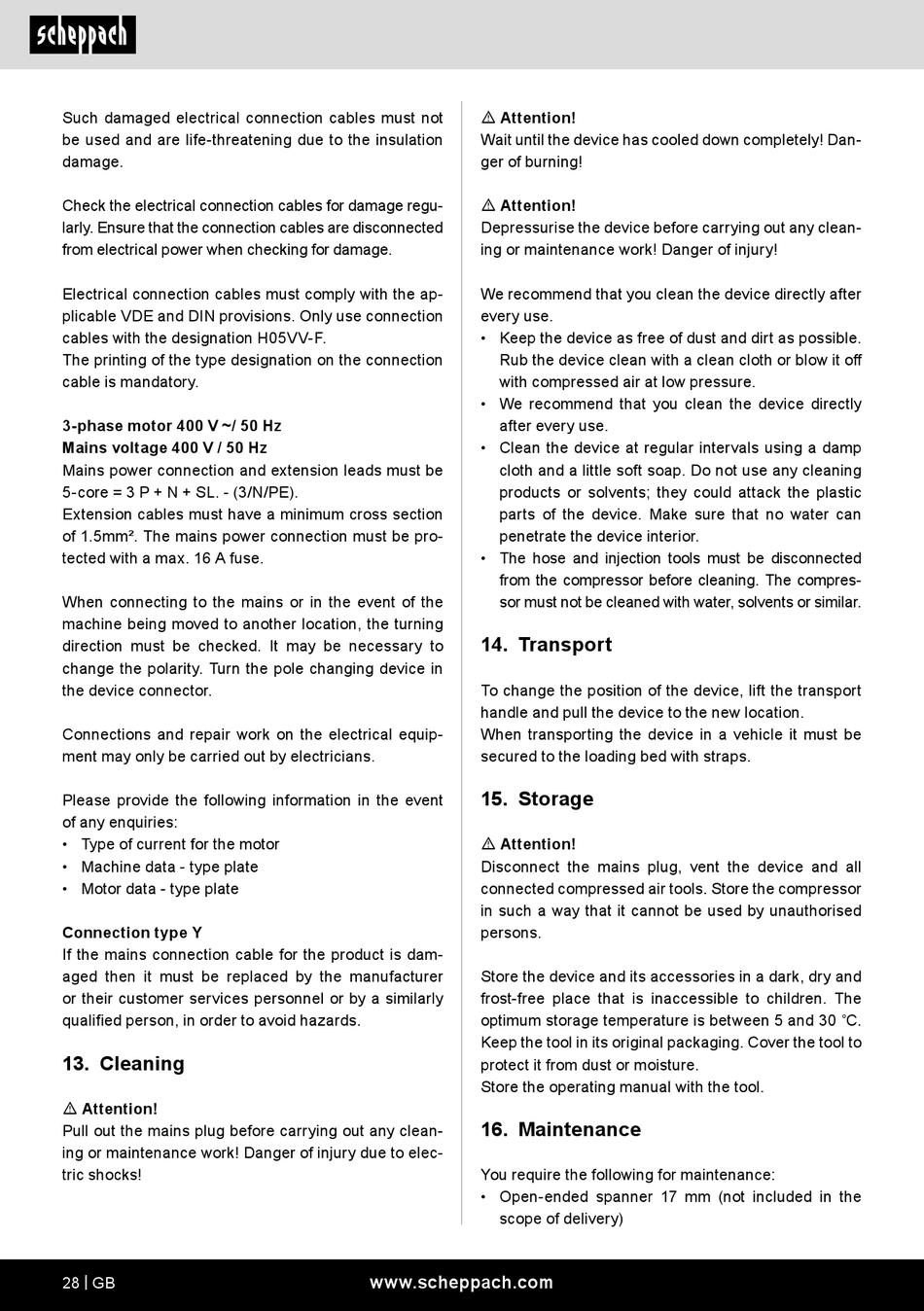

Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage regu-
larly. Ensure that the connection cables are disconnected
from electrical power when checking for damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the designation H05VV-F.
The printing of the type designation on the connection
cable is mandatory.
3-phase motor 400 V ~/ 50 Hz
Mains voltage 400 V / 50 Hz
Mains power connection and extension leads must be
5-core = 3 P + N + SL. - (3/N/PE).
Extension cables must have a minimum cross section
of 1.5mm². The mains power connection must be pro-
tected with a max. 16 A fuse.
When connecting to the mains or in the event of the
machine being moved to another location, the turning
direction must be checked. It may be necessary to
change the polarity. Turn the pole changing device in
the device connector.
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
Connection type Y
If the mains connection cable for the product is dam-
aged then it must be replaced by the manufacturer
or their customer services personnel or by a similarly
qualified person, in order to avoid hazards.
13. Cleaning
m Attention!
Pull out the mains plug before carrying out any clean-
ing or maintenance work! Danger of injury due to elec-
tric shocks!
28 | GB
m Attention!
Wait until the device has cooled down completely! Dan-
ger of burning!
m Attention!
Depressurise the device before carrying out any clean-
ing or maintenance work! Danger of injury!
We recommend that you clean the device directly after
every use.
• Keep the device as free of dust and dirt as possible.
Rub the device clean with a clean cloth or blow it off
with compressed air at low pressure.
• We recommend that you clean the device directly
after every use.
• Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic
parts of the device. Make sure that no water can
penetrate the device interior.
• The hose and injection tools must be disconnected
from the compressor before cleaning. The compres-
sor must not be cleaned with water, solvents or similar.
14. Transport
To change the position of the device, lift the transport
handle and pull the device to the new location.
When transporting the device in a vehicle it must be
secured to the loading bed with straps.
15. Storage
m Attention!
Disconnect the mains plug, vent the device and all
connected compressed air tools. Store the compressor
in such a way that it cannot be used by unauthorised
persons.
Store the device and its accessories in a dark, dry and
frost-free place that is inaccessible to children. The
optimum storage temperature is between 5 and 30 ˚C.
Keep the tool in its original packaging. Cover the tool to
protect it from dust or moisture.
Store the operating manual with the tool.
16. Maintenance
You require the following for maintenance:
• Open-ended spanner 17 mm (not included in the
scope of delivery)
