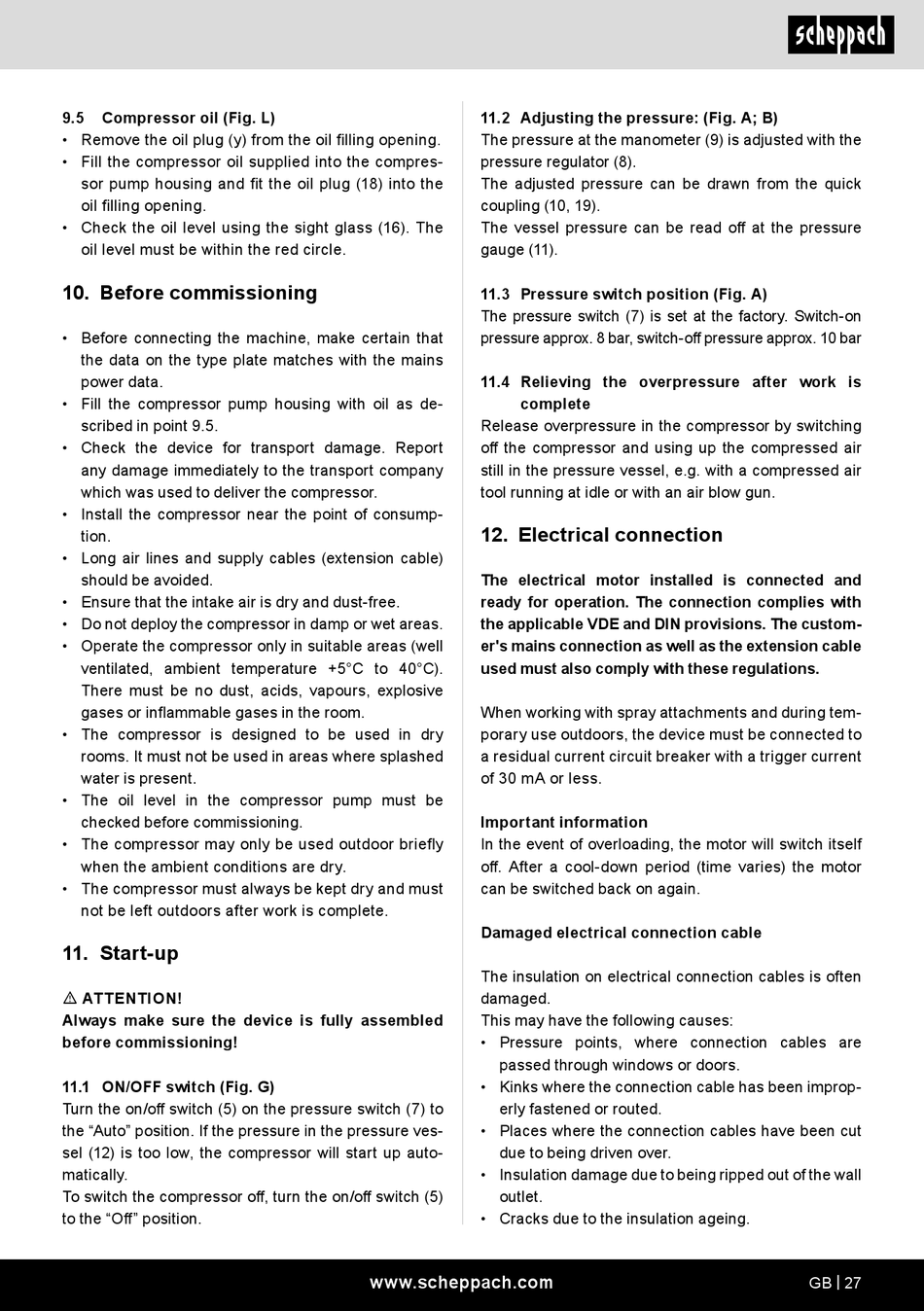

9.5
Compressor oil (Fig. L)
• Remove the oil plug (y) from the oil filling opening.
• Fill the compressor oil supplied into the compres-
sor pump housing and fit the oil plug (18) into the
oil filling opening.
• Check the oil level using the sight glass (16). The
oil level must be within the red circle.
10. Before commissioning
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Fill the compressor pump housing with oil as de-
scribed in point 9.5.
• Check the device for transport damage. Report
any damage immediately to the transport company
which was used to deliver the compressor.
• Install the compressor near the point of consump-
tion.
• Long air lines and supply cables (extension cable)
should be avoided.
• Ensure that the intake air is dry and dust-free.
• Do not deploy the compressor in damp or wet areas.
• Operate the compressor only in suitable areas (well
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
• The compressor is designed to be used in dry
rooms. It must not be used in areas where splashed
water is present.
• The oil level in the compressor pump must be
checked before commissioning.
• The compressor may only be used outdoor briefly
when the ambient conditions are dry.
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
11. Start-up
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
11.1 ON/OFF switch (Fig. G)
Turn the on/off switch (5) on the pressure switch (7) to
the "Auto" position. If the pressure in the pressure ves-
sel (12) is too low, the compressor will start up auto-
matically.
To switch the compressor off, turn the on/off switch (5)
to the "Off" position.
11.2 Adjusting the pressure: (Fig. A; B)
The pressure at the manometer (9) is adjusted with the
pressure regulator (8).
The adjusted pressure can be drawn from the quick
coupling (10, 19).
The vessel pressure can be read off at the pressure
gauge (11).
11.3 Pressure switch position (Fig. A)
The pressure switch (7) is set at the factory. Switch-on
pressure approx. 8 bar, switch-off pressure approx. 10 bar
11.4 Relieving the overpressure after work is
complete
Release overpressure in the compressor by switching
off the compressor and using up the compressed air
still in the pressure vessel, e.g. with a compressed air
tool running at idle or with an air blow gun.
12. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The custom-
er's mains connection as well as the extension cable
used must also comply with these regulations.
When working with spray attachments and during tem-
porary use outdoors, the device must be connected to
a residual current circuit breaker with a trigger current
of 30 mA or less.
Important information
In the event of overloading, the motor will switch itself
off. After a cool-down period (time varies) the motor
can be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
www.scheppach.com
GB | 27
