LX Navigation LX20 V5.2 Handbuch Seite 51

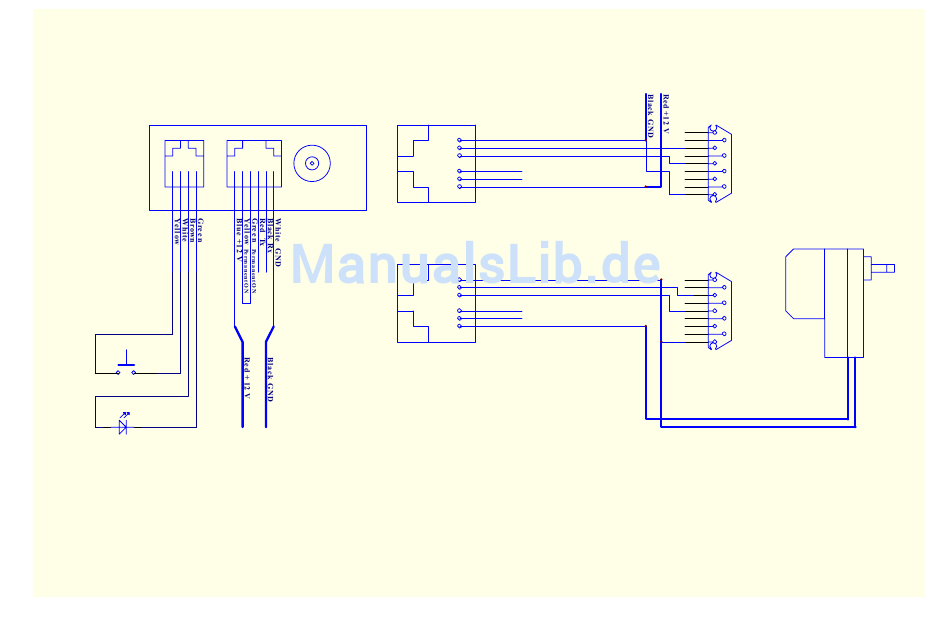

LX 20 - 2000 WIRING DIAGRAM
LX20 - 2000
RJ 4/4 RJ 6/6
EVENT
A K
LED DIODE
RJ6/6
White GND
Black Rx
Red Tx
Blue +12 V
RJ 6/6
White GND
Black Rx
Red Tx
Blue +12 V
SUBD 9 M ale
1
6
2
7
LX 5000, LX 6000, WINPILOT,
3
8
NMEA - Pin 2
4
9
5
Wall Charger
SUBD 9 Female
1
6
2
7
PC
3
8
4
9
5
