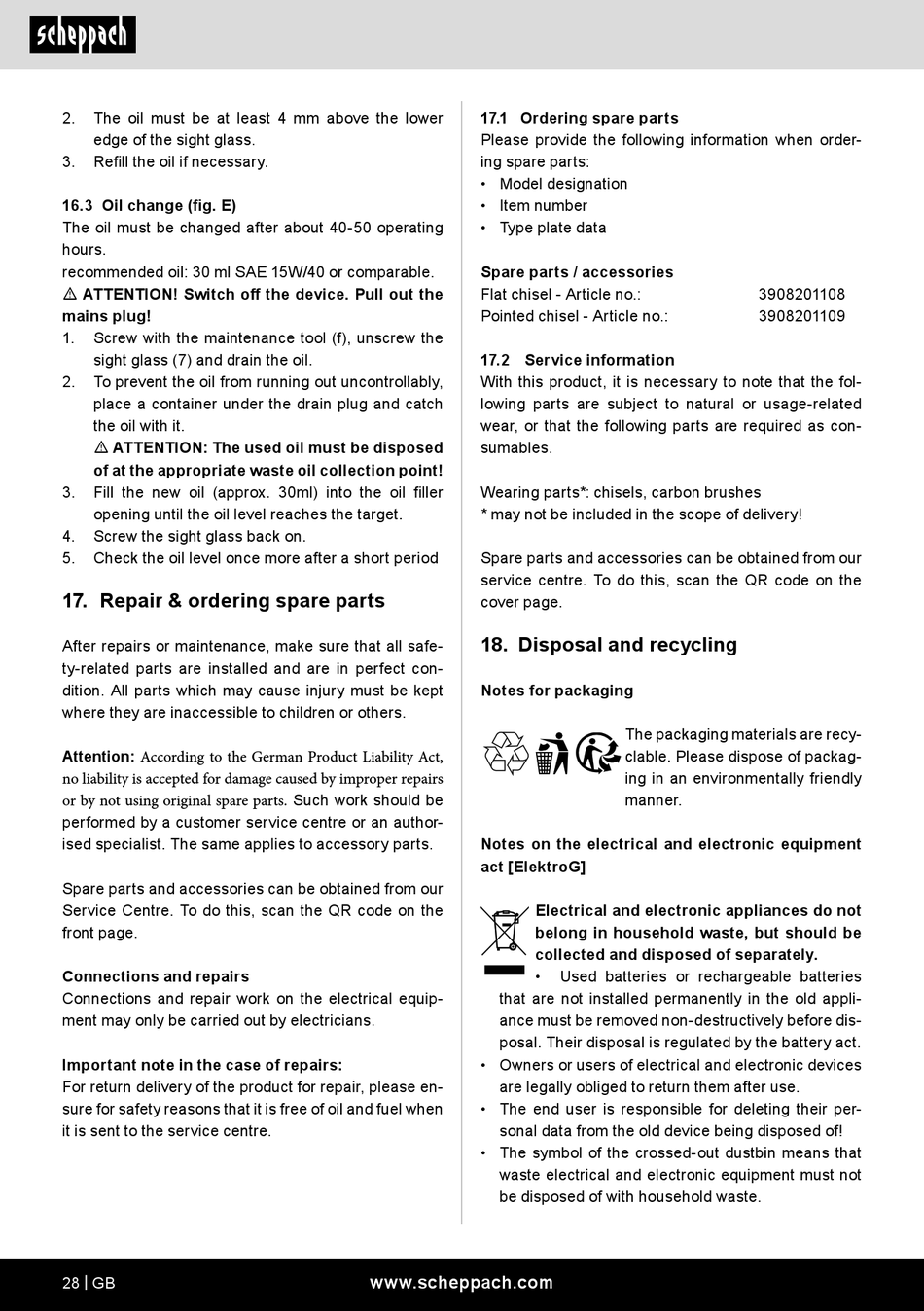

Scheppach AB1600 Originalbetriebsanleitung Seite 28

2. The oil must be at least 4 mm above the lower
edge of the sight glass.
3. Refill the oil if necessary.
16.3 Oil change (fig. E)
The oil must be changed after about 40-50 operating
hours.
recommended oil: 30 ml SAE 15W/40 or comparable.
m ATTENTION! Switch off the device. Pull out the
mains plug!
1. Screw with the maintenance tool (f), unscrew the
sight glass (7) and drain the oil.
2. To prevent the oil from running out uncontrollably,
place a container under the drain plug and catch
the oil with it.
m ATTENTION: The used oil must be disposed
of at the appropriate waste oil collection point!
3. Fill the new oil (approx. 30ml) into the oil filler
opening until the oil level reaches the target.
4. Screw the sight glass back on.
5. Check the oil level once more after a short period
17. Repair & ordering spare parts
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect con-
dition. All parts which may cause injury must be kept
where they are inaccessible to children or others.
Attention: According to the German Product Liability Act,
no liability is accepted for damage caused by improper repairs
or by not using original spare parts. Such work should be
performed by a customer service centre or an author-
ised specialist. The same applies to accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
Connections and repairs
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Important note in the case of repairs:
For return delivery of the product for repair, please en-
sure for safety reasons that it is free of oil and fuel when
it is sent to the service centre.
28 | GB
17.1 Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Model designation
• Item number
• Type plate data
Spare parts / accessories
Flat chisel - Article no.:
Pointed chisel - Article no.:
17.2 Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: chisels, carbon brushes
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
18. Disposal and recycling
Notes for packaging
Notes on the electrical and electronic equipment
act [ElektroG]
Electrical and electronic appliances do not
belong in household waste, but should be
collected and disposed of separately.
•
that are not installed permanently in the old appli-
ance must be removed non-destructively before dis-
posal. Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that
waste electrical and electronic equipment must not
be disposed of with household waste.
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
Used batteries or rechargeable batteries
3908201108
3908201109
