HMS i console R5814 Gebrauchsanleitung Seite 24

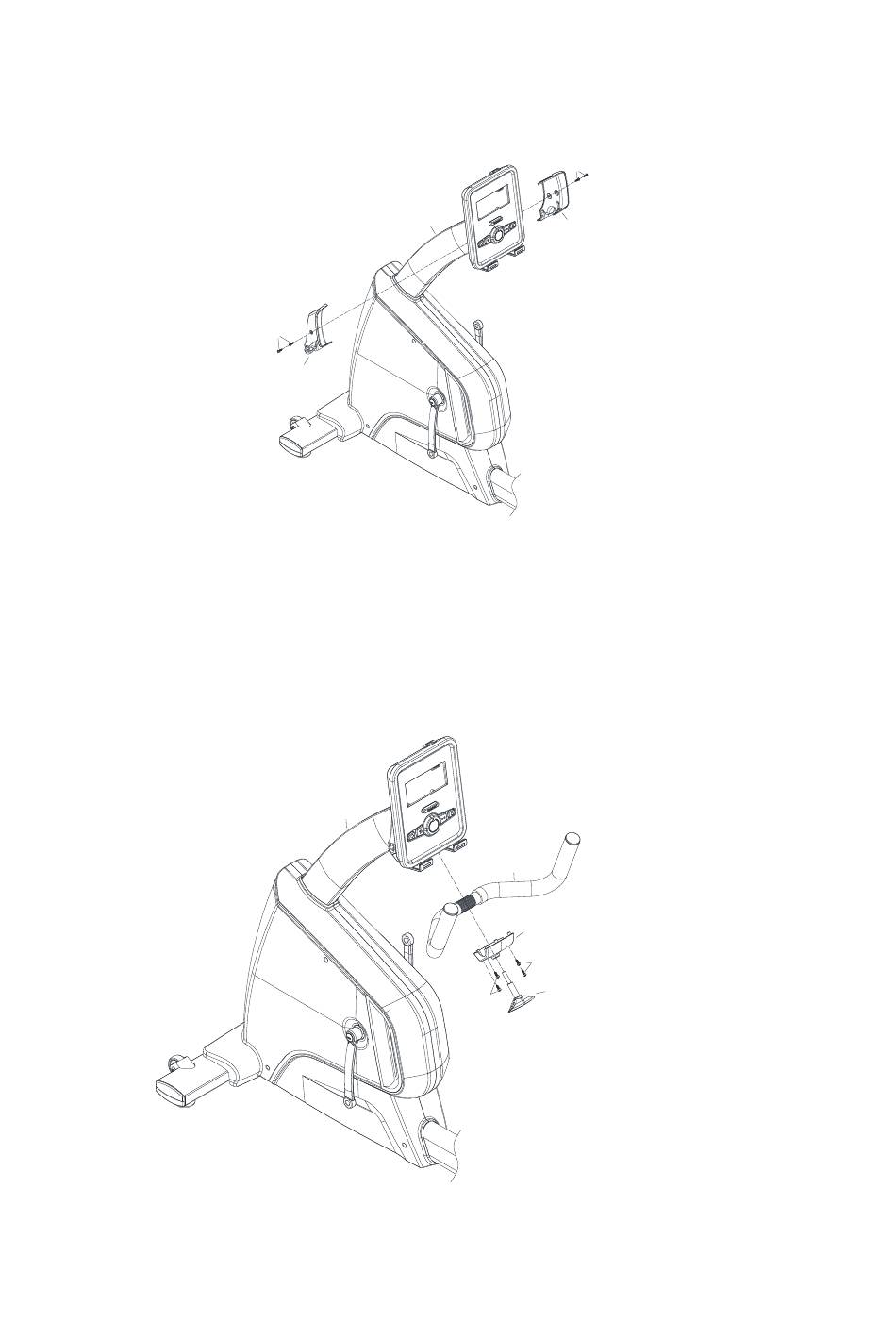

Step 5:
1. Attach the handlebar cover - left (54) and right (55) to upper upright post (4) with Phillips
pan head full thread screw (29).
Step 6:
1. Fixed the handlebar post. Through T shape knob (65) out of handlebar. Rotate inside.
Adjust the handlebar tube to the suitable position. Rotate T shape knob tightly. Then lock
the handlebar front cover (56) with Phillips C.K.S. self-tapping screw(31).
4
29
54
4
29
55
5
56
31
65
31
