HMS i console R5814 Gebrauchsanleitung Seite 22

Allen cylinder head full thread screw
95
Flat washer
96
Magnetic motor
97
Spring
98
Philips full thread bolt
99
Hex self-locking nut M10
100
Bottle holder
101
Bottle
102

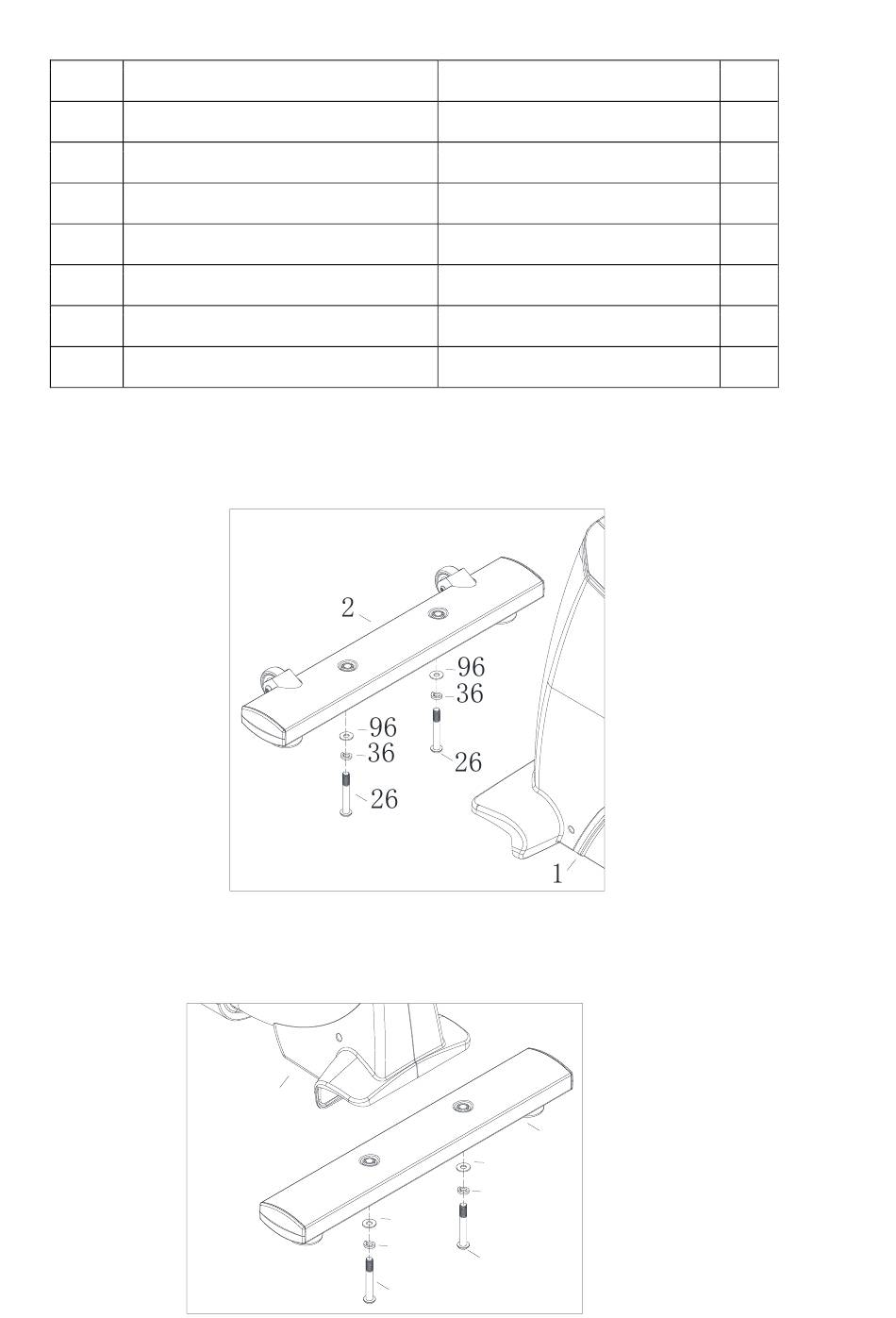

Step 1: Attach the front stabilizer (2) to the main frame (1) with spring washer(36) ,flat
washer(96)and Allen C.K.S. half thread screw(26).
Step 2: Attach the rear stabilizer (3) to the main frame (1) with spring washer(36), flat
washer(96) and Allen C.K.S. half thread screw(26).
M5*20
1
96
36
26
M8×15
Φ10
3
96
36
26
8
4
1
1
5
2
1
1
