HMS i console R5814 Gebrauchsanleitung Seite 23

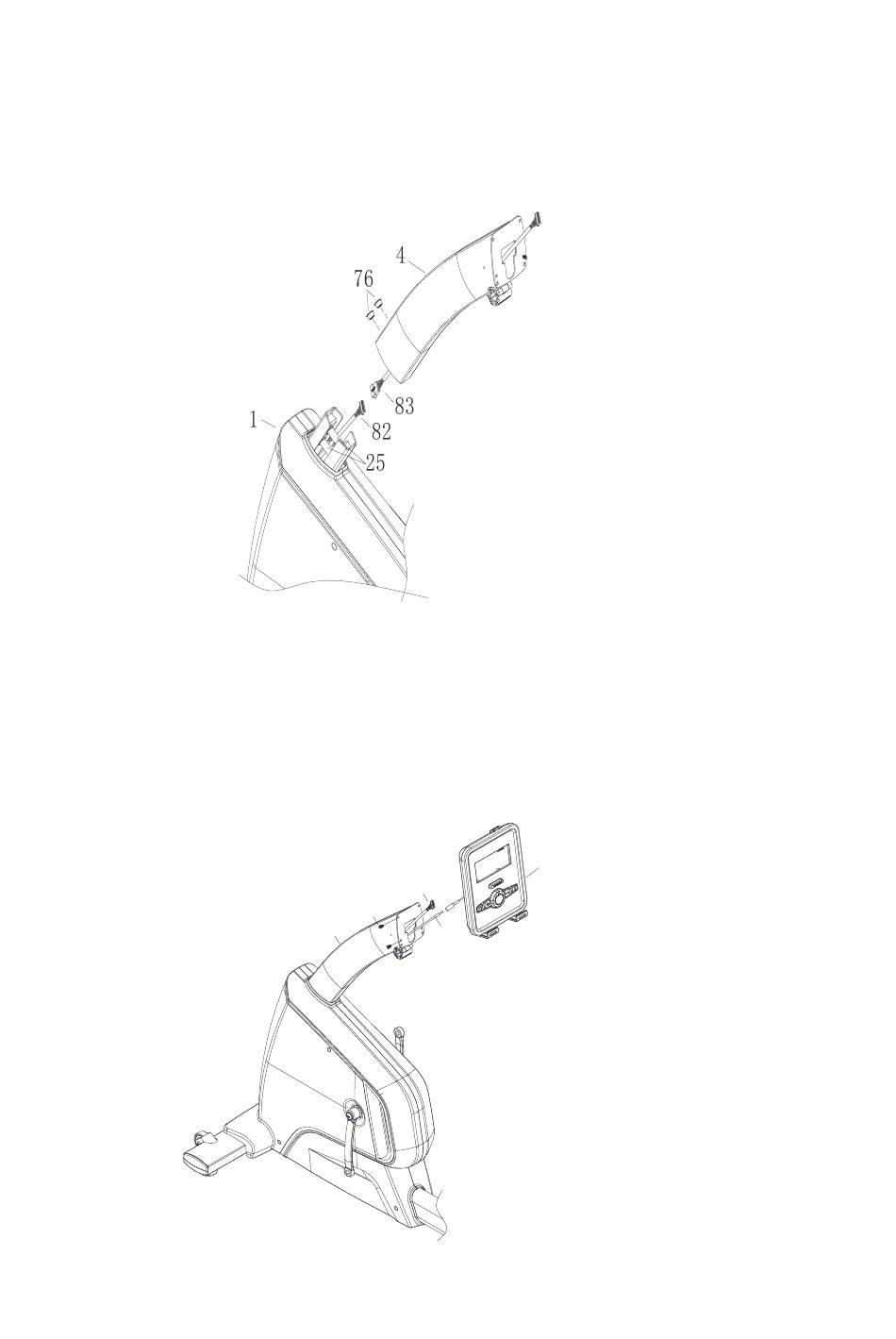

Step 3:
1. Connect motor communication wire (82) with upright post communication wire(83).
Attach upper upright post (4) to main frame (1), use the spaner to lock them with Allen flat
end set bolt (25) which preinstalled on the main frame. Then cover it with hold plug. Please
lock the two Allen flat end set bolts at the same time,and fix the screws by turns.
Step 4:
1.Connect the console communication wire (83) with back hole of console. Connect handle
pulse connection wire (86) with console outlet .
2. Attach the console (81) to upright post (4) with Phillips C.K.S. full thread screw (32).
81
83
32
4
86
