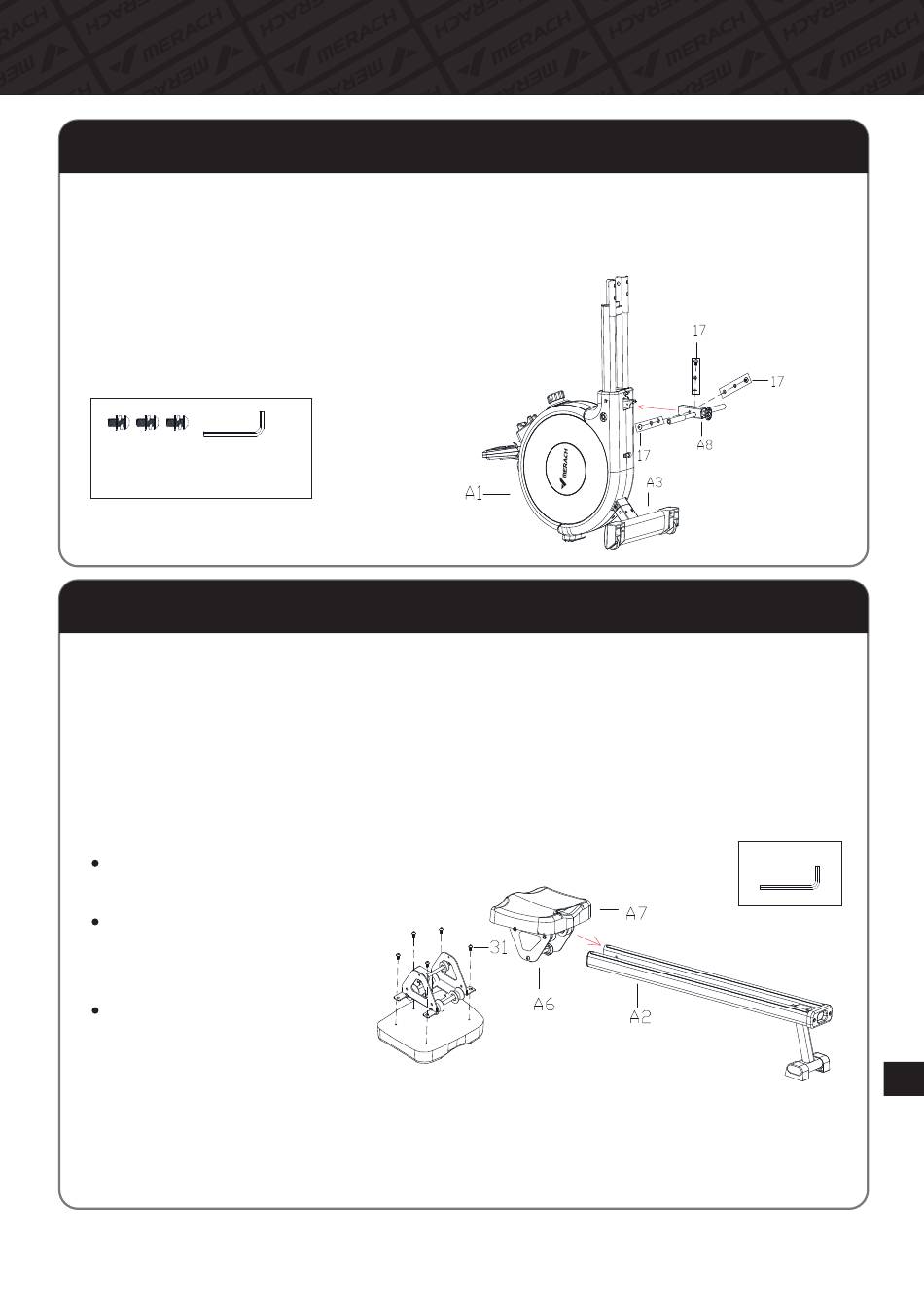

Step 2:
Screw the Support Tube Assembly(A8) into the Main Frame Assembly(A1) with 3PCS
Hexagon Socket Head Bolts(17) , tighten it by the Allen Key(T2).
NOTE:
The Hexagon Socket Head Bolts(17)
includes the Spring Washers and
Flat Washers.
#17 Hexagon Socket Head Bolts
M6*15 X 3
T2 Allen Key
Step 3:
A. Unscrew the pre-assembled 4PCS Hexagon Socket Head Bolts(31) from the Seat
Cushion Assembly(A6) with the Allen Key(T2).
B. Install the Cushion(A7) on the Seat Cushion Assembly(A6) with the 4PCS Hexagon
Socket Head Bolts(31).
C. Put the Seat Cushion Assembly(A6) into the Slide Rail Assembly(A2).
NOTE:
The Hexagon Socket Head Bolts(31)
is pre-assembled.
As shown, keep the Seat
Cushion Assembly(A6) in
the right direction.
Place the Seat Cushion
Assembly(A6) at the back
of rail so easy to STEP4.
