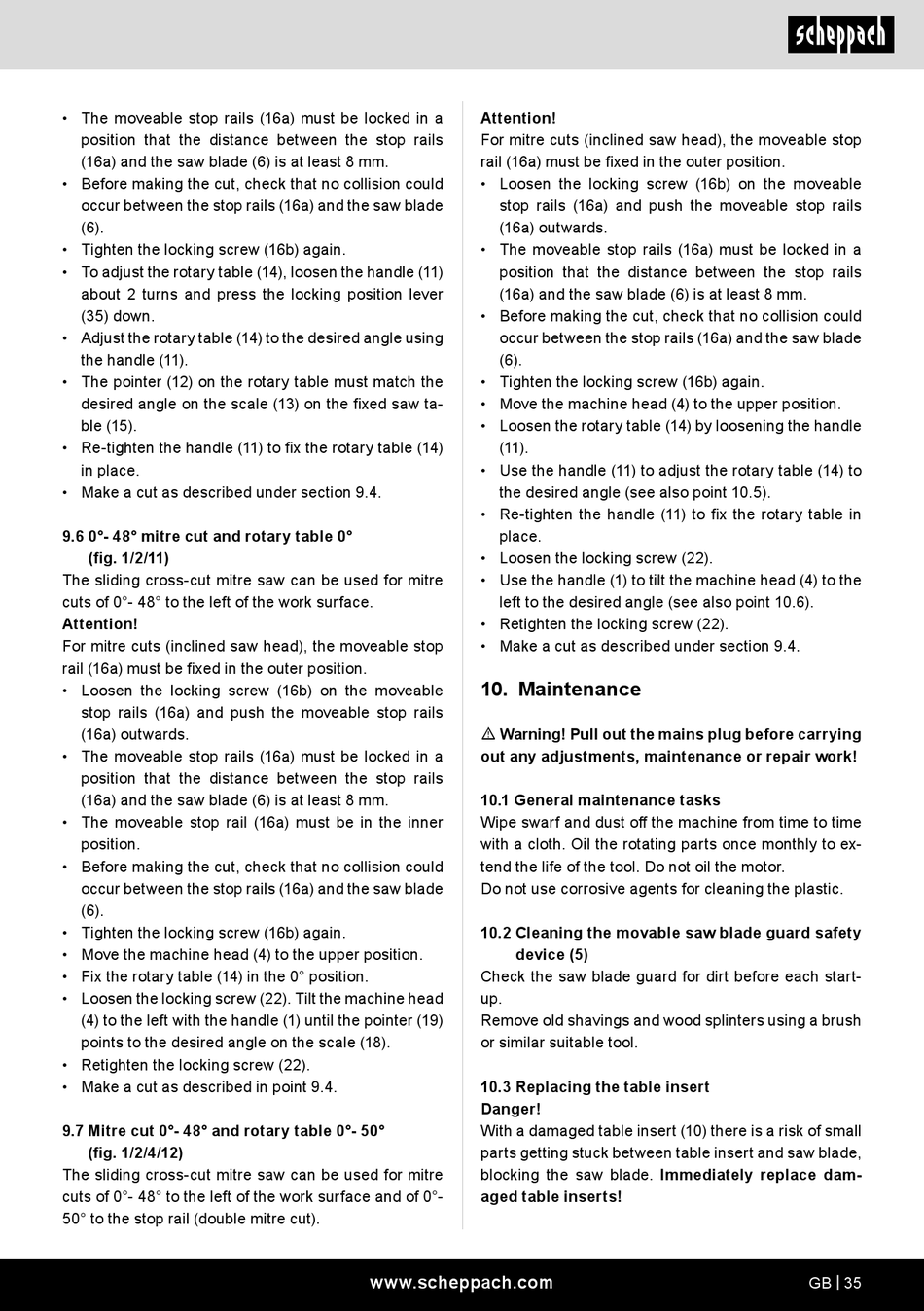

Scheppach HM305SL Original Bedienungsanleitung Seite 35

• The moveable stop rails (16a) must be locked in a
position that the distance between the stop rails
(16a) and the saw blade (6) is at least 8 mm.
• Before making the cut, check that no collision could
occur between the stop rails (16a) and the saw blade
(6).
• Tighten the locking screw (16b) again.
• To adjust the rotary table (14), loosen the handle (11)
about 2 turns and press the locking position lever
(35) down.
• Adjust the rotary table (14) to the desired angle using
the handle (11).
• The pointer (12) on the rotary table must match the
desired angle on the scale (13) on the 昀椀xed saw ta-
ble (15).
• Re-tighten the handle (11) to 昀椀x the rotary table (14)
in place.
• Make a cut as described under section 9.4.
9.6 0°- 48° mitre cut and rotary table 0°
(昀椀g. 1/2/11)
The sliding cross-cut mitre saw can be used for mitre
cuts of 0°- 48° to the left of the work surface.
Attention!
For mitre cuts (inclined saw head), the moveable stop
rail (16a) must be 昀椀xed in the outer position.
• Loosen the locking screw (16b) on the moveable
stop rails (16a) and push the moveable stop rails
(16a) outwards.
• The moveable stop rails (16a) must be locked in a
position that the distance between the stop rails
(16a) and the saw blade (6) is at least 8 mm.
• The moveable stop rail (16a) must be in the inner
position.
• Before making the cut, check that no collision could
occur between the stop rails (16a) and the saw blade
(6).
• Tighten the locking screw (16b) again.
• Move the machine head (4) to the upper position.
• Fix the rotary table (14) in the 0° position.
• Loosen the locking screw (22). Tilt the machine head
(4) to the left with the handle (1) until the pointer (19)
points to the desired angle on the scale (18).
• Retighten the locking screw (22).
• Make a cut as described in point 9.4.
9.7 Mitre cut 0°- 48° and rotary table 0°- 50°
(昀椀g. 1/2/4/12)
The sliding cross-cut mitre saw can be used for mitre
cuts of 0°- 48° to the left of the work surface and of 0°-
50° to the stop rail (double mitre cut).
Attention!
For mitre cuts (inclined saw head), the moveable stop
rail (16a) must be 昀椀xed in the outer position.
• Loosen the locking screw (16b) on the moveable
stop rails (16a) and push the moveable stop rails
(16a) outwards.
• The moveable stop rails (16a) must be locked in a
position that the distance between the stop rails
(16a) and the saw blade (6) is at least 8 mm.
• Before making the cut, check that no collision could
occur between the stop rails (16a) and the saw blade
(6).
• Tighten the locking screw (16b) again.
• Move the machine head (4) to the upper position.
• Loosen the rotary table (14) by loosening the handle
(11).
• Use the handle (11) to adjust the rotary table (14) to
the desired angle (see also point 10.5).
• Re-tighten the handle (11) to 昀椀x the rotary table in
place.
• Loosen the locking screw (22).
• Use the handle (1) to tilt the machine head (4) to the
left to the desired angle (see also point 10.6).
• Retighten the locking screw (22).
• Make a cut as described under section 9.4.
10. Maintenance
m Warning! Pull out the mains plug before carrying
out any adjustments, maintenance or repair work!
10.1 General maintenance tasks
Wipe swarf and dust o昀昀 the machine from time to time
with a cloth. Oil the rotating parts once monthly to ex-
tend the life of the tool. Do not oil the motor.
Do not use corrosive agents for cleaning the plastic.
10.2 Cleaning the movable saw blade guard safety
device (5)
Check the saw blade guard for dirt before each start-
up.
Remove old shavings and wood splinters using a brush
or similar suitable tool.
10.3 Replacing the table insert
Danger!
With a damaged table insert (10) there is a risk of small
parts getting stuck between table insert and saw blade,
blocking the saw blade. Immediately replace dam-
aged table inserts!
