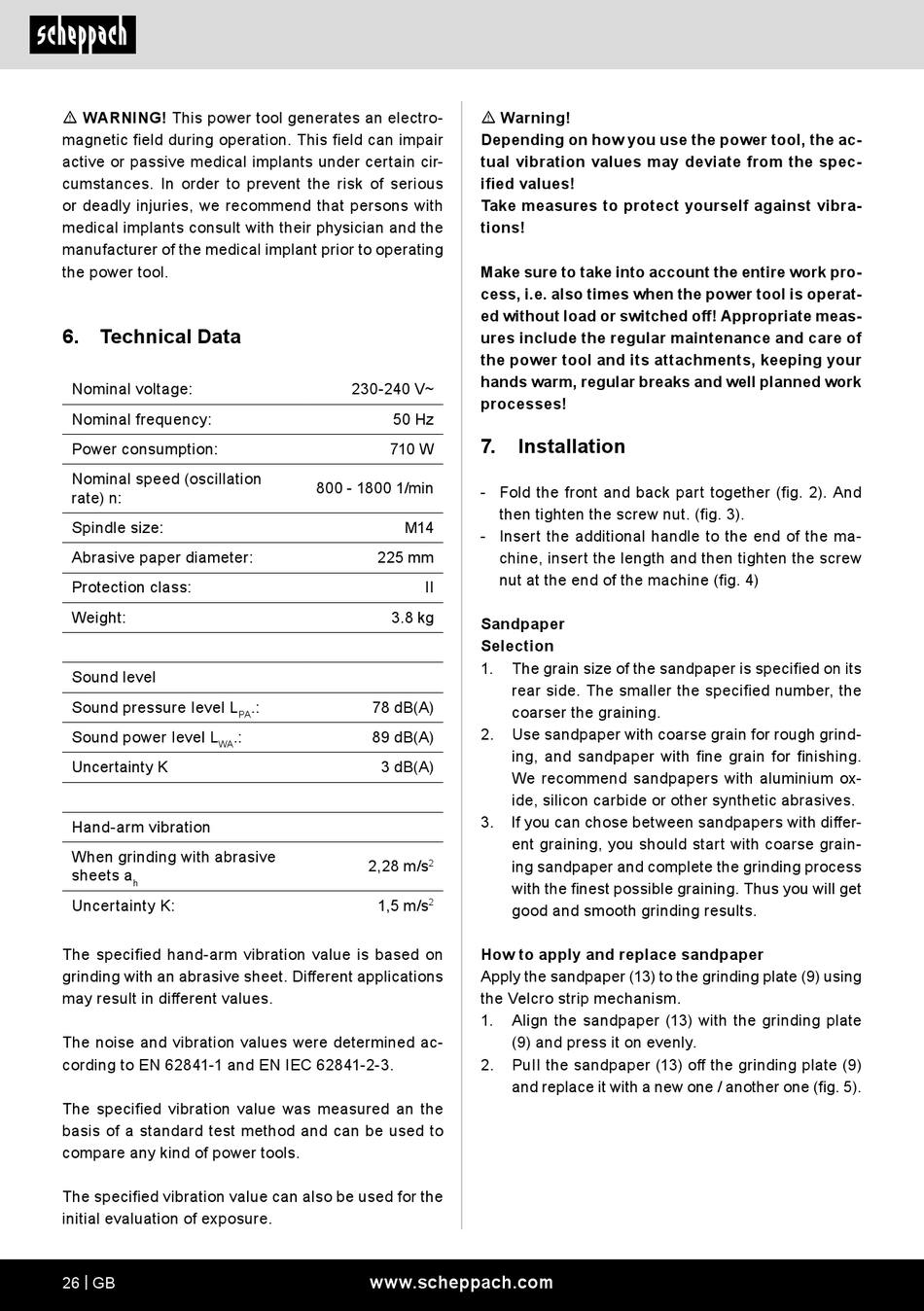

Scheppach DS920 Originalbetriebsanleitung Seite 26

m WARNING! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain cir-
cumstances. In order to prevent the risk of serious
or deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operating
the power tool.
6. Technical Data
Nominal voltage:
Nominal frequency:
Power consumption:
Nominal speed (oscillation
rate) n:
Spindle size:
Abrasive paper diameter:
Protection class:
Weight:
Sound level
Sound pressure Ievel L
Sound power Ievel L .:
WA
Uncertainty K
Hand-arm vibration
When grinding with abrasive
sheets a
h
Uncertainty K:
The specified hand-arm vibration value is based on
grinding with an abrasive sheet. Different applications
may result in different values.
The noise and vibration values were determined ac-
cording to EN 62841-1 and EN IEC 62841-2-3.
The specified vibration value was measured an the
basis of a standard test method and can be used to
compare any kind of power tools.
The specified vibration value can also be used for the
initial evaluation of exposure.
26 | GB
230-240 V~
50 Hz
710 W
800 - 1800 1/min
M14
225 mm
3.8 kg
.: 78 dB(A)
PA
89 dB(A)
3 dB(A)
2,28 m/s
1,5 m/s
www.scheppach.com
m Warning!
Depending on how you use the power tool, the ac-
tual vibration values may deviate from the spec-
ified values!
Take measures to protect yourself against vibra-
tions!
Make sure to take into account the entire work pro-
cess, i.e. also times when the power tool is operat-
ed without Ioad or switched off! Appropriate meas-
ures include the regular maintenance and care of
the power tool and its attachments, keeping your
hands warm, regular breaks and well planned work
processes!
7. Installation
- Fold the front and back part together (fig. 2). And
then tighten the screw nut. (fig. 3).
- Insert the additional handle to the end of the ma-
chine, insert the length and then tighten the screw
nut at the end of the machine (fig. 4)
II
Sandpaper
Selection
1. The grain size of the sandpaper is specified on its
rear side. The smaller the specified number, the
coarser the graining.
2. Use sandpaper with coarse grain for rough grind-
ing, and sandpaper with fine grain for finishing.
We recommend sandpapers with aluminium ox-
ide, silicon carbide or other synthetic abrasives.
3. lf you can chose between sandpapers with differ-
ent graining, you should start with coarse grain-
ing sandpaper and complete the grinding process
2
with the finest possible graining. Thus you will get
2
good and smooth grinding results.
How to apply and replace sandpaper
Apply the sandpaper (13) to the grinding plate (9) using
the Velcro strip mechanism.
1. Align the sandpaper (13) with the grinding plate
(9) and press it on evenly.
2. PuII the sandpaper (13) off the grinding plate (9)
and replace it with a new one / another one (fig. 5).
