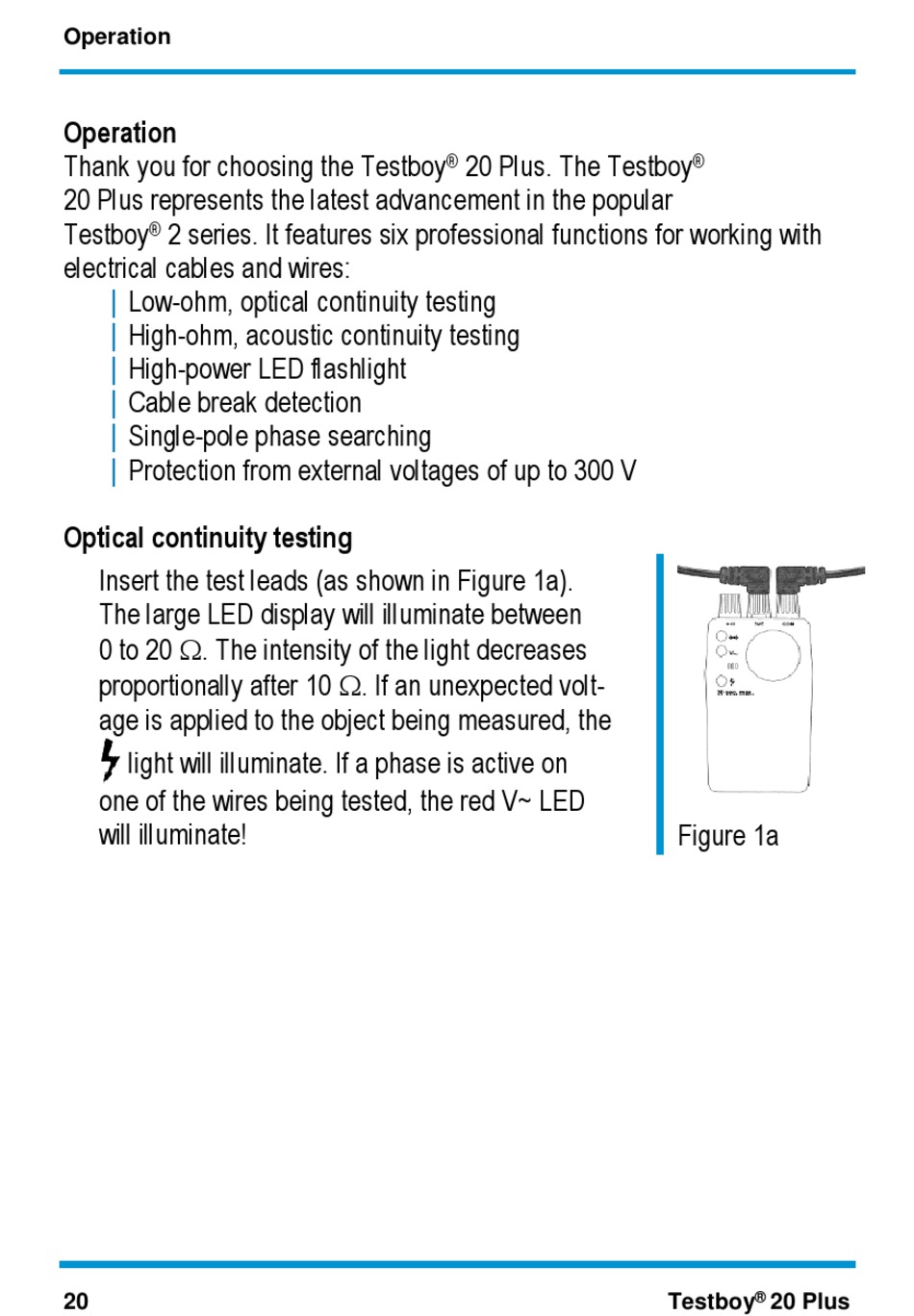

Operation
Operation
Thank you for choosing the Testboy
20 Plus represents the latest advancement in the popular
Testboy 2 series. It features six professional functions for working with
®
electrical cables and wires:
Low-ohm, optical continuity testing
|
High-ohm, acoustic continuity testing
|
High-power LED flashlight
|
Cable break detection
|
Single-pole phase searching
|
Protection from external voltages of up to 300 V
|
Optical continuity testing
Insert the test leads (as shown in Figure 1a).
The large LED display will illuminate between
0 to 20 . The intensity of the light decreases
proportionally after 10 . If an unexpected volt-
age is applied to the object being measured, the
light will illuminate. If a phase is active on
one of the wires being tested, the red V~ LED
will illuminate!
20
20 Plus. The Testboy
® ®
Figure 1a
®
Testboy 20 Plus
