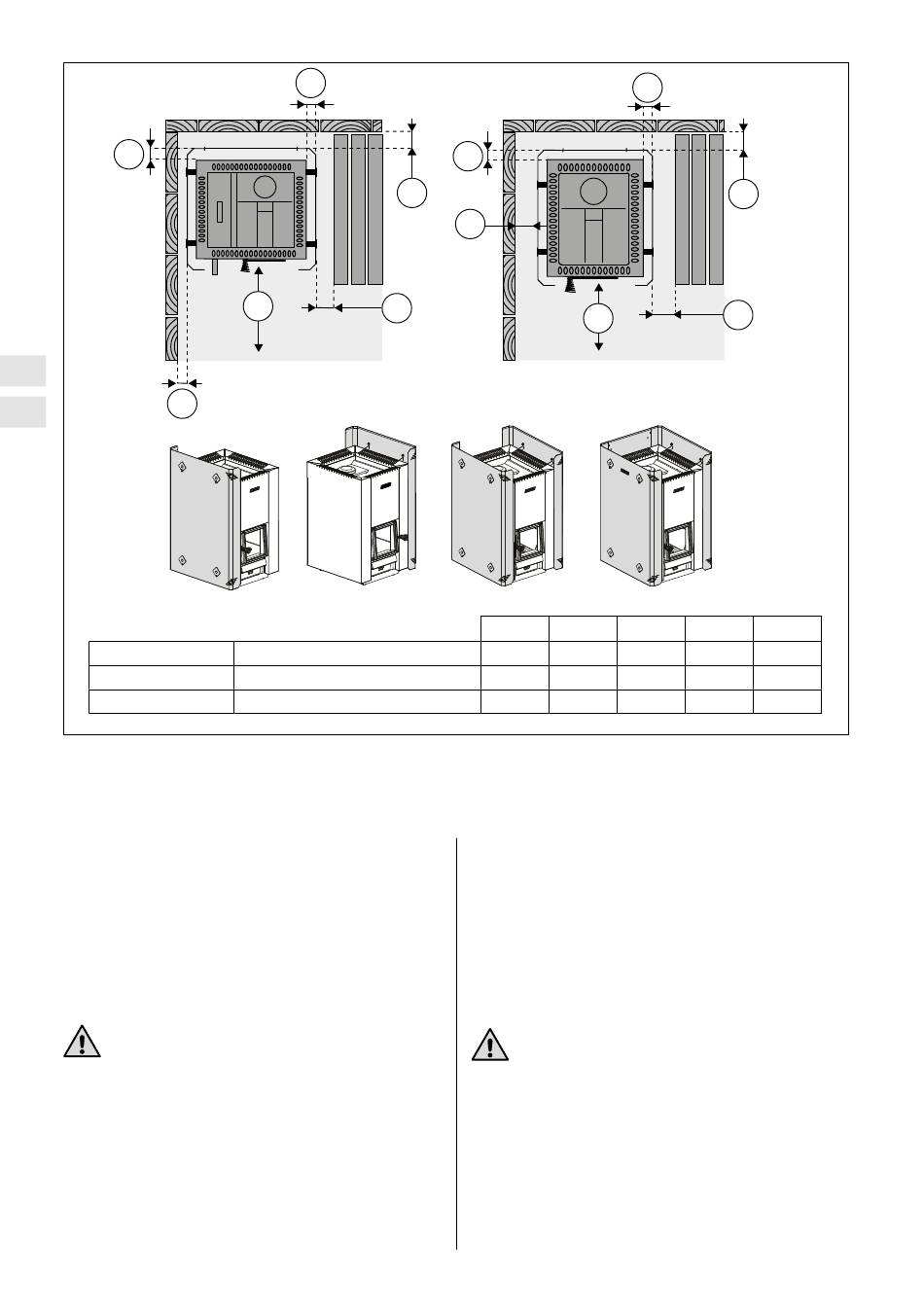

Figure 10. Safety distances with protective sheaths.
Abbildung 10. Sicherheitsabstände mit den Schutzmänteln.
3.2. Installing the Stove
3.2.1. Adjustable Legs
The adjustable legs enable the stove to be installed firmly
on an inclined floor. The adjustable range is 0–30 mm.
Unscrew the adjustable feet to an extent that allows them
to be adjusted using a wrench (17 mm) when the stove is
in position.
The adjustable feet could scratch the floor
surface if the stove is moved on the floor.
3.2.2. Connecting the Stove to a Masonry Flue
Make an opening in the fireproof wall for the flue con-
nection. Notice that the opening has to be at the correct
height, if you intend to use, for instance, a protective
bedding. The hole should be slightly larger than the flue
connecting pipe. A suitable gap around the connection
pipe is ca. 10 mm. It is advisable to round off the inner
