1. General
Choose the stove model carefully. A stove with too low
output must be heated longer and more intensely,
which will shorten the stove's life span.
Please note that non-insulated wall and ceiling surfaces
(such as brick, glass, tile and concrete surfaces) increase
the output requirement of the stove. For every square
meter of such wall and ceiling surface you should calculate
an additional 1.2 m3 volume. If the sauna walls are made
of massive log, the volume must be multiplied by 1.5.
Examples:
•
A 10 m3 sauna room with a brick wall 2 m high and
2 m wide is equivalent to a sauna room of approxi-
EN
mately 15 m3.
•
A 10 m3 sauna room with a glass door is equivalent to
DE
a sauna room of approximately 12 m3.
•
A 10 m3 sauna room with massive log walls is equiva-
lent to a sauna room of approximately 15 m3.
The dealer or our factory representative can assist you in
choosing the stove if needed. You can also visit our website
www.harvia.com for further details.
1.1 Stove Parts
12
5
6

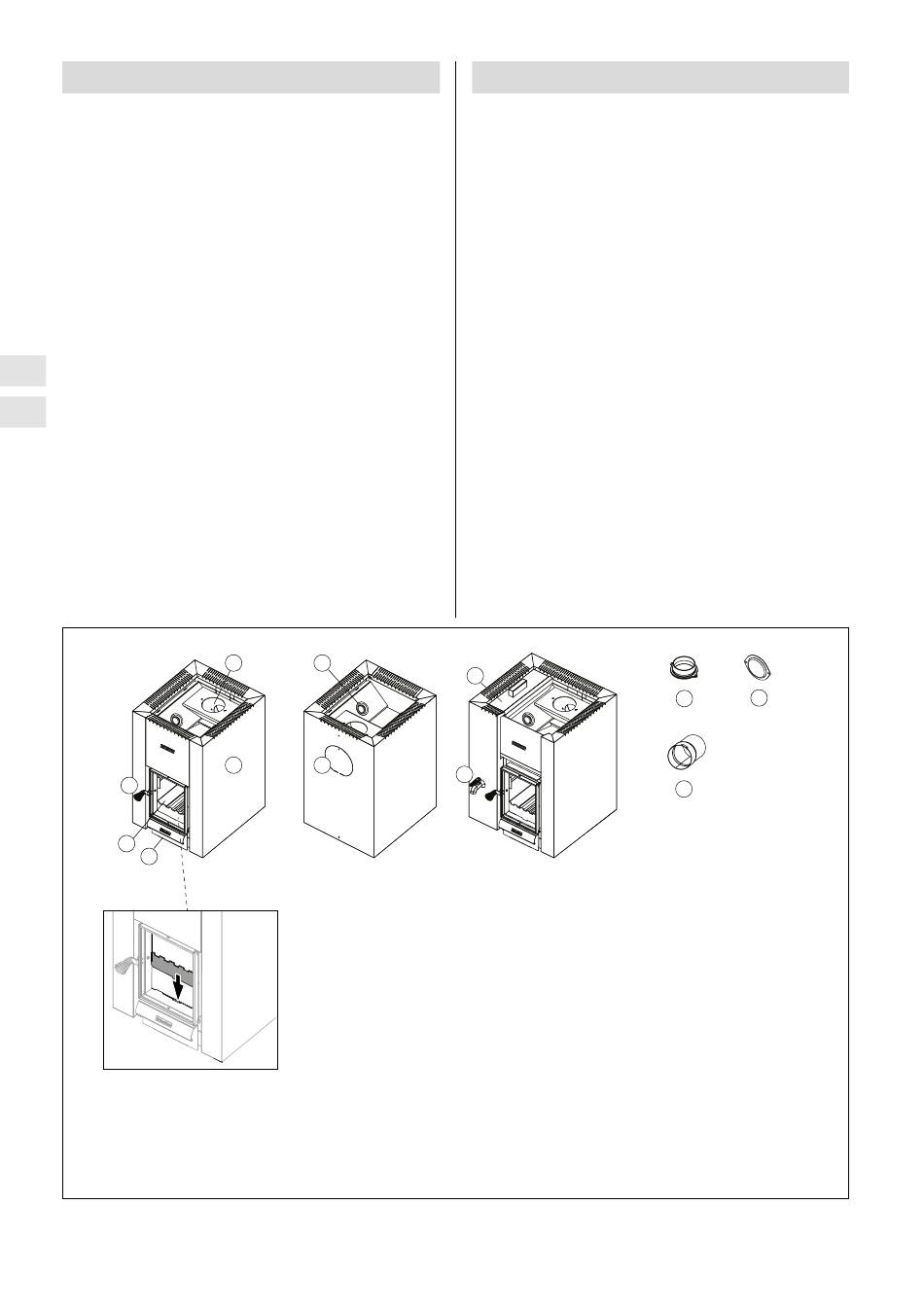

Figure 1. Stove parts.
Abbildung 1. Ofenteile.
28
3
4
1
2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. Blocking plug
11. Flue connection pipe
12. Handle
1. ALLGEMEINES
Wählen Sie den Ofen sorgsam nach seiner Leistung
aus. Wenn die Heizleistung zu gering ist, muss der
Ofen länger und intensiver beheizt werden, was seine
Lebensdauer verkürzt.
Beachten Sie bitte, dass nicht isolierte Wände und Dach-
oberflächen (wie zum Beispiel Ziegel, Glas, Kacheln und
Betonoberflächen) die Leistungsanforderungen des Ofens
erhöhen. Für jeden Quadratmeter einer solchen Wand- oder
Dachoberfläche sollten Sie zusätzliche 1,2 m3 Volumen
berechnen. Wenn die Saunawände aus Massivholz bestehen,
muss das Volumen mit 1,5 multipliziert werden. Beispiele:
•
Eine 10 m3 große Saunakabine mit einer 2 m breiten
und 2 m hohen Steinwand entspricht einer Sauna-
kabine von etwa 15 m3.
•
Eine 10 m3 große Saunakabine mit einer Glastür ent-
spricht einer Saunakabine von etwa 12 m3.
•
Eine 10 m3 große Saunakabine mit Massivholzwän-
den entspricht einer Saunakabine von etwa 15 m3.
Wenn Sie wünschen, kann Ihnen Ihr Händler oder Vertreter
des Herstellers bei der Auswahl des Ofens helfen. Weitere
Informationen finden Sie auch auf unserer Website unter
www.harvia.com.
1.1. Ofenteile
7
8
Stove body
Rear connection opening
Upper connection opening
Soot opening
Stove door
Ash box
Water tank
Water tap
Flue pipe connector
10
9
11
1.
Ofenkorpus
2.
Hintere Anschlussöffnung
3.
Obere Anschlussöffnung
4.
Rußöffnung
5.
Ofentür
6.
Aschekasten
7.
Wassertank
8.
Wasserhahn
9.
Anschluss für Abgasrohr
10. Blockierstecker
11. Verbindungsrohr
12. Griff
