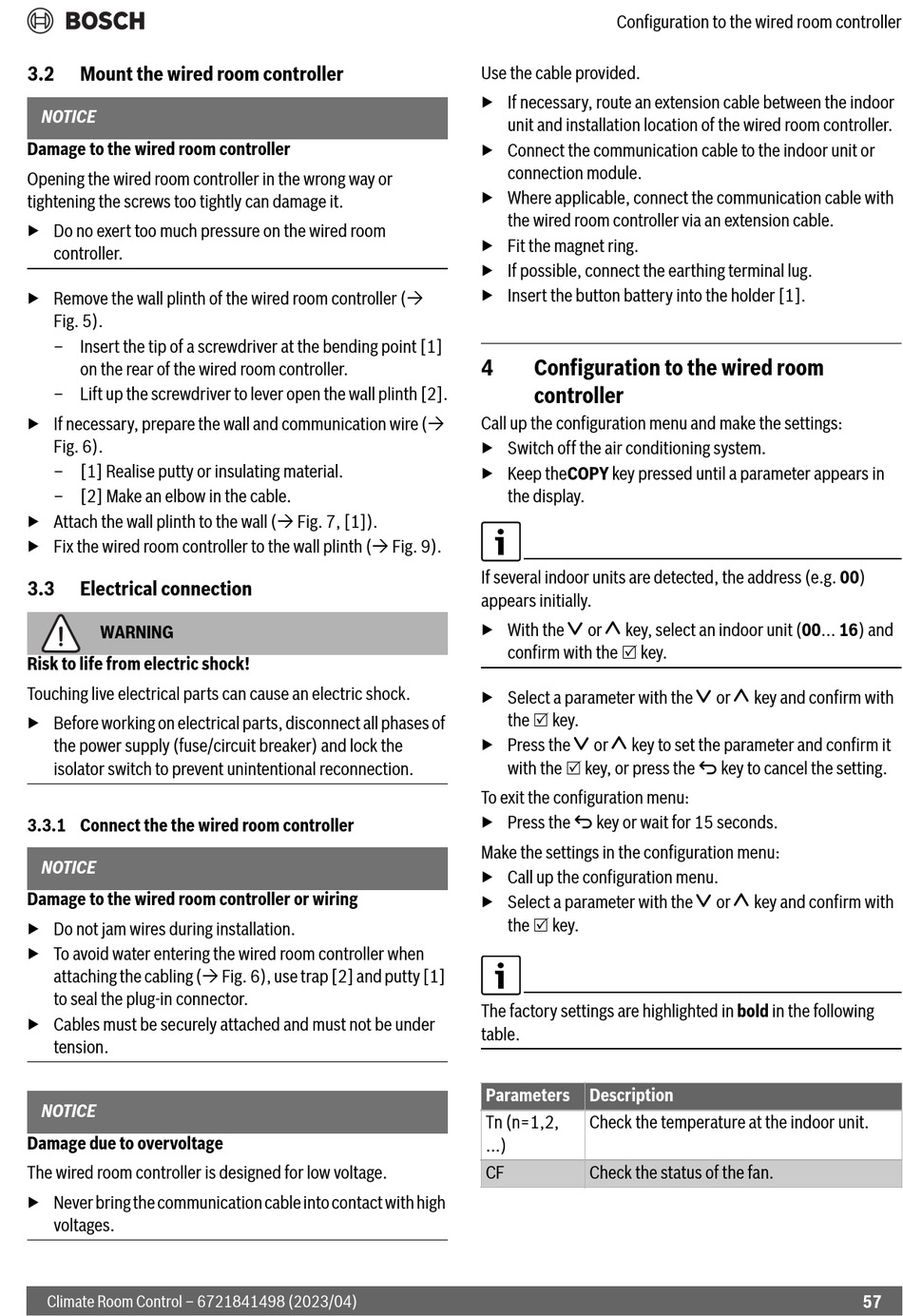

Mount the wired room controller
NOTICE
Damage to the wired room controller
Opening the wired room controller in the wrong way or
tightening the screws too tightly can damage it.
▶ Do no exert too much pressure on the wired room
controller.
▶ Remove the wall plinth of the wired room controller (
Fig. 5).
– Insert the tip of a screwdriver at the bending point [1]
on the rear of the wired room controller.
– Lift up the screwdriver to lever open the wall plinth [2].
▶ If necessary, prepare the wall and communication wire (
Fig. 6).
– [1] Realise putty or insulating material.
– [2] Make an elbow in the cable.
▶ Attach the wall plinth to the wall ( Fig. 7, [1]).
▶ Fix the wired room controller to the wall plinth ( Fig. 9).
3.3
Electrical connection
WARNING
Risk to life from electric shock!
Touching live electrical parts can cause an electric shock.
▶ Before working on electrical parts, disconnect all phases of
the power supply (fuse/circuit breaker) and lock the
isolator switch to prevent unintentional reconnection.
3.3.1 Connect the the wired room controller
NOTICE
Damage to the wired room controller or wiring
▶ Do not jam wires during installation.
▶ To avoid water entering the wired room controller when
attaching the cabling ( Fig. 6), use trap [2] and putty [1]
to seal the plug-in connector.
▶ Cables must be securely attached and must not be under
tension.
NOTICE
Damage due to overvoltage
The wired room controller is designed for low voltage.
▶ Never bring the communication cable into contact with high
voltages.
Climate Room Control – 6721841498 (2023/04)
Configuration to the wired room controller
Use the cable provided.
▶ If necessary, route an extension cable between the indoor
unit and installation location of the wired room controller.
▶ Connect the communication cable to the indoor unit or
connection module.
▶ Where applicable, connect the communication cable with
the wired room controller via an extension cable.
▶ Fit the magnet ring.
▶ If possible, connect the earthing terminal lug.
▶ Insert the button battery into the holder [1].
4
Configuration to the wired room
controller
Call up the configuration menu and make the settings:
▶ Switch off the air conditioning system.
▶ Keep theCOPY key pressed until a parameter appears in
the display.
If several indoor units are detected, the address (e.g. 00)
appears initially.
▶ With the / or . key, select an indoor unit (00... 16) and
confirm with the  key.
▶ Select a parameter with the / or . key and confirm with
the  key.
▶ Press the / or . key to set the parameter and confirm it
with the  key, or press the d key to cancel the setting.
To exit the configuration menu:
▶ Press the d key or wait for 15 seconds.
Make the settings in the configuration menu:
▶ Call up the configuration menu.
▶ Select a parameter with the / or . key and confirm with
the  key.
The factory settings are highlighted in bold in the following
table.
Parameters
Description
Tn (n=1,2,
Check the temperature at the indoor unit.
...)
CF
Check the status of the fan.
57
