General information
Product overview
This instrument counts airborne particles with a laser diode light source and collection optics. Refer
to Figure 1. Room air is pulled through the particle counter by an attached, external vacuum
system.
Multiple instruments can be installed at different locations in a clean room to monitor the air
quality. Count data is sent to the user-supplied central monitoring software through the applicable
communication protocols. The central monitoring software is used to remotely operate the
instrument.
The sensor flow path is resistant to vaporous hydrogen peroxide (VHP) for VHP-based standard
clean room disinfection and cleaning cycles.

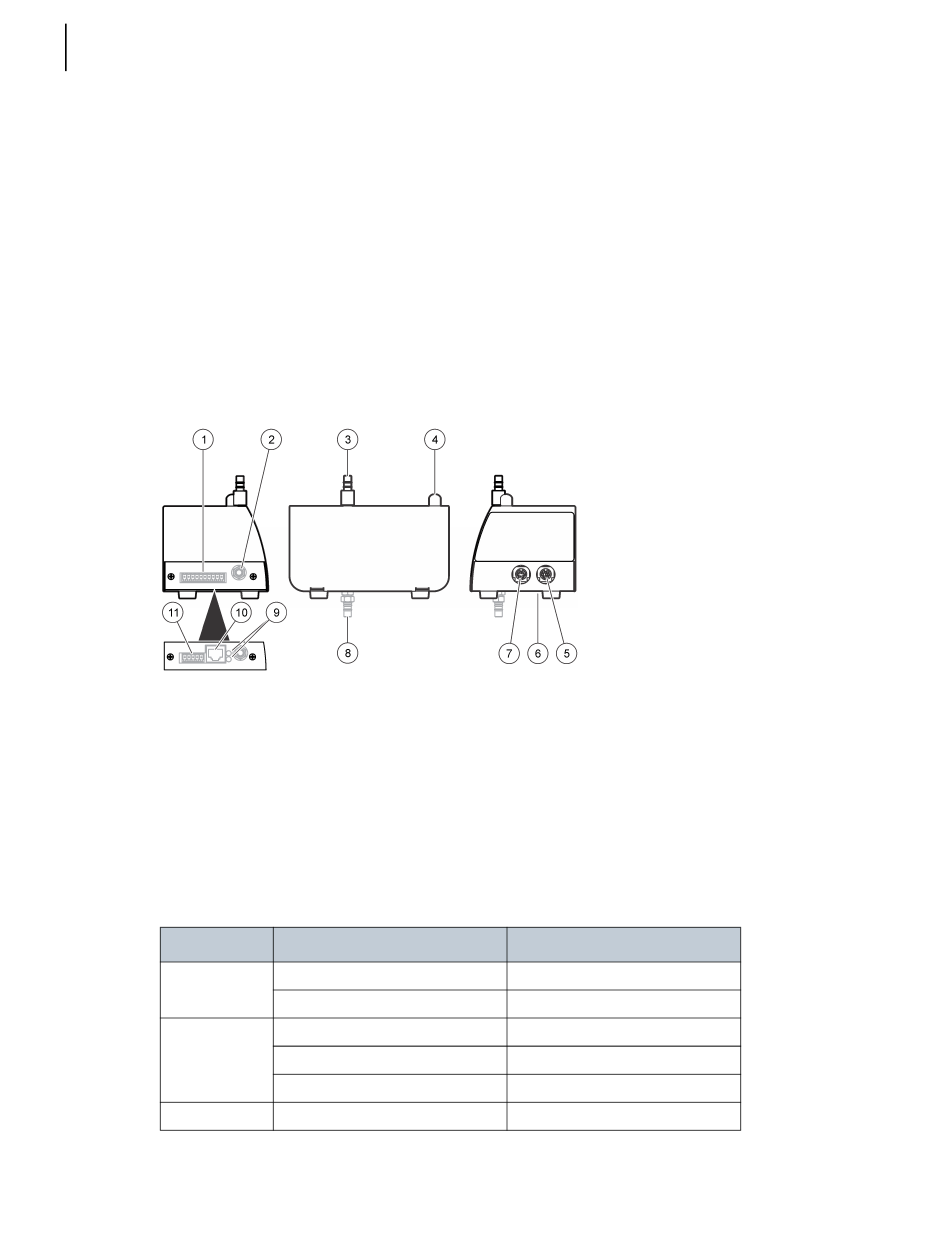

Figure 1 Product overview
1. Power input and communication connector, 10-pin
2. Vacuum source fitting (or quick-connect fitting)
3. Sample air inlet fitting
4. Status indicator light
5. Service port and optional light stack port
6. DIP switch, network address
a. All units except Ethernet
b. Ethernet units only
Table 1 Status indicator light
Color
Green
Blue
Red
6 / 32
(Table 1)
a
Indication
Flashing (3 seconds)
On
On
One short flash, one long flash
Flashing
On or flashing
a 7. Relative humidity (RH) and temperature
sensor port
8. Vacuum source fitting (alternate location)
9. Connection indicator lights
10. Ethernet RJ45 connector
11. Power input connector, 5-pin
System status
Normal, sampling
Normal, not sampling
Sensor failure
Air flow failure
Communication failure
Count alarm
b
(Table 2)
b
b
DOC026.97.80340, Edition 4
