MET ONE 6000: 6003, 6005, 6013, 6015 (English)
Installation

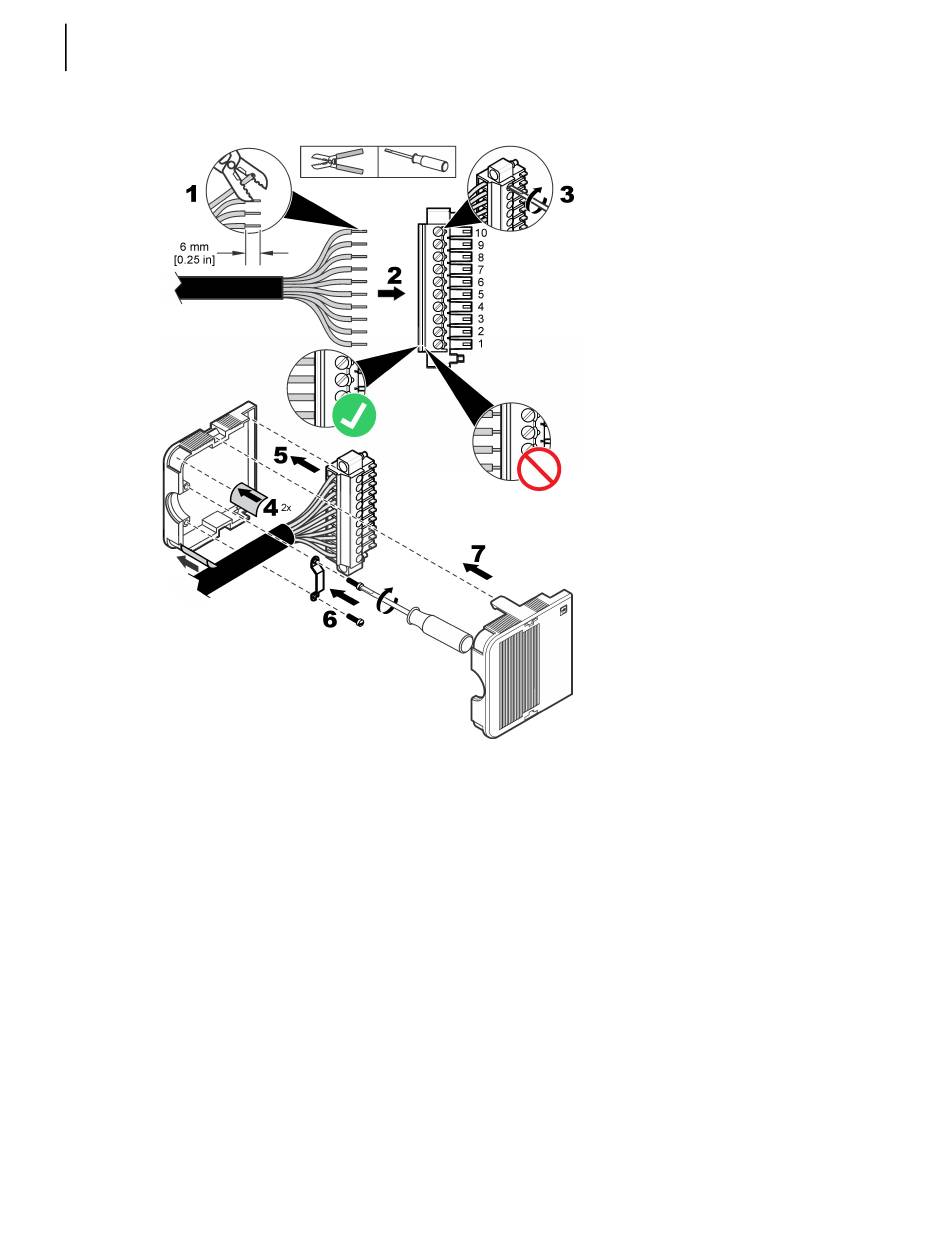

Figure 10 10-pin connector wiring
Install serial communications
Refer to Figure 8
or pulse).
Network wiring
Up to 32 instruments (12 K load each) can be included in a RS485 (EIA-485) network with RS485
Modbus or FXB communication. Use a high-grade wire for serial communications such as Belden
9841. The manufacturer recommends that the length of the network is not more than 1200 m (3937
ft).
Figure 11 shows a typical network wiring diagram.
16 / 32
and Table 6 to connect an instrument with serial communication (RS485, RS232
DOC026.97.80340, Edition 4
