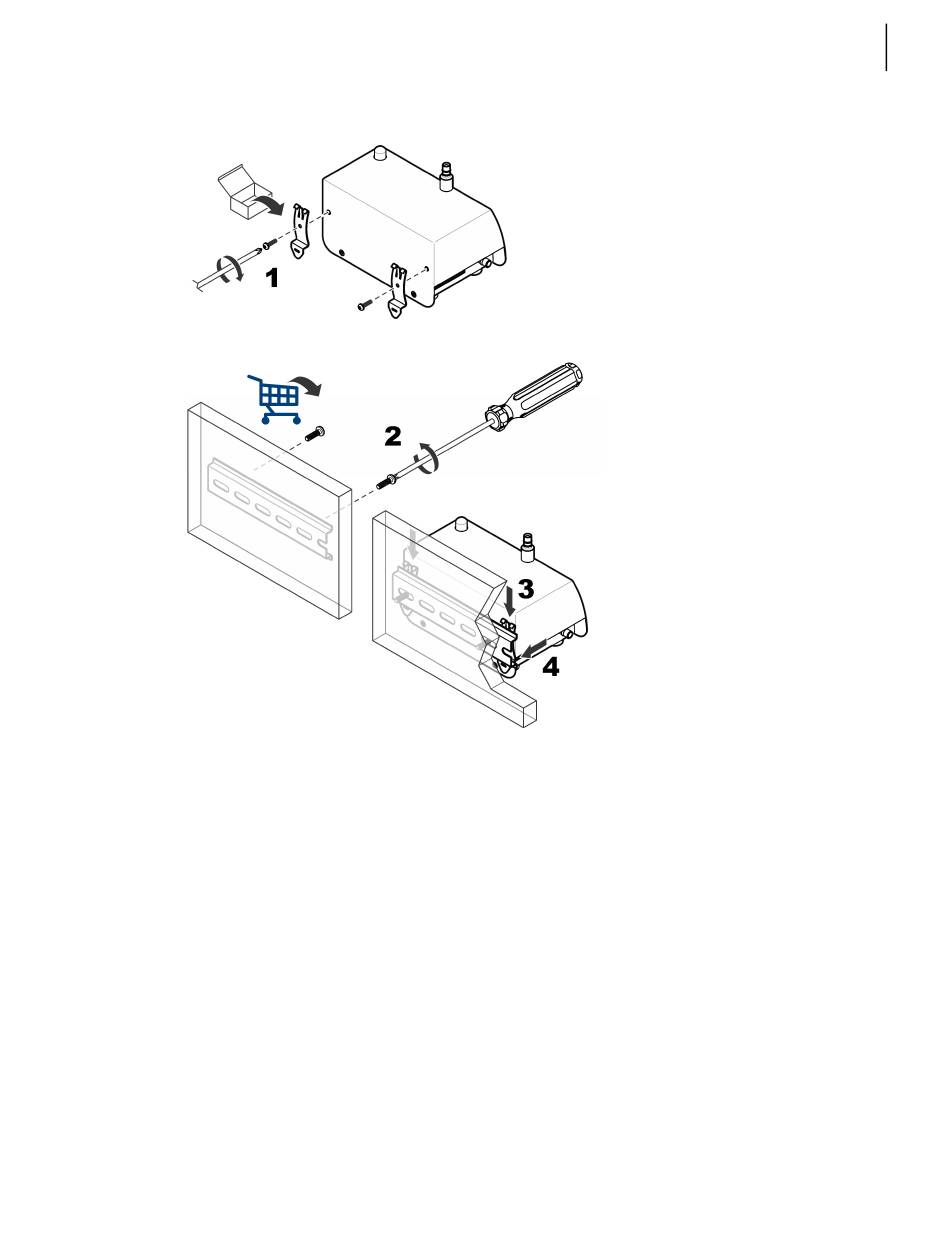

Figure 5 DIN rail installation
Install the sample probe
Refer to Sample probe guidelines
instrument and to get a representative sample of the area. The position of the sample (isokinetic)
probe is important for count accuracy.
Sample probe options
Optional kits are available for sample probe installation. Refer to
• Direct mount—No kit is necessary. The sample probe is installed on a short piece of tubing
directly on top of the sample air inlet fitting on the instrument. Use direct mount installation
when the instrument can be put in the location where the sample is collected. Use the direct
mount installation to keep particle loss to a minimum.
• Wall mount, 90 degree—The probe is connected to a stainless steel tube (90 degree) and a wall
bracket.
• T-type wall bracket—The sample probe is installed in a wall bracket. The tubing is cut to connect
the probe to the counter.
DOC026.97.80340, Edition 4
MET ONE 6000: 6003, 6005, 6013, 6015 (English)
before the installation to prevent contamination of the
Installation
Figure 6.
