Startup

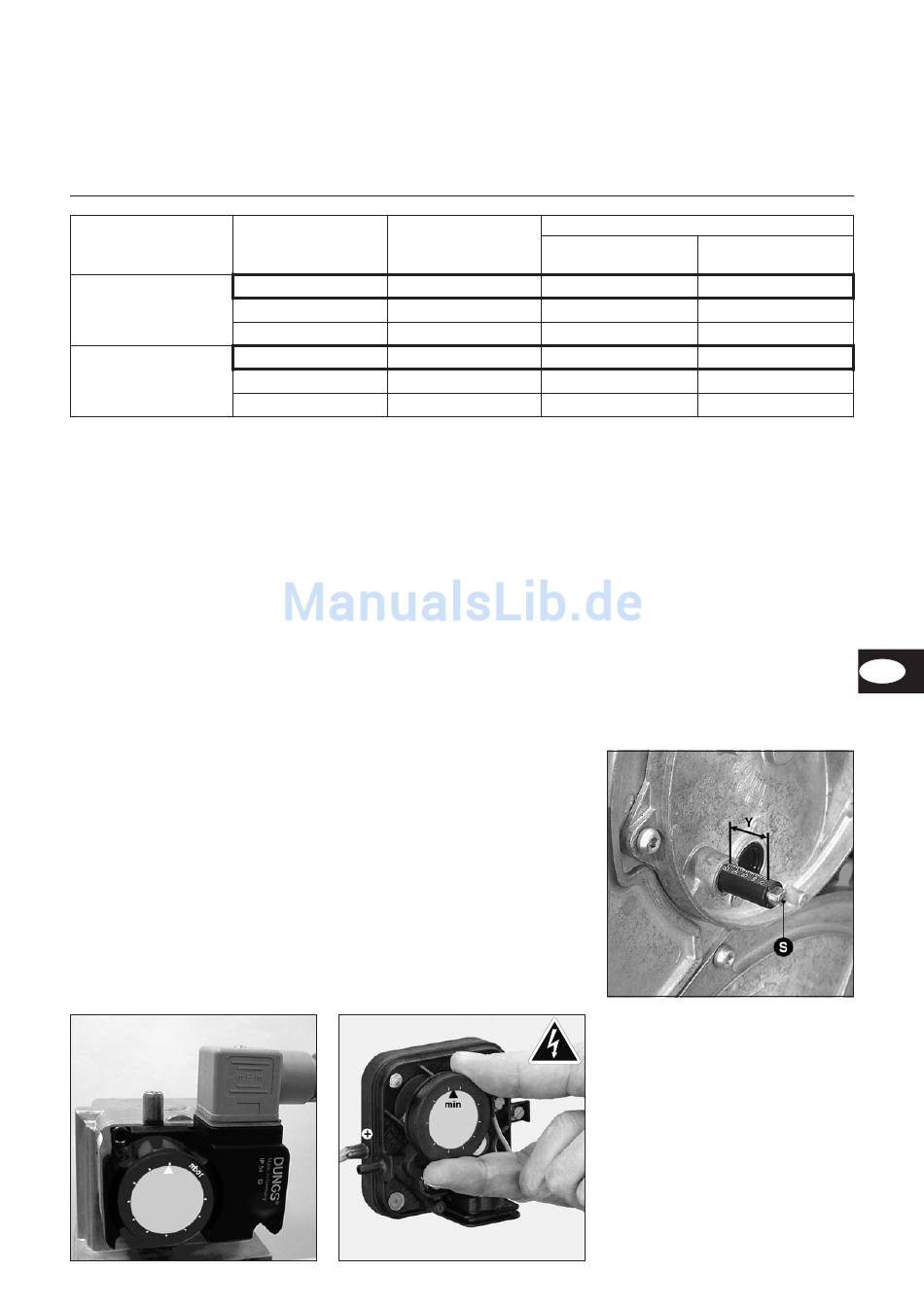

Burner adjustment data

Airflow control
Type
G 05.700 DUO PLUS
G 05.1000 DUO PLUS
The above adjustment data correspond to the default settings. Pre-delivery adjustment settings appear within a black
rectangle. These settings allow the burner to be run in normal operation, but always carry out a careful check of adjustment
settings, as individual plant conditions may require certain corrections.
The combustion air is regulated at two
points:
· On the pressure side by means of
the opening gap between the
turbulator and burner tube.
· On the suction side by means of the
air flap actuated by servomotor Y10.
Dimension
Burner power
kW
440
550
700
650
800
1000
Airflow control in the burner head
has an effect on the air quantity, as well
as on the mixing zone and the air
pressure in the burner tube. Tricks of
the screw S:
to the right = more air
–
to the left = less air
–
· Adjust dimension Y corresponding to
table of settings.
03/2005 - Art. Nr. 13 018 104A
Position of the air flap (°)
Y
Ignition load
mm
Cam III
20 10°
20 10°
20 10°
20 10°
30 10°
40 10°
Adjusting the gas pressure switch
· Remove transparent cover.
· Settings require the use of an
adjustment disk with a graduated
circular dial and an index.
· Provisionally adjust air-pressure
switch to minimum setting.
Adjusting the air-pressure switch
· Remove transparent cover.
· Settings require the use of an
adjustment disk with a graduated
circular dial and an index.
· Provisionally adjust air-pressure
switch to minimum setting.
Full-load
Cam I
25°
40°
50°
40°
60°
90°
