Startup
Gas pressure switch / air pressure switch adjustment

Checking for correct functioning

Checking for correct functioning
The flame-monitor should be checked
for safe and reliable functioning before
initial startup, during regular servicing
and after any extended shutdown
period.
Startup attempt with closed gas
–
valve: Note that the control unit
MUST go into malfunction mode at
the end of the safety period.
Normal startup - if burner is in
–
operation, shut gas valve: after the
flame goes out, the control unit must
go into fault mode!
38

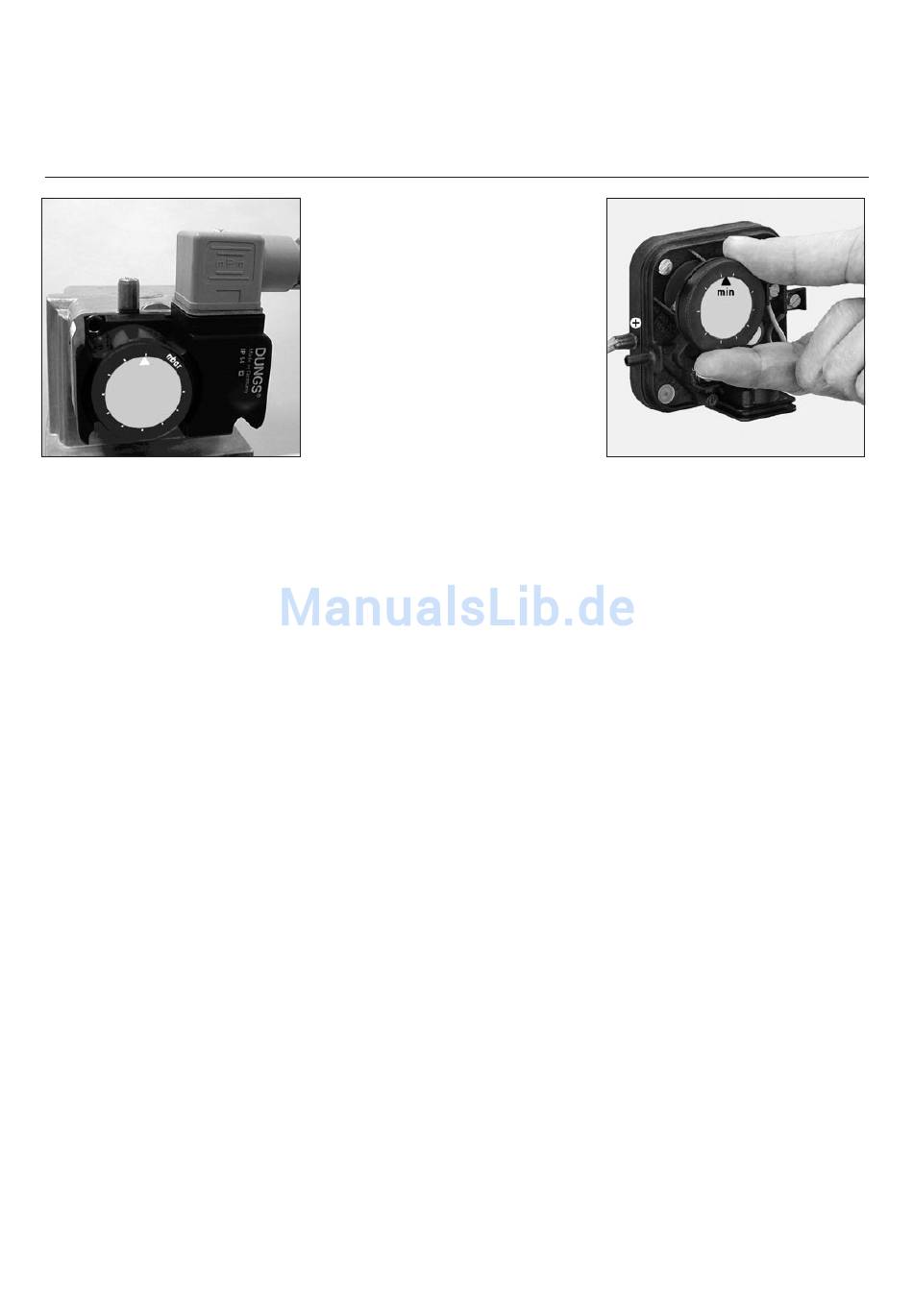

Adjusting the gas pressure switch
· To adjust the shutoff pressure: Remove
cover of the gas pressure switch.
· Activate burner and adjust gas
pressure upstream of valve assembly
by turning the ball valve until the
desired shutoff pressure is set.
· Turn the dial clockwise until the gas
pressure switch shuts down the burner.
Adjusting the air pressure switch
· Set burner at low-load.
· Turn the dial clockwise until the air
pressure switch shuts down the
burner.
· Set air pressure switch at 70% of
shutdown value.
Normal startup ; interrupt
–
air-monitoring contact during
preliminary ventilation or operation:
Control unit should go into fault
mode IMMEDIATELY.
Bypass air-pressure switch before
–
startup: Burner activates for approx.
2-3 sec., before carrying out fault
shutdown. After 10 sec., this brief
malfunction is automatically reset by
the control unit, and a second
startup attempt ensues (motor
activates for 2-3 sec.). If the LW
contact is still closed (e.g. due to
fused contact) resulting in genuine
emergency shutdown.
03/2005 - Art. Nr. 13 018 104A
However, if the LW contact has
opened within these 10 sec. (e.g.
due to decelerating motor), normal
operation ensues.
