Installation

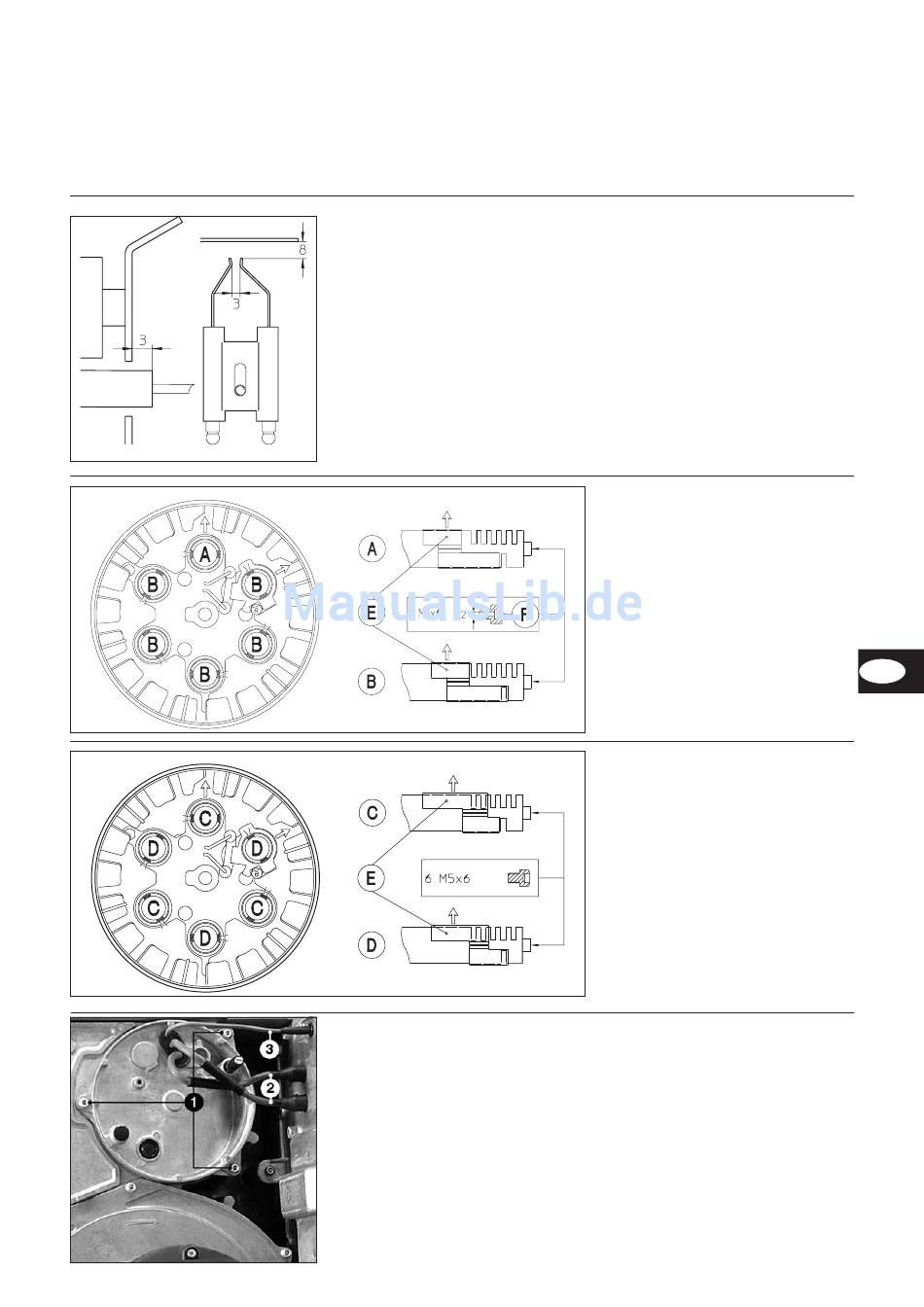

Check combustion head
Combustion head setting for natural gas/propane
Ionisation probe / Ignition electrode
Check combustion head
· Check the settings of the ignition
electrodes and of ionisation probe /
turbulator and re-adjust.
natural gas
propane gas
Fitting combustion head
· Release and remove the combustion
head cover by unscrewing the three
screws 1.
· Check the gas connection O-ring.
· Fit the combustion head and tighten
with side screw (M10 counter nut and
Allen screw).
· Fit the extension rod with 0-40 scale
(loose in accompanying pack) for
setting the turbulator.
· The extension rod must be pushed into
the steel sleeve until it makes contact.
· Pass the ignition cables 2 and
ionization cable 3 through the opening
and press in the rubber grommet.
03/2005 - Art. Nr. 13 018 104A
Recommended settings for natural
gas
On the gas diffuser marked A, keep 5
slots open towards the exterior and 1
towards the interior by sliding the
shutter/diffuser E.
Attaching the baffle using 6 M5X6
perforated screws F.
On the gas diffusers marked B, keep
5 slots open towards the exterior and
0 towards the interior by sliding the
shutters/diffusers E.
Recommended settings for propane
gas
On the gas diffusers marked A, keep 3
slots open towards the exterior and 1
towards the interior by sliding the
shutter/diffuser E.
Attaching the baffle using 6 M5X6
non-perforated screws F.
On the gas diffusers marked B, keep
3 slots open towards the exterior and
0 towards the interior by sliding the
shutters/diffusers E.
· Screw down the cover, connect the
ignition cables 2 and ionization
cable 3.
