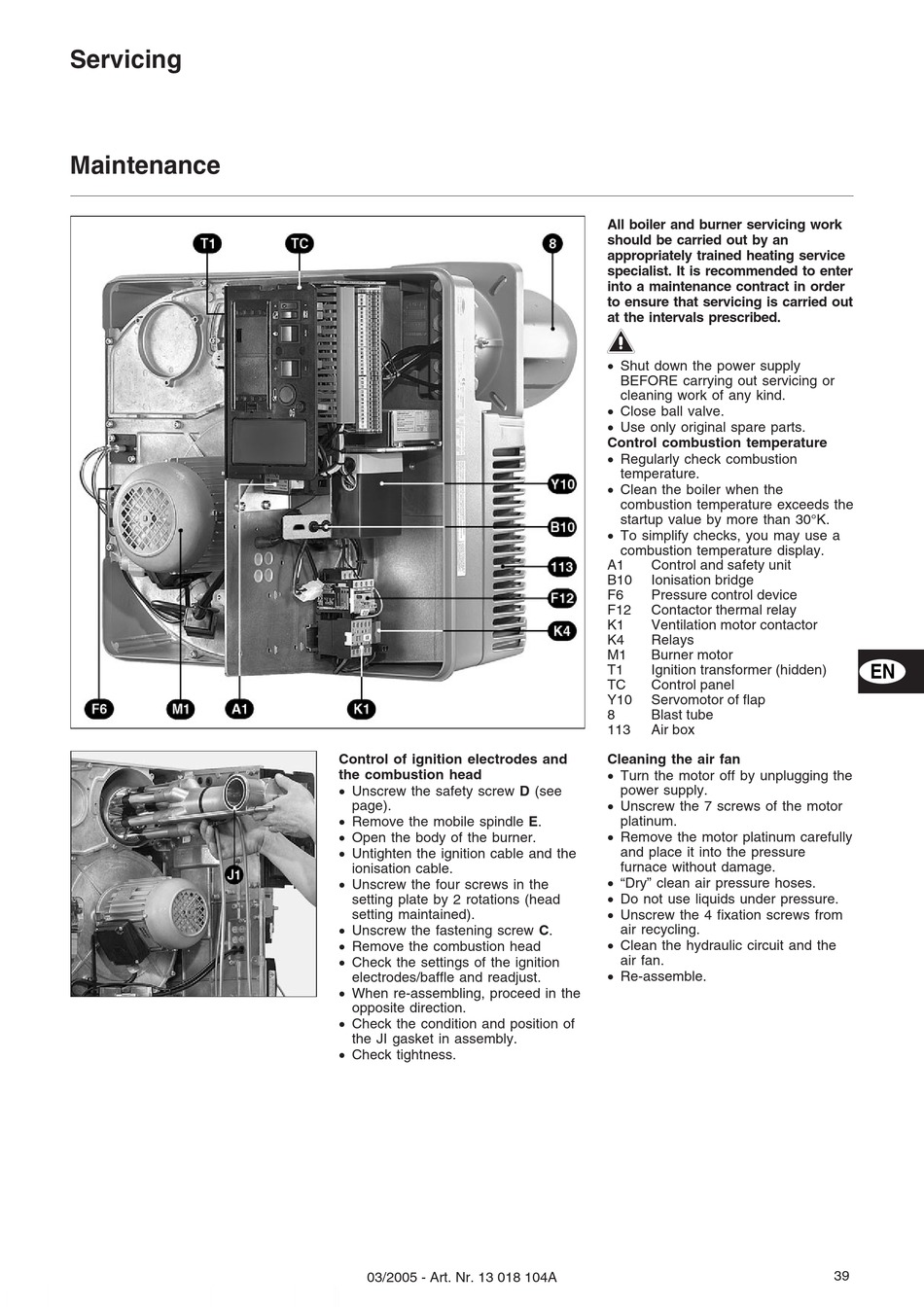

Servicing
Maintenance
Control of ignition electrodes and
the combustion head
· Unscrew the safety screw D (see
page).
· Remove the mobile spindle E.
· Open the body of the burner.
· Untighten the ignition cable and the
ionisation cable.
· Unscrew the four screws in the
setting plate by 2 rotations (head
setting maintained).
· Unscrew the fastening screw C.
· Remove the combustion head
· Check the settings of the ignition
electrodes/baffle and readjust.
· When re-assembling, proceed in the
opposite direction.
· Check the condition and position of
the JI gasket in assembly.
· Check tightness.
03/2005 - Art. Nr. 13 018 104A
All boiler and burner servicing work
should be carried out by an
appropriately trained heating service
specialist. It is recommended to enter
into a maintenance contract in order
to ensure that servicing is carried out
at the intervals prescribed.
m
· Shut down the power supply
BEFORE carrying out servicing or
cleaning work of any kind.
· Close ball valve.
· Use only original spare parts.
Control combustion temperature
· Regularly check combustion
temperature.
· Clean the boiler when the
combustion temperature exceeds the
startup value by more than 30°K.
· To simplify checks, you may use a
combustion temperature display.
A1 Control and safety unit
B10 Ionisation bridge
F6 Pressure control device
F12 Contactor thermal relay
K1 Ventilation motor contactor
K4 Relays
M1 Burner motor
T1 Ignition transformer (hidden)
TC Control panel
Y10 Servomotor of flap
8 Blast tube
113 Air box
Cleaning the air fan
· Turn the motor off by unplugging the
power supply.
· Unscrew the 7 screws of the motor
platinum.
· Remove the motor platinum carefully
and place it into the pressure
furnace without damage.
· "Dry" clean air pressure hoses.
· Do not use liquids under pressure.
· Unscrew the 4 fixation screws from
air recycling.
· Clean the hydraulic circuit and the
air fan.
· Re-assemble.
EN
