Overview

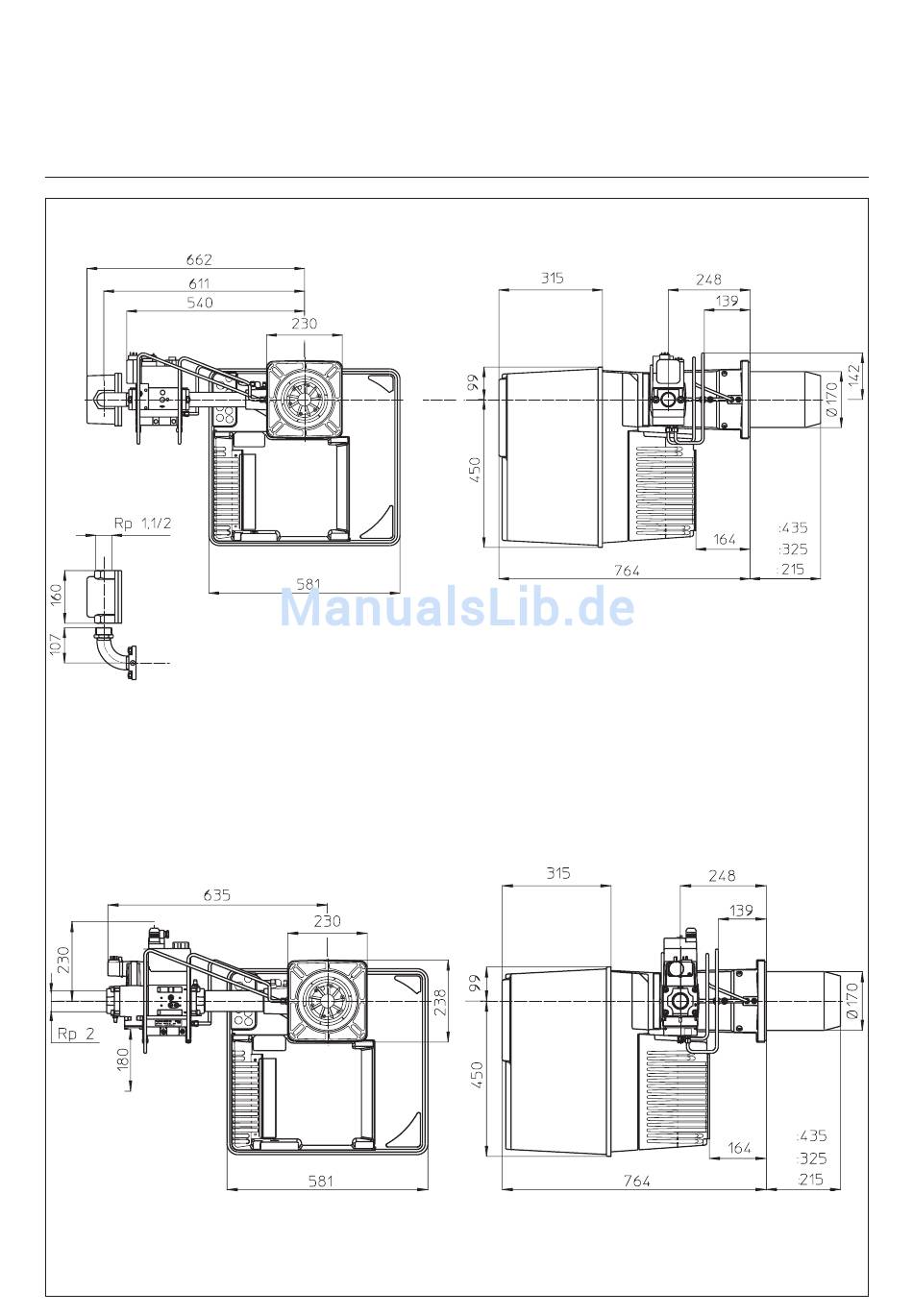

Space requirements and dimensions
G 05.700/1000 DUO PLUS
with gas ramp MBVEF 412 and MBVEF 420
26
Distances
Maintain a clear distance of at least
0.6m to each side of the burner to allow
for maintenance operations.
Distances
Maintain a clear distance of at least
0.6m to each side of the burner to allow
for maintenance operations.
03/2005 - Art. Nr. 13 018 104A
MBVEF 412 Rp 1,1/4
KL
KM
KN
Gas ramp
May be assembled on left or right.
MBVEF 420 Rp 2
Gas ramp
May be assembled on left or right.
KL
KM
KN
