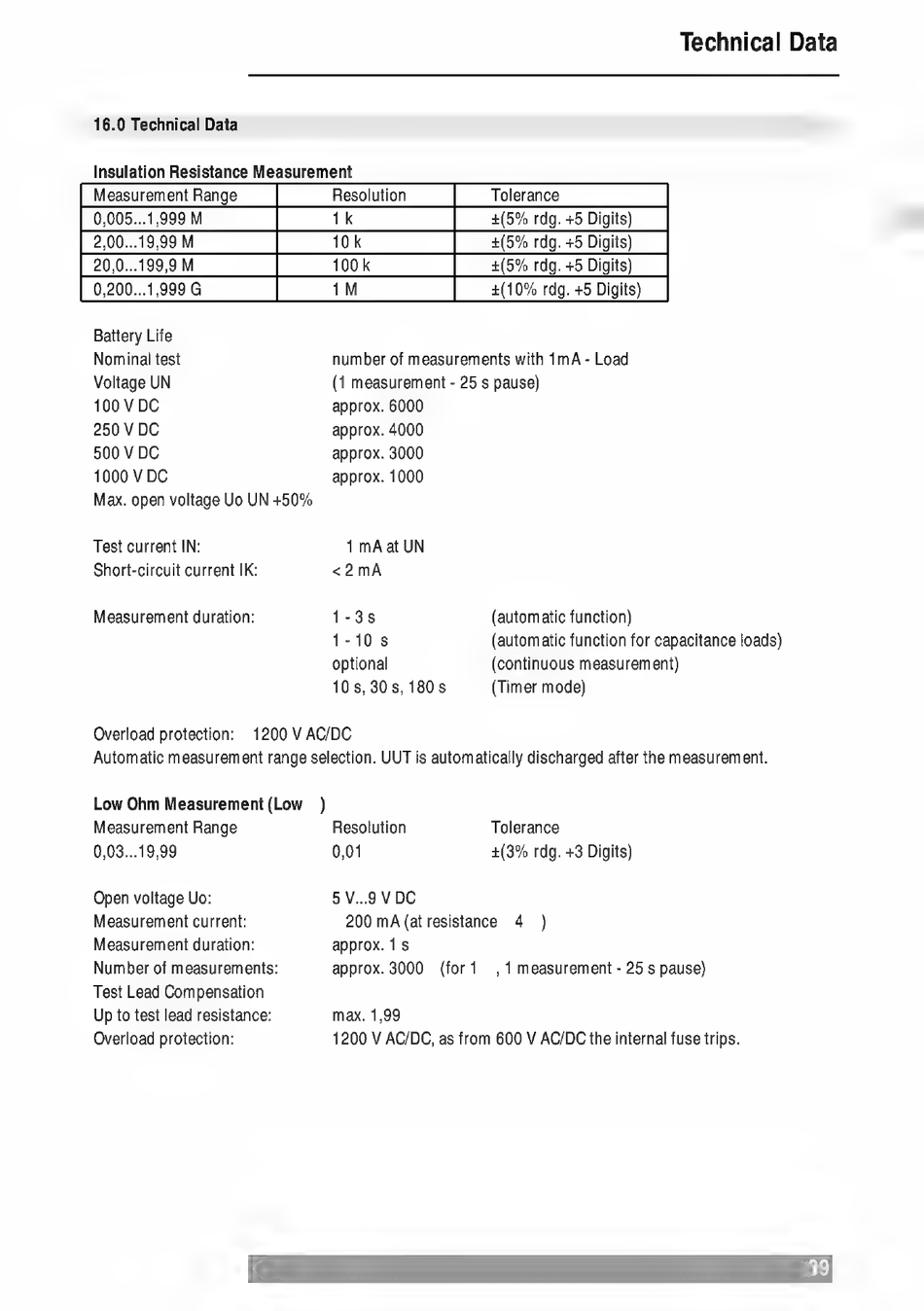

16.0 Technical Data
Insulation Resistance Measurement
Measurement Range
Resolution
Tolerance
Battery Life
Nominal test
number of measurements with 1mA - Load
Voltage UN
(1 measurement - 25 s pause)
100 VDC
approx. 6000
250 V DC
approx. 4000
500 V DC
approx. 3000
1000 V DC
approx. 1000
Max. open voltage Uo UN +50%
Test current IN:
1 mA at UN
Short-circuit current IK:
<2mA
Measurement duration:
1-38
(automatic function)
1-10 s
(automatic function for capacitance loads)
optional
(continuous measurement)
(
10 s, 30s, 180s
Timer mode)
Overload protection:
1200 V AC/DC
Automatic measurement range selection. UUT is automatically discharged after the measurement.
Low Ohm Measurement (Low
)
Measurement Range
Resolution
Tolerance
0,03...19,99
0,01
+(3% rdg. +3 Digits)
Open voltage Uo:
5 V...9
VDC
Measurement current:
200 mA (at resistance
4
)
Measurement duration:
approx.
1s
Number of measurements:
approx. 3000
(for1
, 1 measurement - 25 s pause)
Test Lead Compensation
Up to test lead resistance:
max. 1,99
Overload protection:
1200 V AC/DC, as from 600 V AC/DC the internal fuse trips.
