Maintenance
2024/11
Operating instructions Compact R | Compact K | Compact L plus

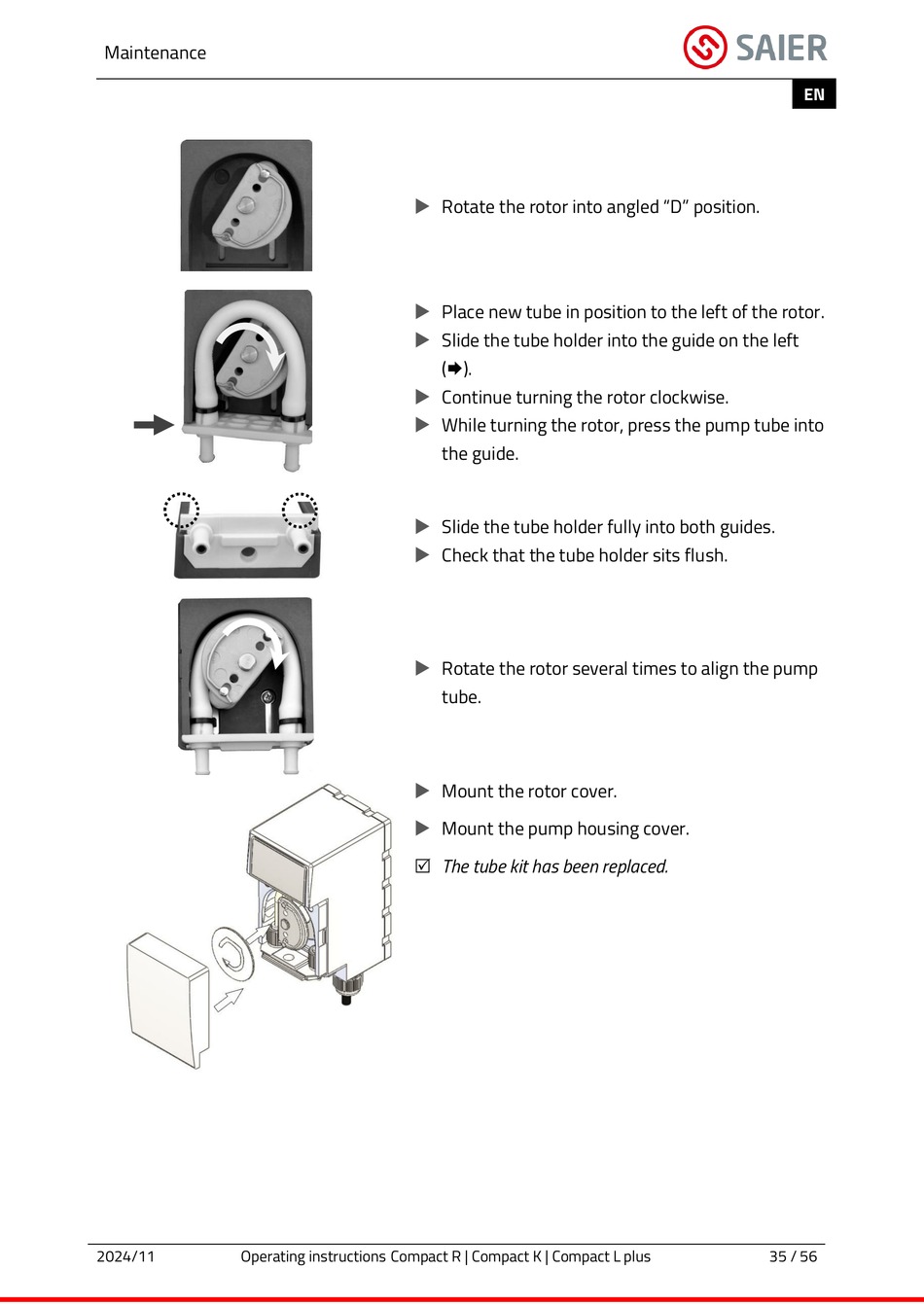

Rotate the rotor into angled "D" position.
Place new tube in position to the left of the rotor.
Slide the tube holder into the guide on the left
().
Continue turning the rotor clockwise.
While turning the rotor, press the pump tube into
the guide.
Slide the tube holder fully into both guides.
Check that the tube holder sits flush.
Rotate the rotor several times to align the pump
tube.
Mount the rotor cover.
Mount the pump housing cover.
The tube kit has been replaced.
EN
35 / 56
