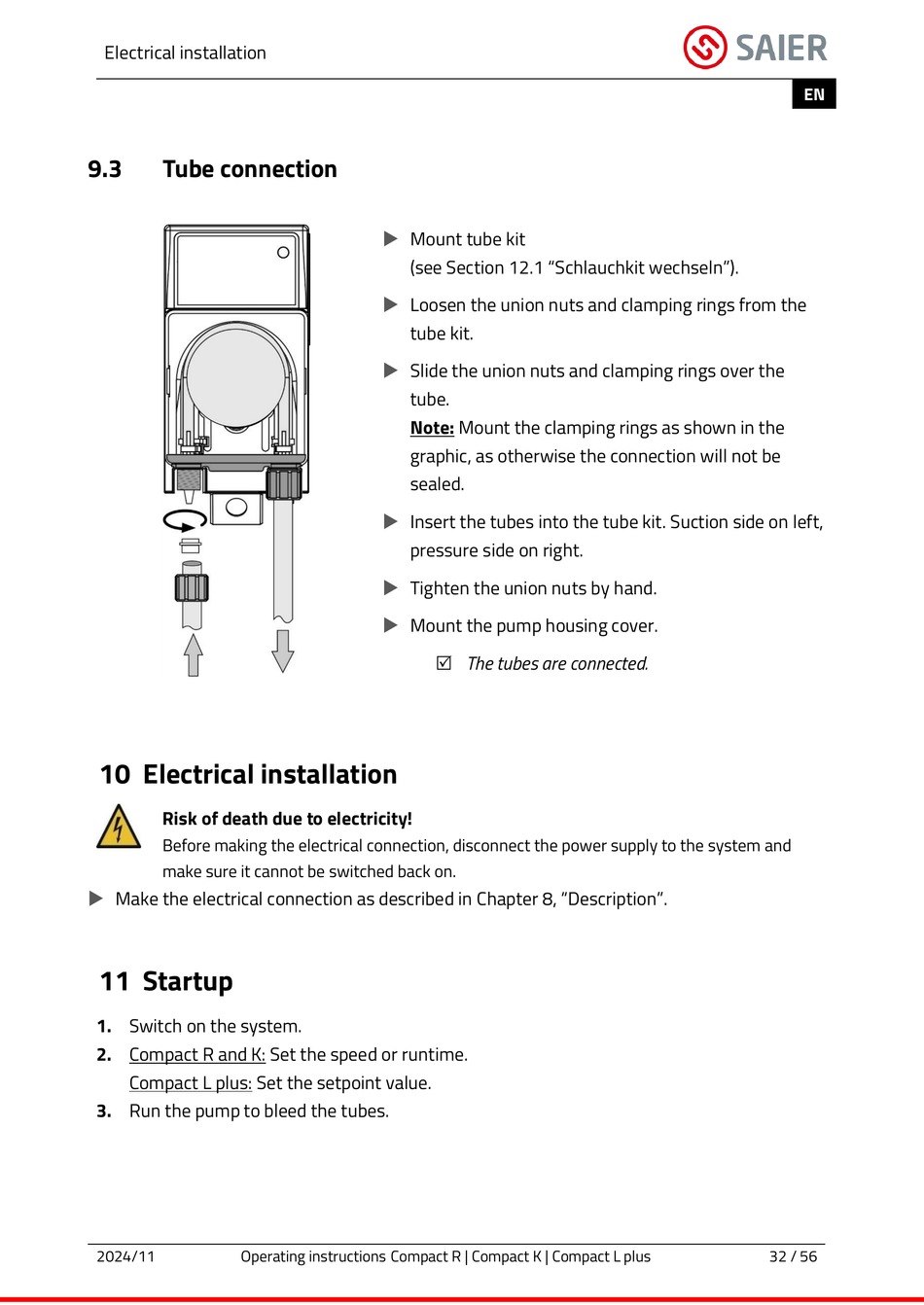

Electrical installation
9.3
Tube connection
10 Electrical installation
Risk of death due to electricity!
Before making the electrical connection, disconnect the power supply to the system and
make sure it cannot be switched back on.
Make the electrical connection as described in Chapter 8, "Description".
11 Startup
1. Switch on the system.
2. Compact R and K: Set the speed or runtime.
Compact L plus: Set the setpoint value.
3. Run the pump to bleed the tubes.
2024/11
Operating instructions Compact R | Compact K | Compact L plus

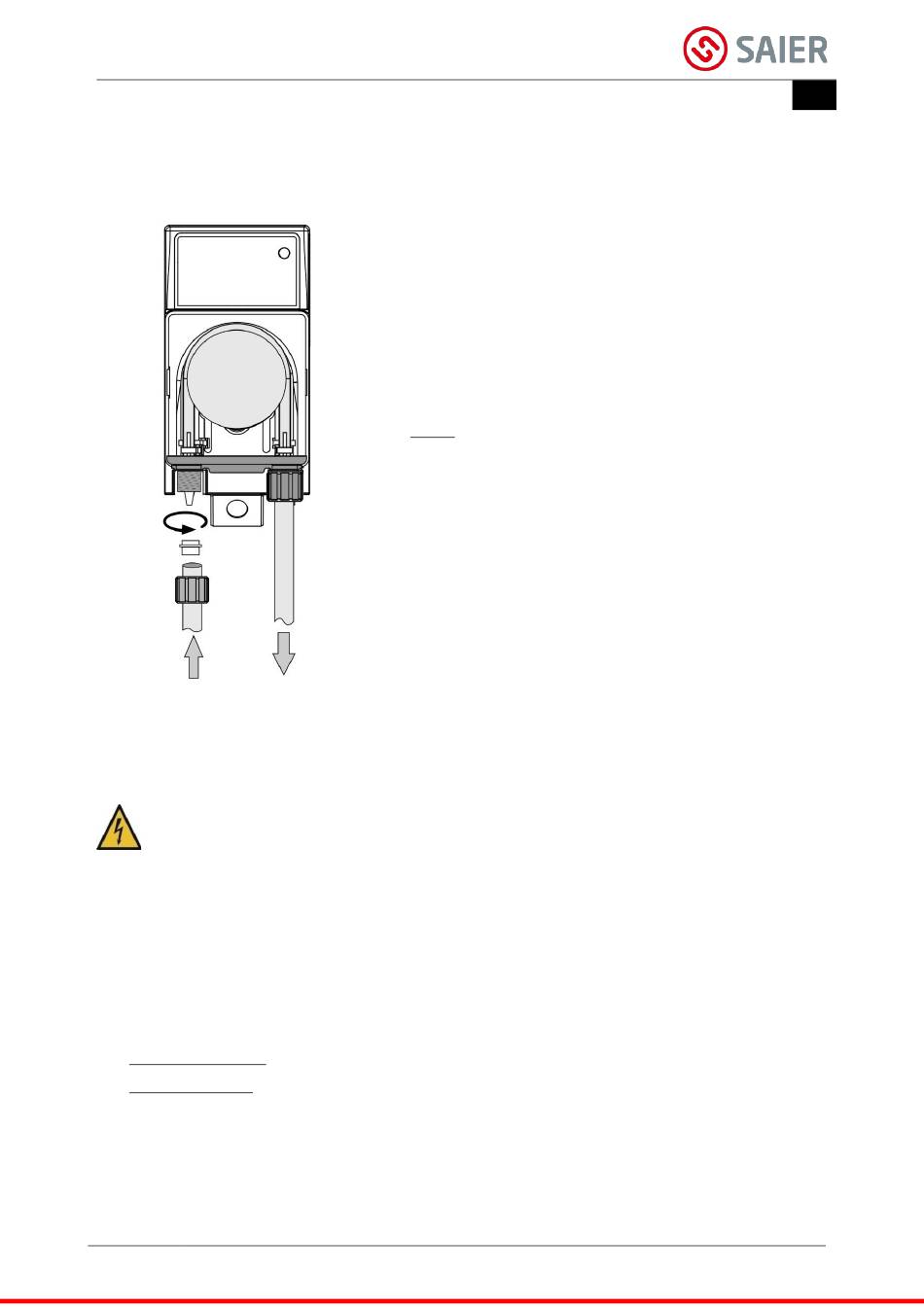

Mount tube kit
(see Section 12.1 "Schlauchkit wechseln").
Loosen the union nuts and clamping rings from the
tube kit.
Slide the union nuts and clamping rings over the
tube.
Note: Mount the clamping rings as shown in the
graphic, as otherwise the connection will not be
sealed.
Insert the tubes into the tube kit. Suction side on left,
pressure side on right.
Tighten the union nuts by hand.
Mount the pump housing cover.
The tubes are connected.
EN
32 / 56
