Description
8 Description

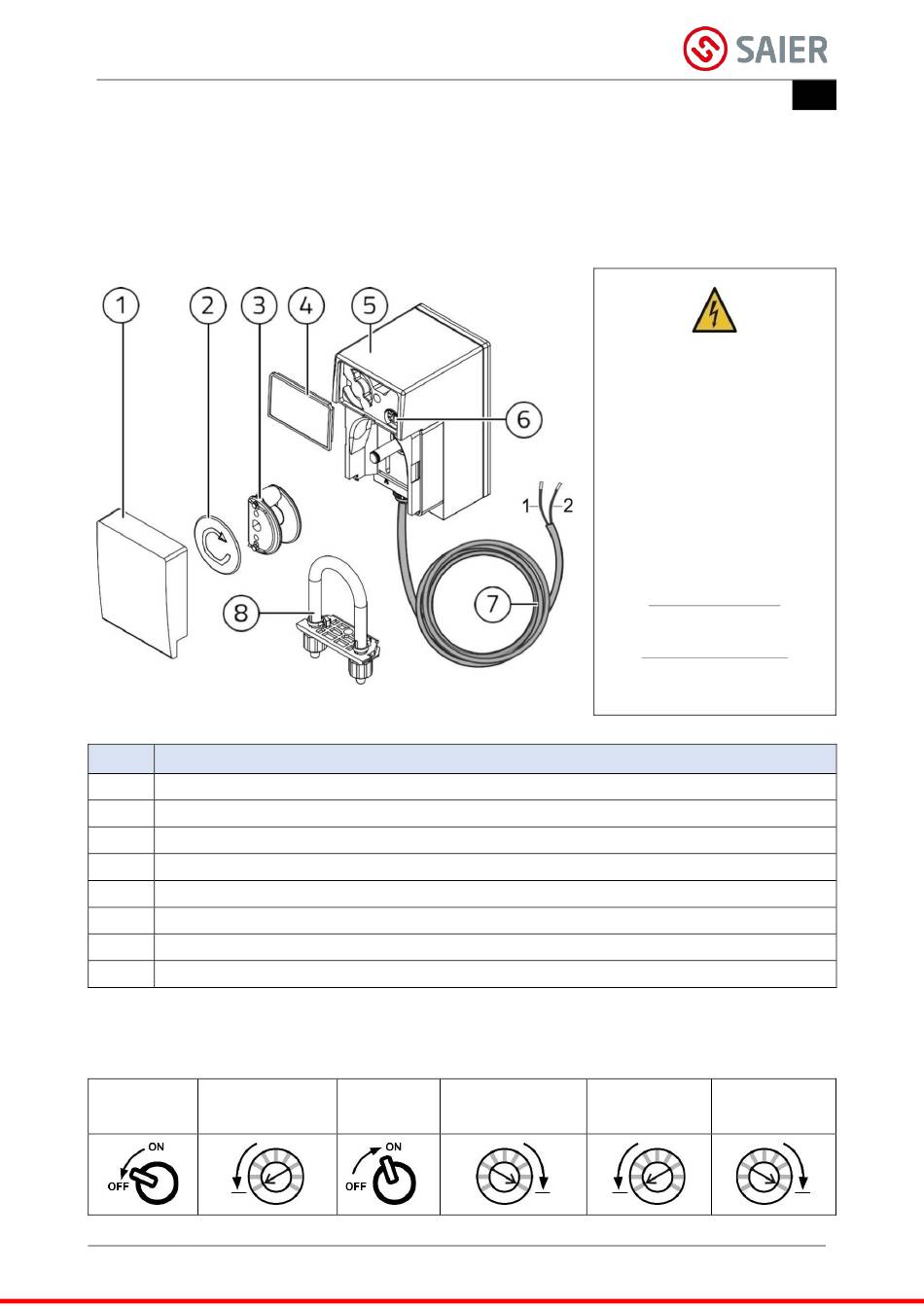

8.1 Compact R and Compact K
The runtime and speed of the Compact R and Compact K peristaltic dosing pumps can be ad-
justed.
Item Designation
1 Pump housing cover
2 Rotor cover
3 Rotor
4 Front screen
5 Pump housing
6 Potentiometer: Change operating mode, set runtime or speed
7 Connection cable
8 Tube kit
■ Change operating mode
Use the potentiometer to change the operating mode in the following steps:
System off Potentiometer to
the left
2024/11 Operating instructions Compact R | Compact K | Compact L plus
(speed ◄► runtime)
System on Potentiometer to
the right
Risk of death due to electric
shock!
Before making the electrical
connection, disconnect the
power supply to the system
and make sure it cannot be
switched
back on.
230 V connection:
Wire 1 = N, Wire 2 = L
24 V DC connection:
Wire 1 = minus
Wire 2 = plus
Potentiometer Potentiometer
to the left to the right
