Maintenance
2024/11
Operating instructions Compact R | Compact K | Compact L plus

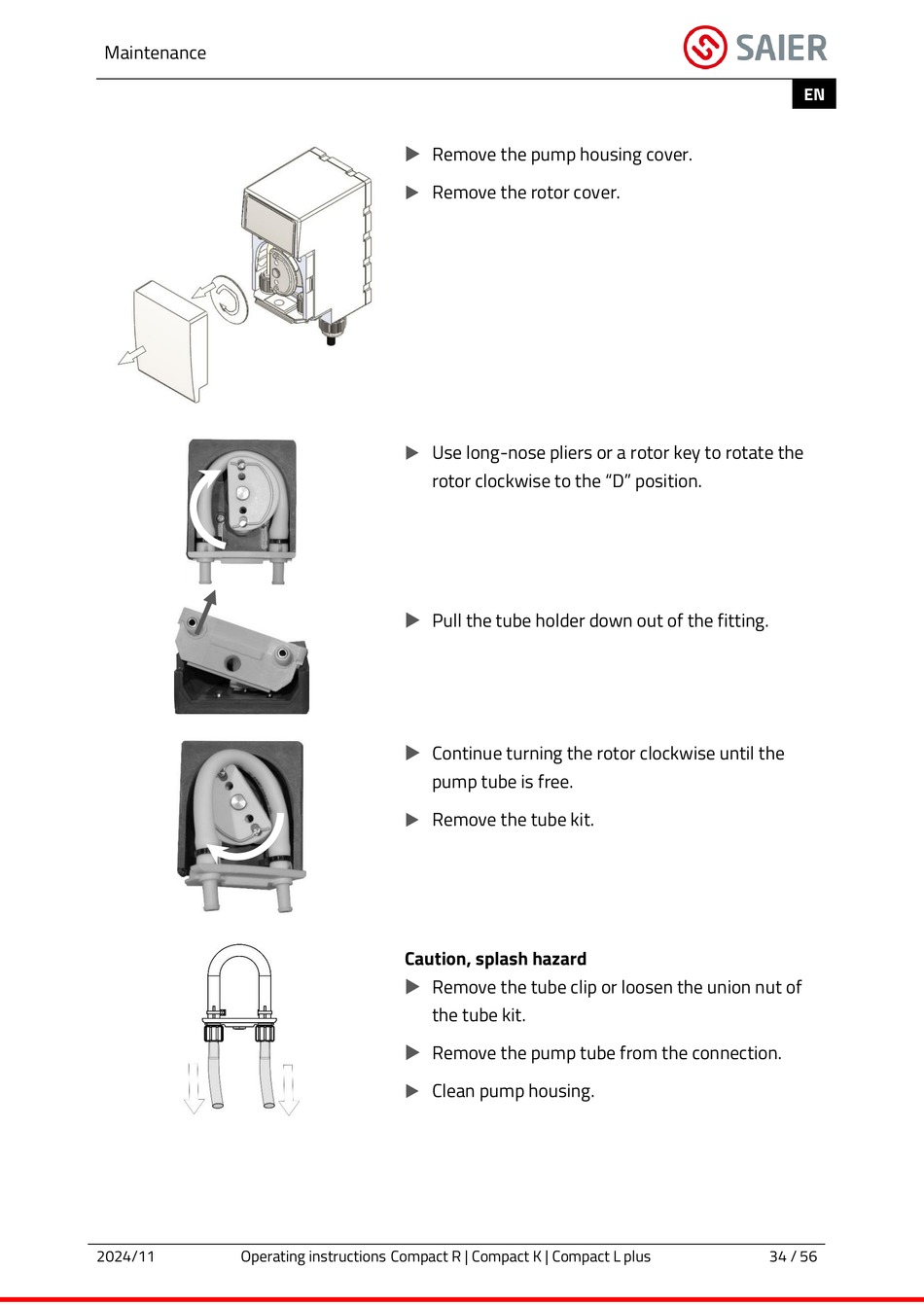

Remove the pump housing cover.
Remove the rotor cover.
Use long-nose pliers or a rotor key to rotate the
rotor clockwise to the "D" position.
Pull the tube holder down out of the fitting.
Continue turning the rotor clockwise until the
pump tube is free.
Remove the tube kit.
Caution, splash hazard
Remove the tube clip or loosen the union nut of
the tube kit.
Remove the pump tube from the connection.
Clean pump housing.
EN
34 / 56
