Description

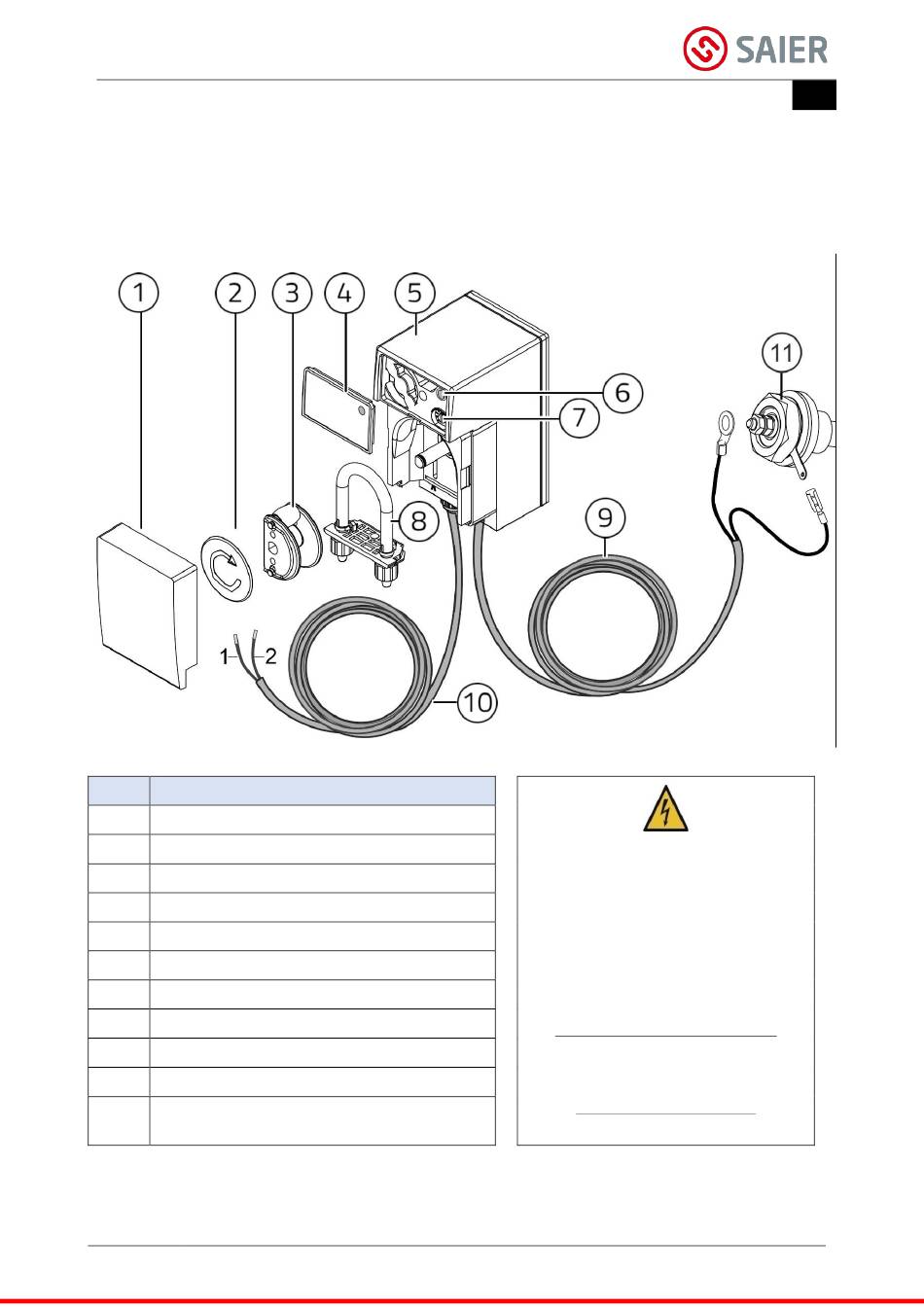

8.2 Compact L plus
With the Compact L plus peristaltic dosing pump, dosing is controlled with a conductive elec-
trode.
Item Designation
1 Pump housing cover
2 Rotor cover
3 Rotor
4 Front screen
5 Motor with pump housing
6 LED: Indicates operating status.
7 Potentiometer: Setting of setpoint value.
8 Tube kit
9 Electrode connection cable
10 Operating voltage connection cable
11 LF electrode EE 10-3/8 (0.5 to 15 mS/cm)
2024/11 Operating instructions Compact R | Compact K | Compact L plus
Risk of death due to electric shock!
Before making the electrical connec-
tion, disconnect the power supply to
the system and make sure it cannot be
switched
back on.
Operating voltage connection:
Wire 1 = N
Wire 2 = L
LF electrode connection:
See graphic
