Items supplied

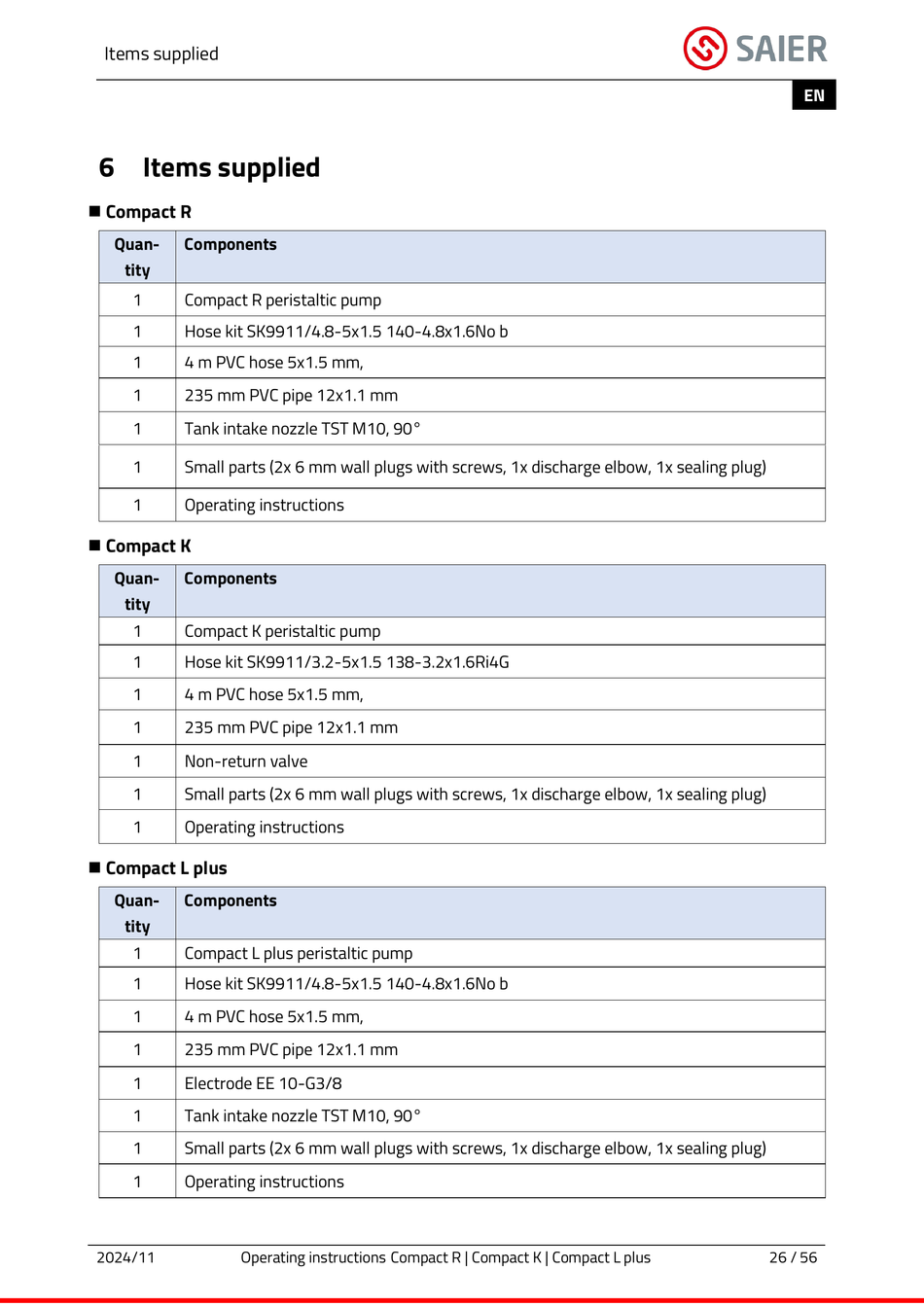

6 Items supplied
◼ Compact R
Quan- Components
tity
1 Compact R peristaltic pump
1 Hose kit SK9911/4.8-5x1.5 140-4.8x1.6No b
1 4 m PVC hose 5x1.5 mm,
1 235 mm PVC pipe 12x1.1 mm
1 Tank intake nozzle TST M10, 90°
1 Small parts (2x 6 mm wall plugs with screws, 1x discharge elbow, 1x sealing plug)
1 Operating instructions
◼ Compact K
Quan- Components
tity
1 Compact K peristaltic pump
1 Hose kit SK9911/3.2-5x1.5 138-3.2x1.6Ri4G
1 4 m PVC hose 5x1.5 mm,
1 235 mm PVC pipe 12x1.1 mm
1 Non-return valve
1 Small parts (2x 6 mm wall plugs with screws, 1x discharge elbow, 1x sealing plug)
1 Operating instructions
◼ Compact L plus
Quan- Components
tity
1 Compact L plus peristaltic pump
1 Hose kit SK9911/4.8-5x1.5 140-4.8x1.6No b
1 4 m PVC hose 5x1.5 mm,
1 235 mm PVC pipe 12x1.1 mm
1 Electrode EE 10-G3/8
1 Tank intake nozzle TST M10, 90°
1 Small parts (2x 6 mm wall plugs with screws, 1x discharge elbow, 1x sealing plug)
1 Operating instructions
