INSTALLATION
INSTALLATION

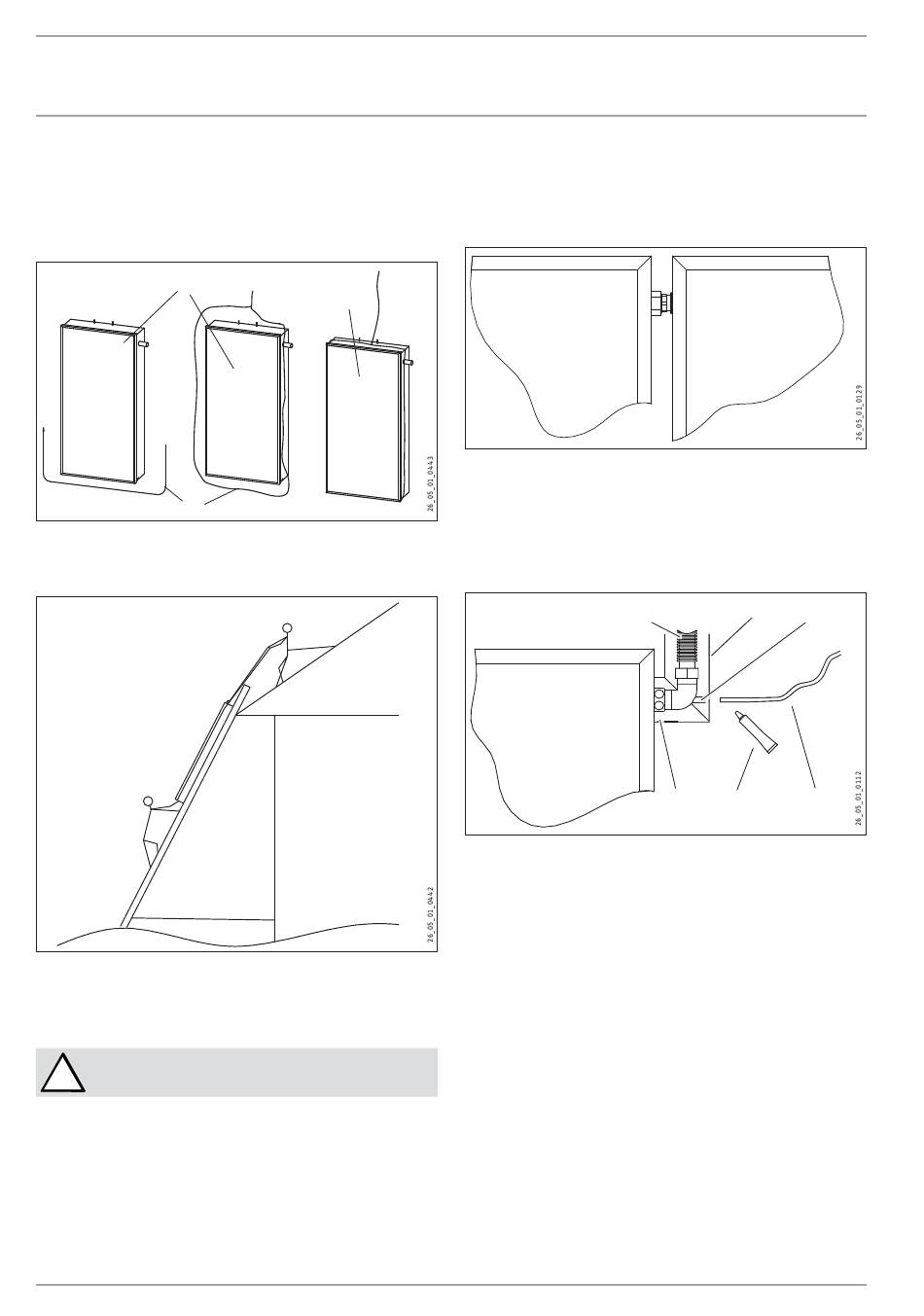

10.2 Lifting onto the roof
You can pull the collector onto the roof over a ladder. To do this,
place a rope around the collector frame.
Never secure the rope to the collector connections.
2
1
1 Rope
2 Collector
10.3 Fixing the collector
Install the collector in accordance with the installation instructions
for the fixing system being used.
If there is strong sunlight, the collectors should be
!
covered with opaque material before commissioning.
26 | SOL 27 BASIC
10.4 Making the collector connections
Interconnect the collectors. The collector connection on the left
side has a male thread, and the collector connection on the right
side has a union nut.
1
2
10.5 Fitting the collector sensor well
The correct connection of the collector sensor is crucial to the
correct function of the solar thermal system.
Assemble the collector sensor well at the collector flow, which is
the warmest place of the collector array.
1 Roof outlet (corrugated hose)
2 Thermal insulation
3 Collector sensor well
4 Threaded fitting
5 Heat conducting paste
6 Temperature sensor
Coat the collector sensor of the control unit with heat
»
conducting paste.
Insert the collector sensor into the collector sensor well until
»
it bottoms.
Secure the sensor lead, with cable ties for example.
»
Never adjust or twist the fitted connections.
1 2
3
4
5 6
