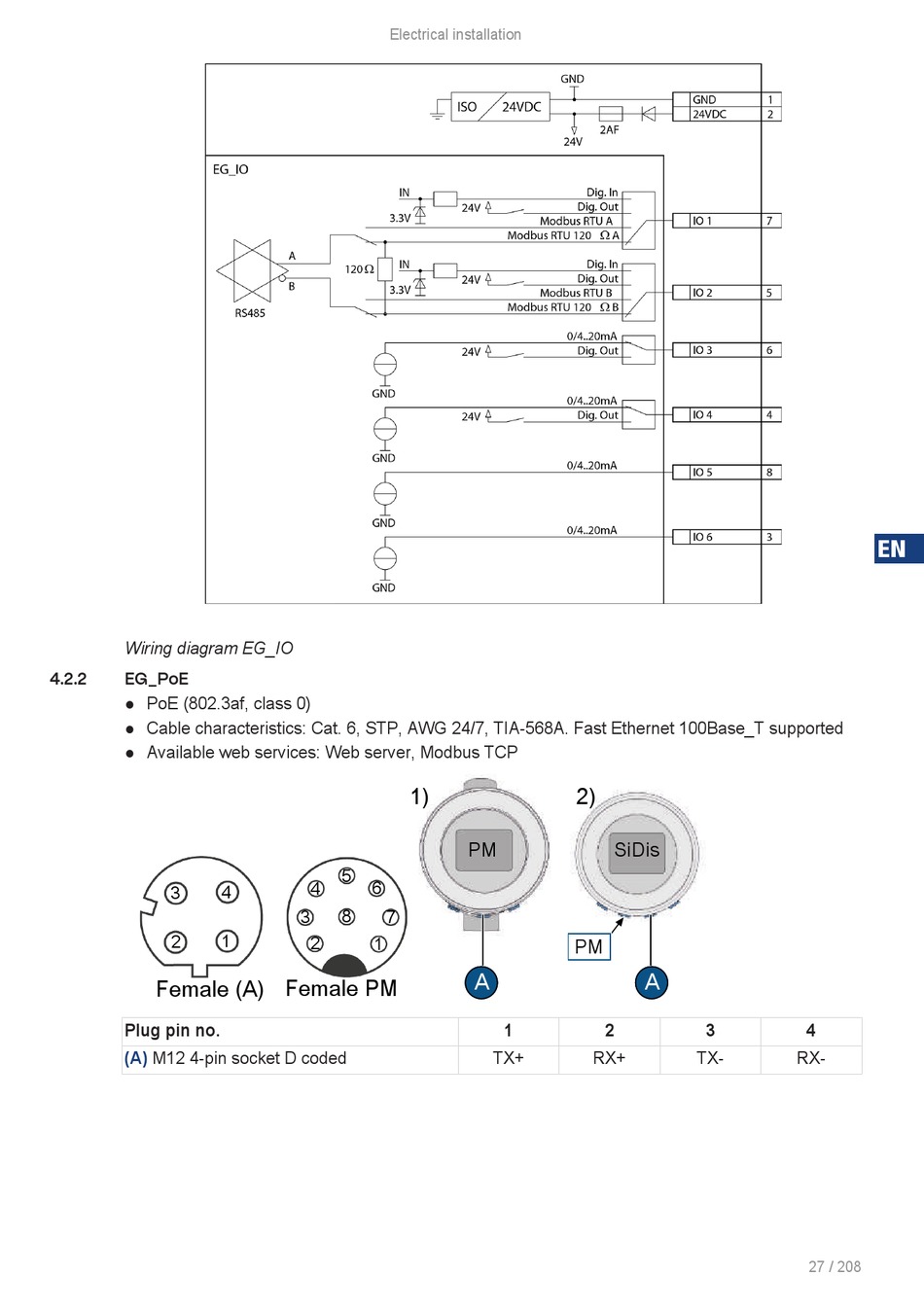

SIGRIST-PHOTOMETER TurBiScat PM 40 Kurzanleitung Seite 27

Wiring diagram EG_IO
4.2.2 EG_PoE
PoE (802.3af, class 0)
l
Cable characteristics: Cat. 6, STP, AWG 24/7, TIA-568A. Fast Ethernet 100Base_T supported
l
Available web services: Web server, Modbus TCP
l
4
3
1
2
Female (A)
Plug pin no.
(A) M12 4-pin socket D coded
Electrical installation
1)
5
4 6
3
8
3 7
2 1
3
Female PM
2)
PM SiDis
PM
A
1 2
TX+ RX+
A
3 4
TX- RX-
27 / 208
