OPERATING INSTRUCTIONS
en
4
Electrical installation
4.1
Shielding connection
22
O P E R A T I N G I N S T R U C T I O N S | TTK70 SSI + Sin/Cos
1

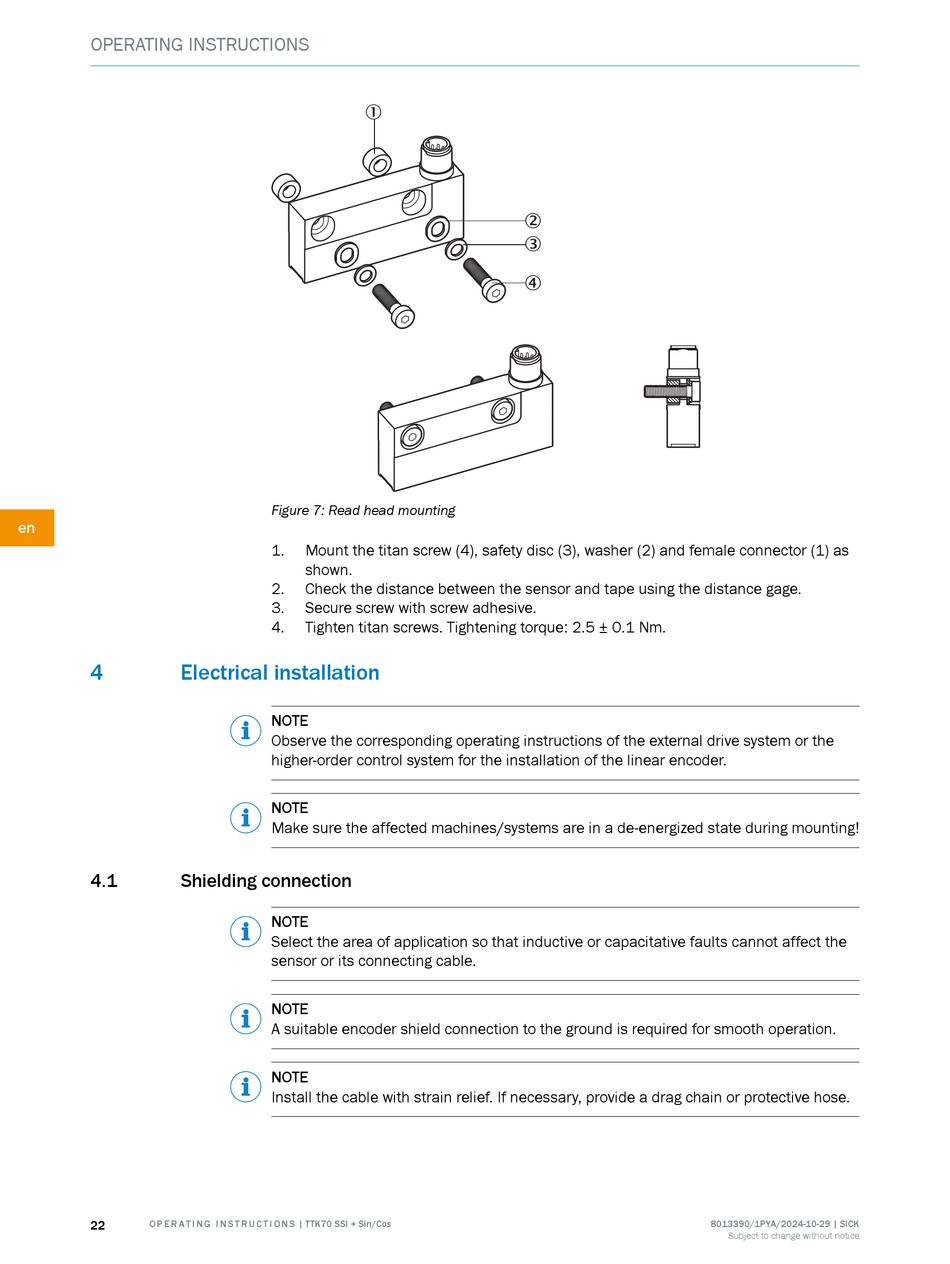

Figure 7: Read head mounting
1.
Mount the titan screw (4), safety disc (3), washer (2) and female connector (1) as
shown.
2.
Check the distance between the sensor and tape using the distance gage.
3.
Secure screw with screw adhesive.
4.
Tighten titan screws. Tightening torque: 2.5 ± 0.1 Nm.
NOTE
Observe the corresponding operating instructions of the external drive system or the
higher-order control system for the installation of the linear encoder.
NOTE
Make sure the affected machines/systems are in a de-energized state during mounting!
NOTE
Select the area of application so that inductive or capacitative faults cannot affect the
sensor or its connecting cable.
NOTE
A suitable encoder shield connection to the ground is required for smooth operation.
NOTE
Install the cable with strain relief. If necessary, provide a drag chain or protective hose.
2
3
4
8013390/1PYA/2024-10-29 | SICK
Subject to change without notice
