OPERATING INSTRUCTIONS
3.3 Magnetic tape mounting examples
en
20 O P E R A T I N G I N S T R U C T I O N S | TTK70 SSI + Sin/Cos
Carefully clean the mounting surface.
►
Remove the protective film of the tape on the magnetic tape.
►
Adhere the magnetic tape in line with the direction of movement.
►
Carefully clean the magnetic tape surface.
►
Remove the protective film of the tape on the covering tape.
►
Adhere covering tape (slightly overlap at both ends).
►
Secure the overlapping ends of the cover tape from coming loose.
►

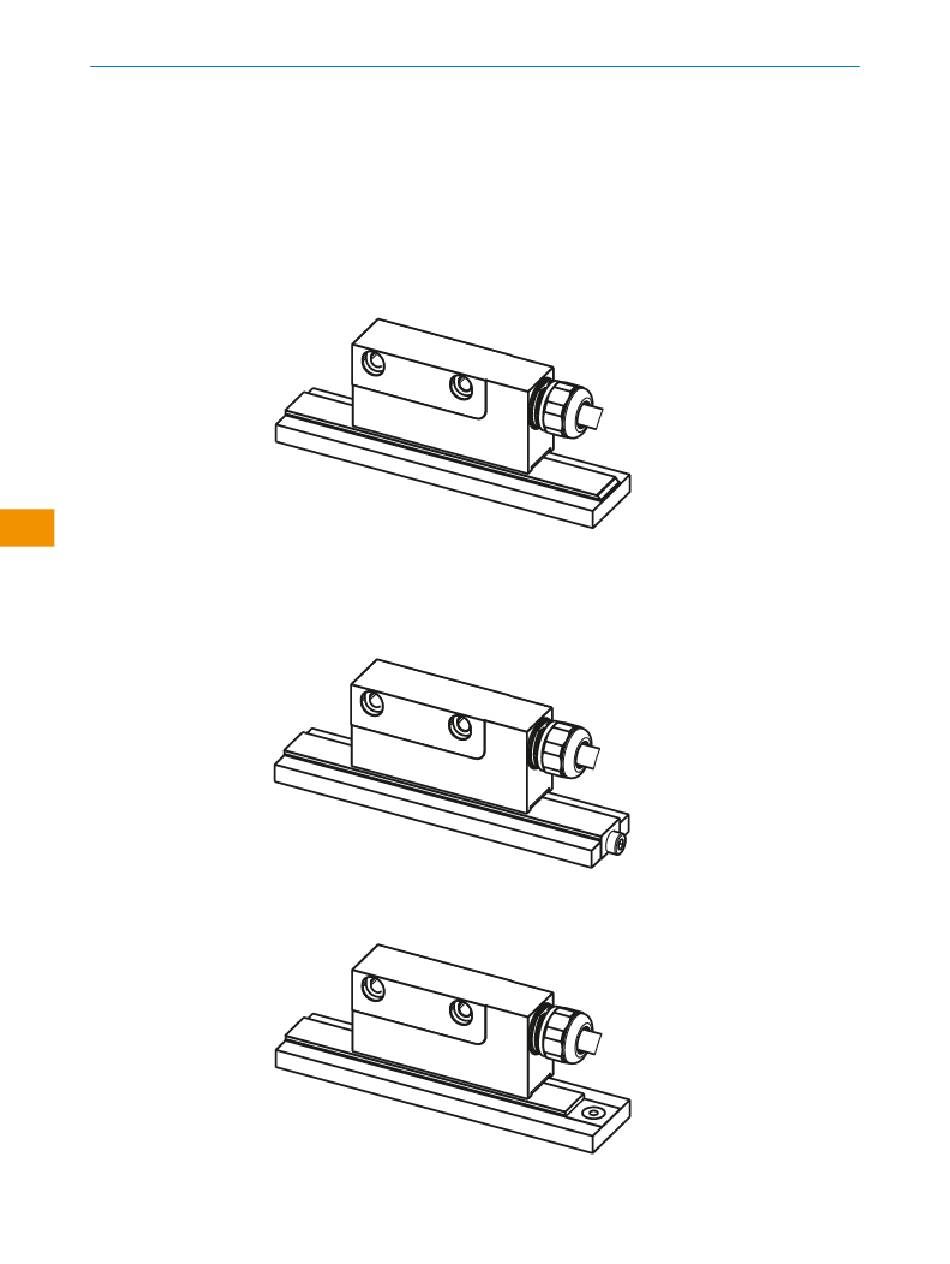

Figure 2: Mounting example - angled protective tape
The simple mounting method with angled protective tape is only recommended in a
very protected environment.
Figure 3: Mounting example - magnetic tape, fastened on front
Figure 4: Mounting example - magnetic tape, fastened flat
