Spacer plates
An even more precise adjustment can be made by inserting the enclosed spacer
plates behind the strike plate (  and  ).
Four spacer plates (type or type ) are included in the scope of delivery. The
 
thickness is t = 0.5 mm for each plate.

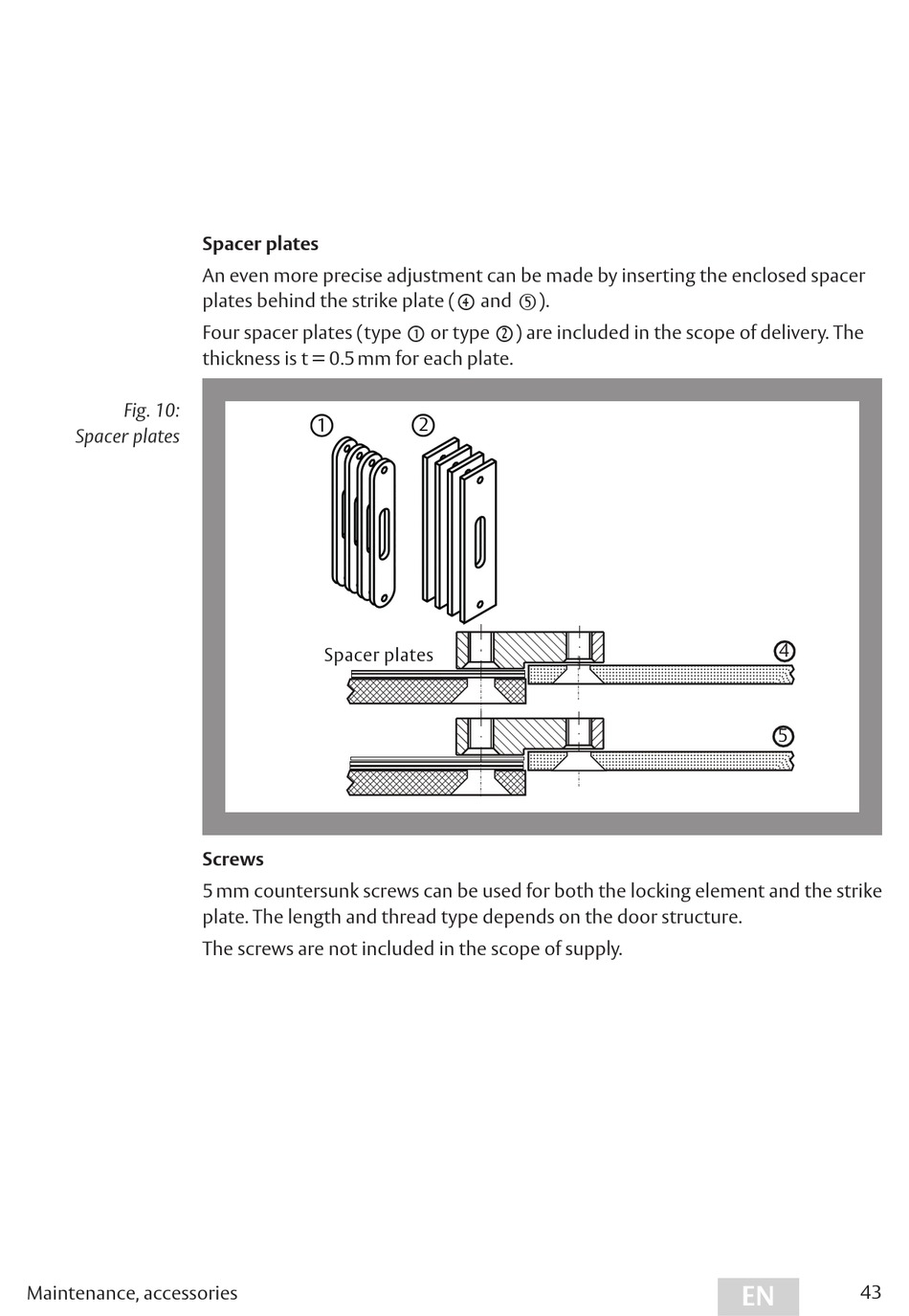

Fig. 10:
2
1
Spacer plates
4
Spacer plates
5
Screws
5 mm countersunk screws can be used for both the locking element and the strike
plate. The length and thread type depends on the door structure.
The screws are not included in the scope of supply.
EN
Maintenance, accessories 43
