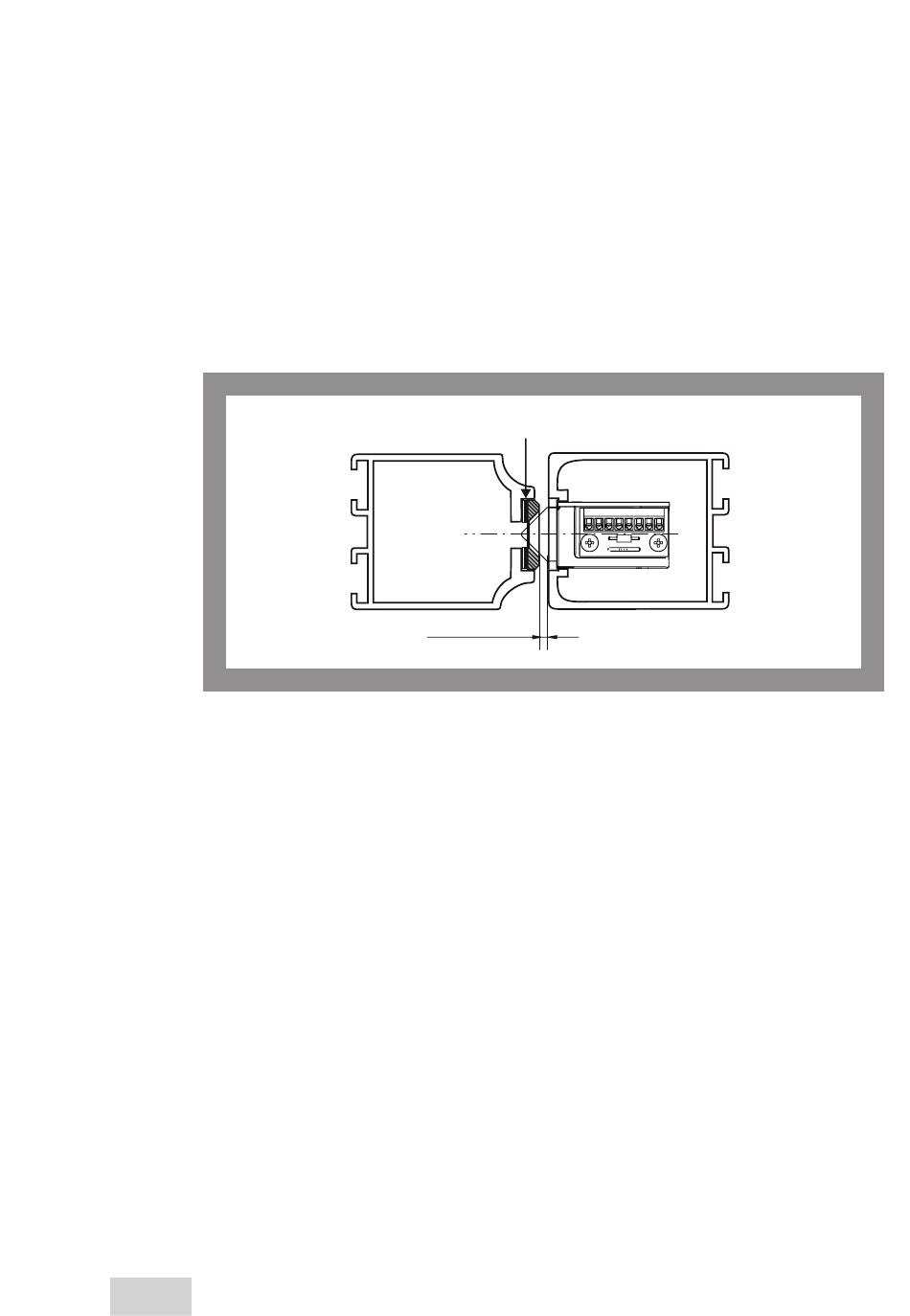

Fig. 3:
Rebate gap
EN
32
Rebate gap
The gap between the locking component and strike plate must be adjusted
during installation in such a way that the latch can extend fully. However, the
distance gap should not be adjusted too much to avoid excessive door leaf
clearance.
spacing sheets, if required
door leaf profile
max . 4 .5 mm
min. 2 mm
frame profile
1 2 3 4 5 6 7 8
