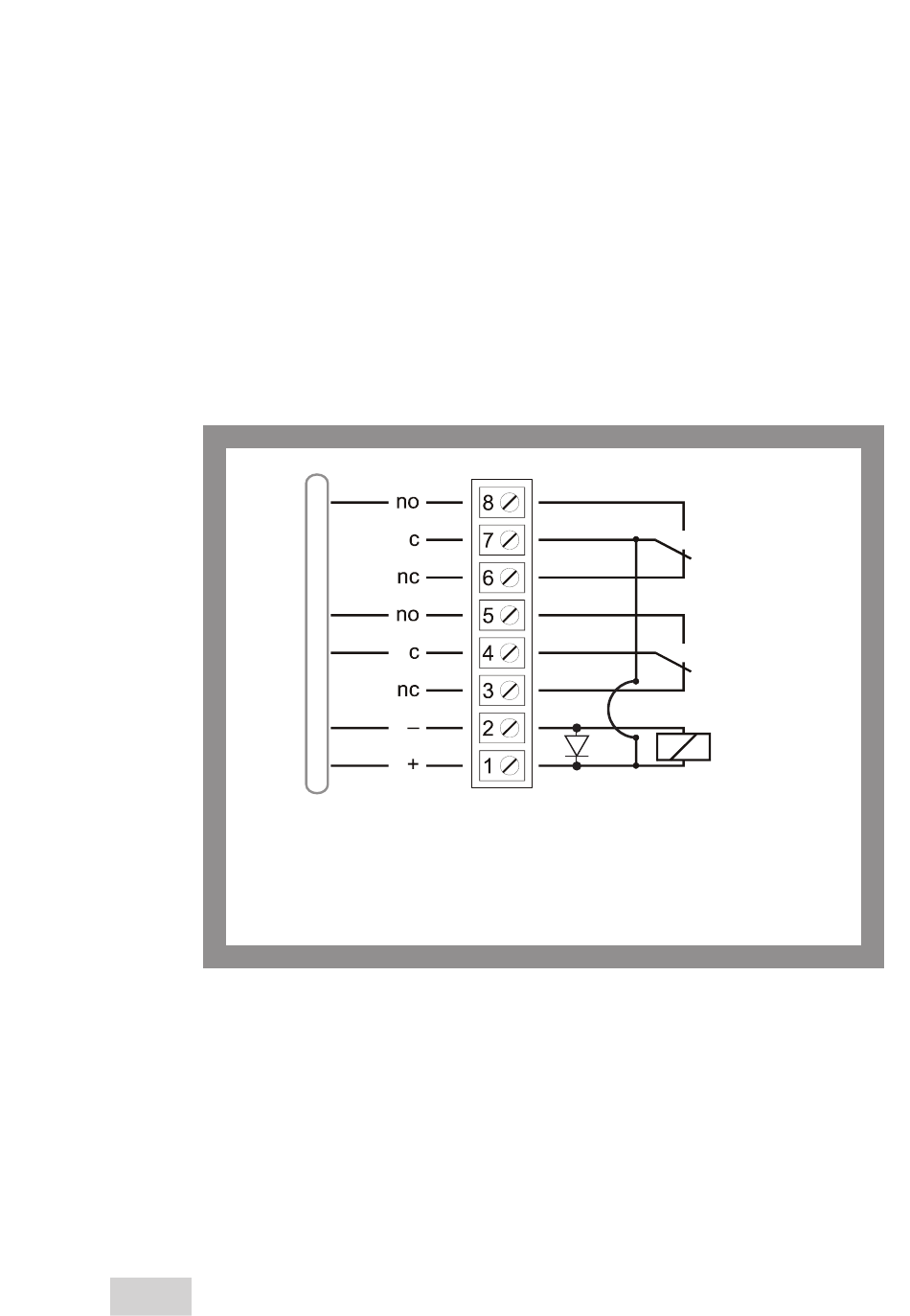

Fig. 5:
Single connection
EN
36
Electrical connection
The power supply must be dimensioned in such a way that the voltage to the
electric strike always remains within the permissible connection voltage range.
The electric strike has a recovery diode, which is connected to the coil in parallel.
Ensure correct polarity when connecting.
Single connection
D
F
E
B
A
RR
Rückmeldekontakt /
Monitoring contact /
Contact de signalisation
AKRR
RR
AKRR
Ankerrückmeldekontakt /
Armature contact /
Contact d'induit et de
signalisation
