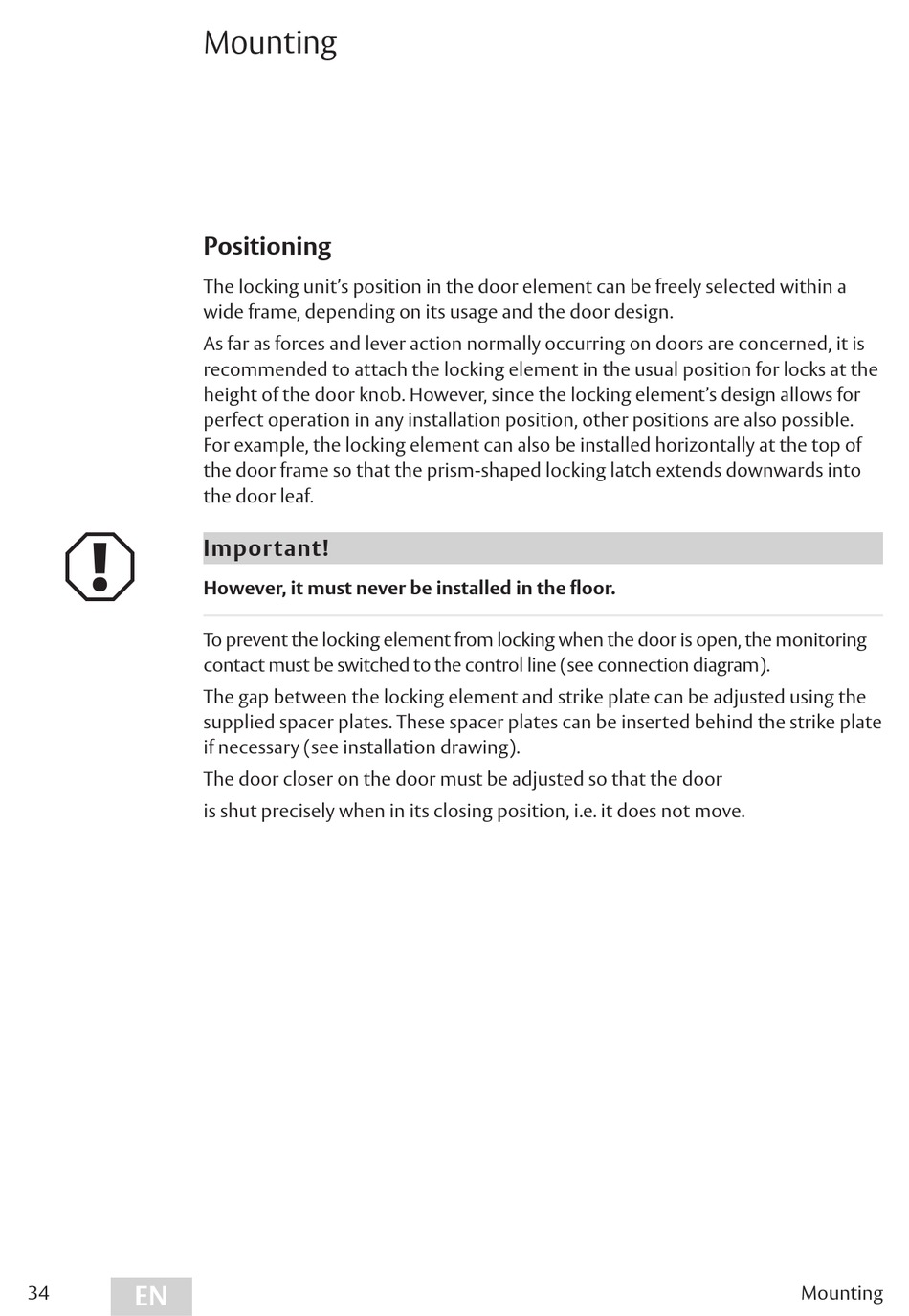

Mounting
Positioning
The locking unit's position in the door element can be freely selected within a
wide frame, depending on its usage and the door design.
As far as forces and lever action normally occurring on doors are concerned, it is
recommended to attach the locking element in the usual position for locks at the
height of the door knob. However, since the locking element's design allows for
perfect operation in any installation position, other positions are also possible.
For example, the locking element can also be installed horizontally at the top of
the door frame so that the prism-shaped locking latch extends downwards into
the door leaf.
A
Important!
However, it must never be installed in the floor.
To prevent the locking element from locking when the door is open, the monitoring
contact must be switched to the control line (see connection diagram).
The gap between the locking element and strike plate can be adjusted using the
supplied spacer plates. These spacer plates can be inserted behind the strike plate
if necessary (see installation drawing).
The door closer on the door must be adjusted so that the door
is shut precisely when in its closing position, i.e. it does not move.
