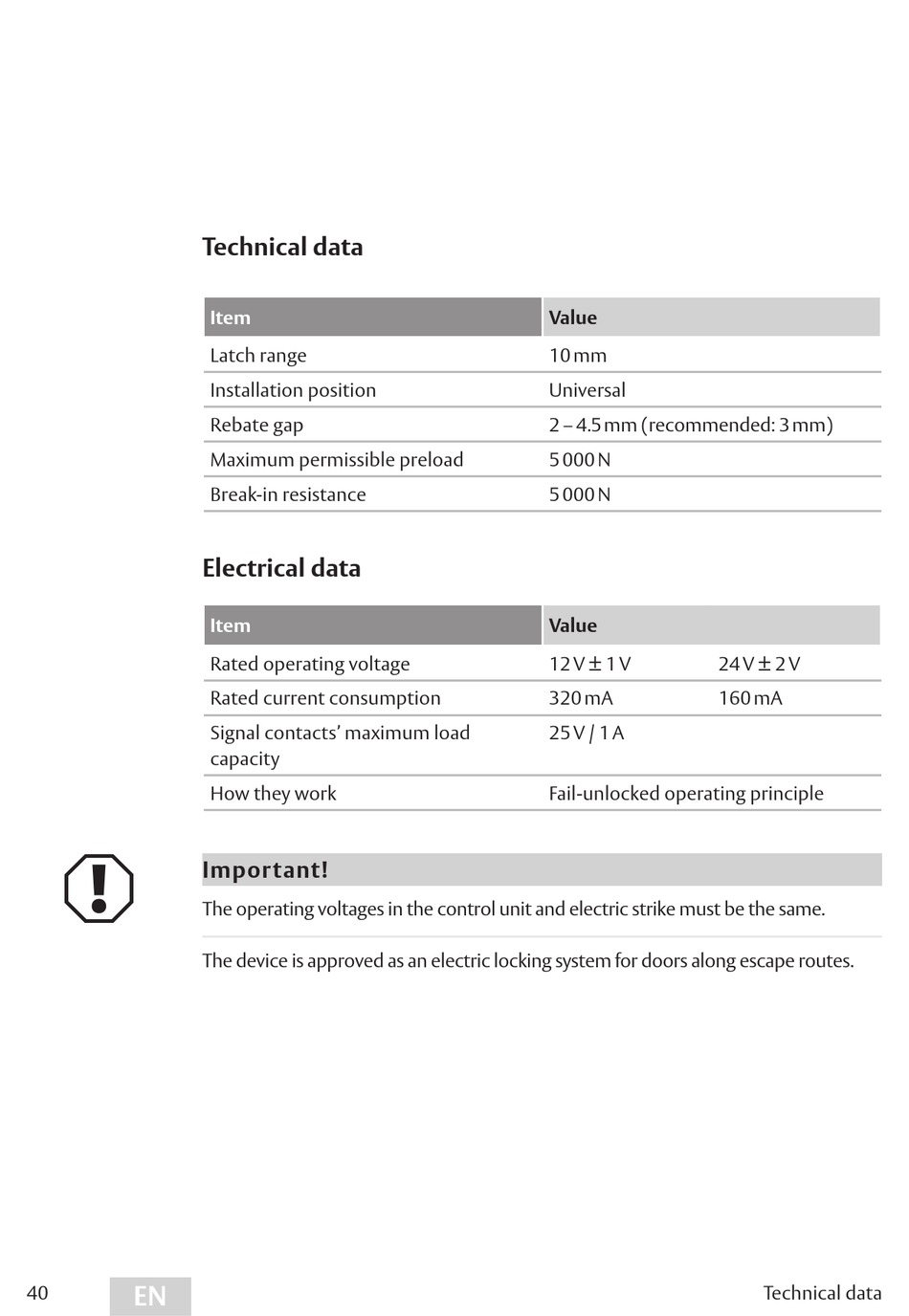

Technical data
Item
Latch range
Installation position
Rebate gap
Maximum permissible preload
Break-in resistance
Electrical data
Item
Rated operating voltage
Rated current consumption
Signal contacts' maximum load
capacity
How they work
Important!
The operating voltages in the control unit and electric strike must be the same.
The device is approved as an electric locking system for doors along escape routes.
Value
10 mm
Universal
2 – 4.5 mm (recommended: 3 mm)
5 000 N
5 000 N
Value
12 V ± 1 V 24 V ± 2 V
320 mA 160 mA
25 V / 1 A
Fail-unlocked operating principle
