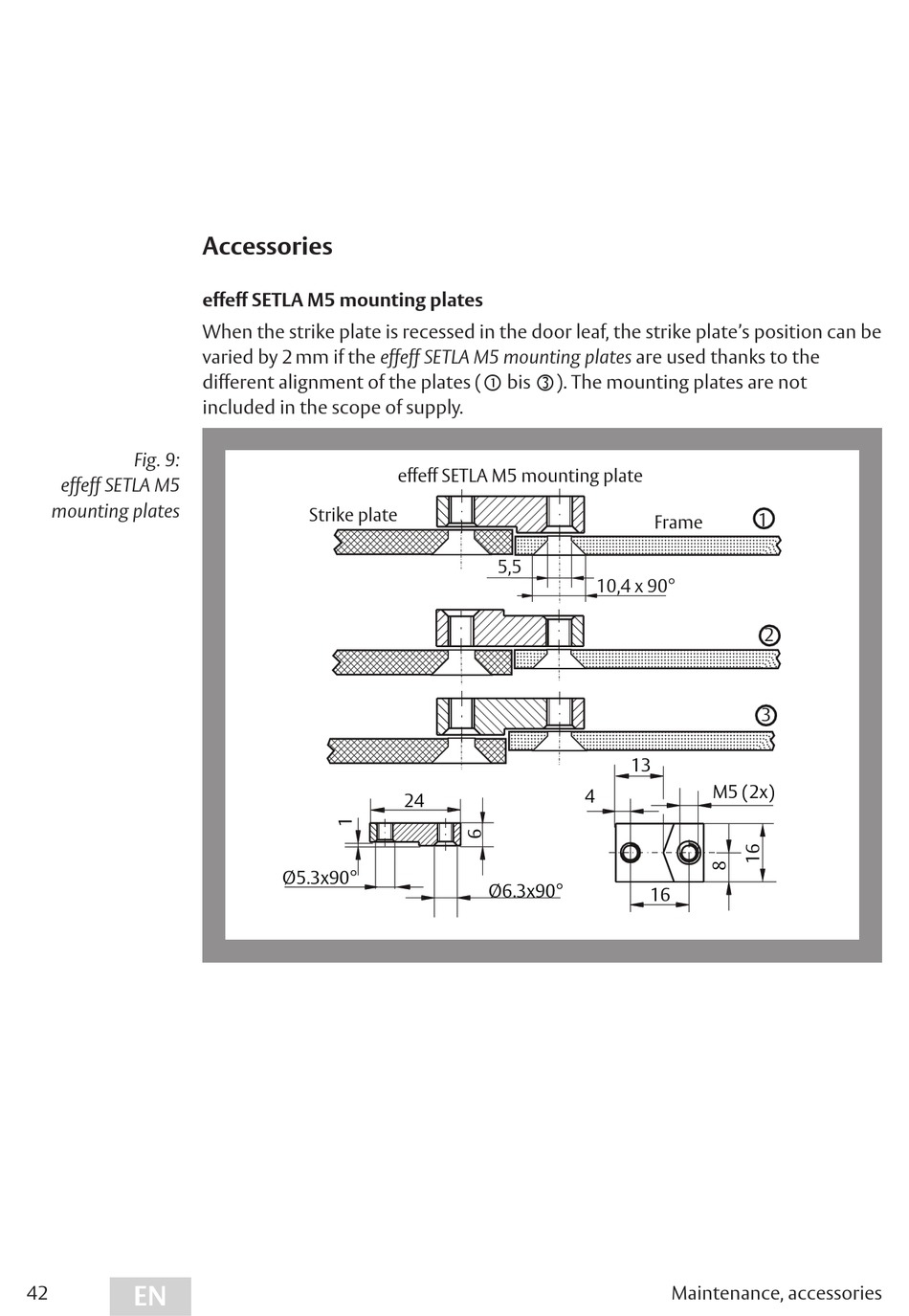

Fig. 9:
effeff SETLA M5
mounting plates
EN
42
Accessories
effeff SETLA M5 mounting plates
When the strike plate is recessed in the door leaf, the strike plate's position can be
varied by 2 mm if the effeff SETLA M5 mounting plates are used thanks to the
different alignment of the plates (
included in the scope of supply.
Strike plate
Ø5.3x90°
bis
). The mounting plates are not
effeff SETLA M5 mounting plate
5,5
24
Ø6.3x90°
Frame
10,4 x 90°
13
M5 (2x)
4
16
Maintenance, accessories
1
2
3
