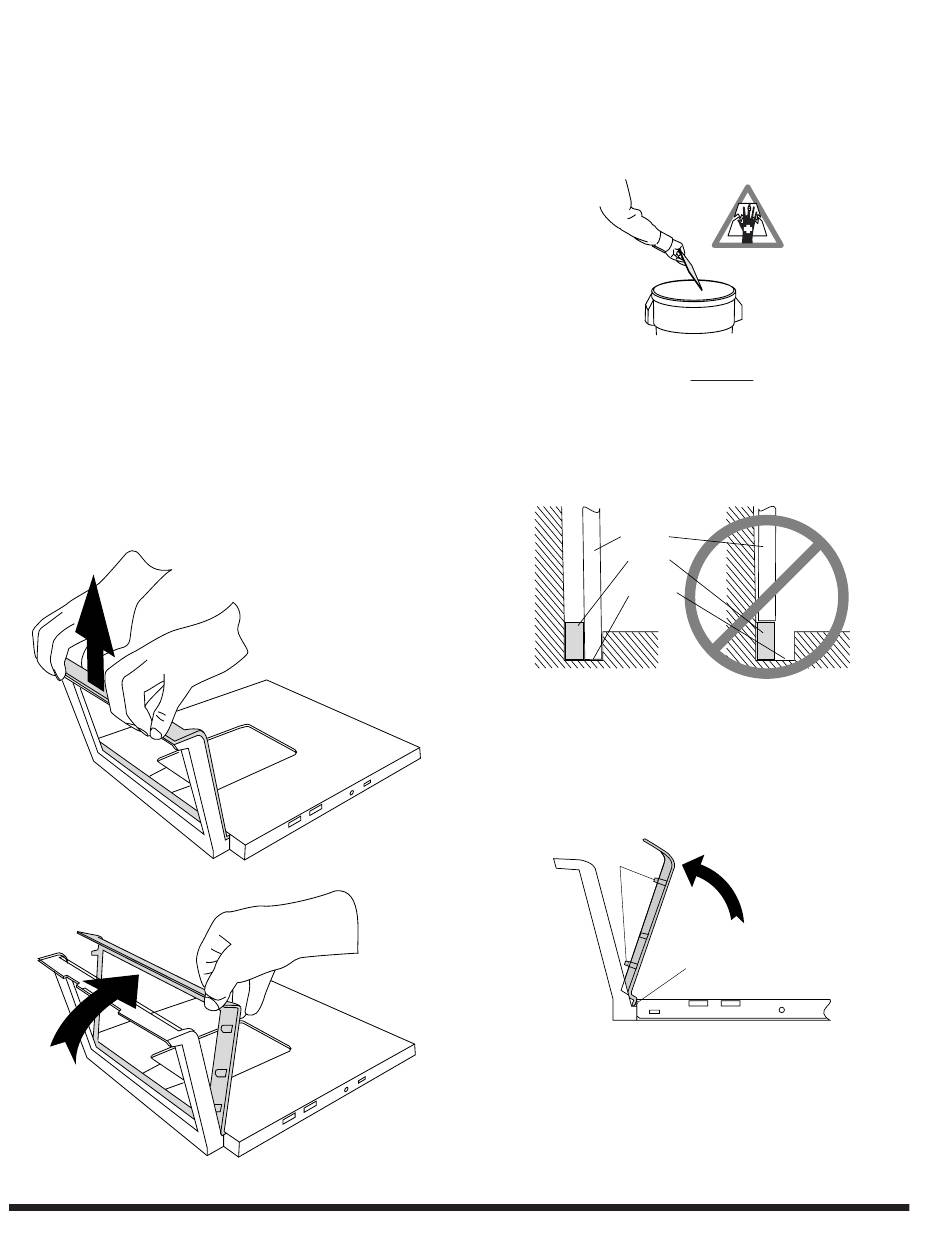

The vertical scan window enclosed in the
L-Platter is a replaceable part. Follow these
instructions to remove and replace the window:
1. Remove the L-Platter as described in the
previous section Cleaning the Debris
Chutes and place it on a clean, flat sur-
face.
2. Lift up on the plastic retainer at the two
snaps located on the inside top edge of
the L-Platter (see the bottom figure
below). Once the snaps are released, tilt
the retainer out, carefully freeing the
retainer from the L-Platter.
12
M
OUTINE AINTENANCE
V S
ERTICAL CAN
—
CONTINUED
3. Remove the vertical scan window from its
seated position and carefully dispose of any
damaged glass.
4. Fully seat the new vertical scan window



into the window channel of the L-Platter.
The window must NOT rest on top of
the foam gasket. If the window is not
positioned correctly, the retainer will not
fully seat.
Window
Gasket
Seat in
Channel
YES
5. Tilt the retainer as shown to engage the
two tabs at the bottom of the retainer,
then carefully snap the retainer into
place onto the L-Platter.
Snaps
Engage Tabs
6. Clean both sides of the vertical scan
window, following the directions given
in the earlier section: Cleaning Proce-
d u r e .
7. Replace the L-Platter. Vertical scan
window replacement is now complete.
