located near the panel. These controls and indicators
allow you to select beeper volume, wake the scanner up
from "sleep mode", zero the scale, reset the unit, moni-
tor scanner and scale status, and receive failure code
information in the event of a problem.

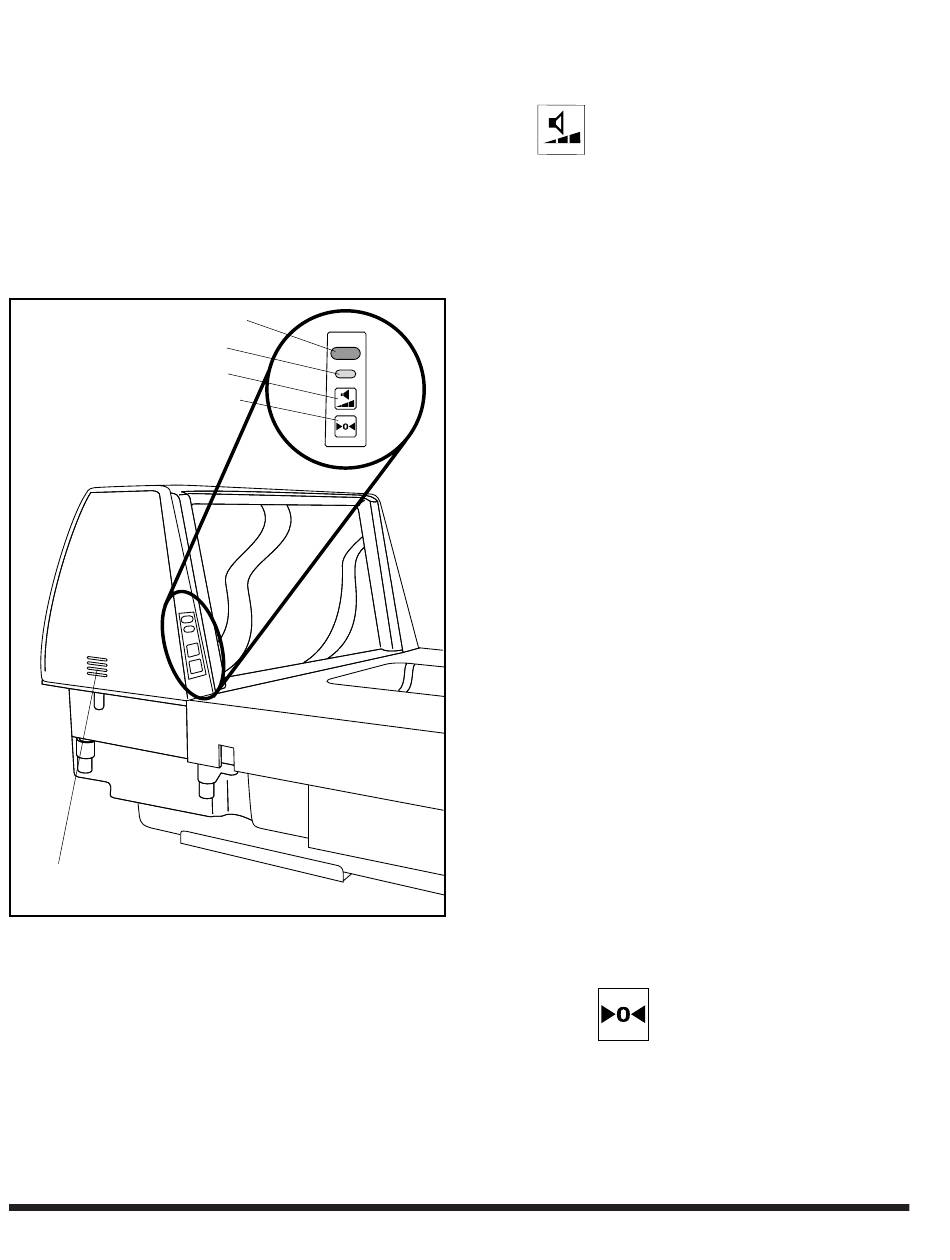

The illustration below identifies the various controls
and indicators.
Scanner Status LED (Green)
Scale Status LED (Yellow)
Volume Selection Switch
Zero Switch
Speaker
C S
ONTROL WITCHES
The two control switches, Volume Selection and scale
Zero, perform multiple functions that are described
as follows:
6
C & I
ONTROLS NDICATORS
V
OLUME
The Volume Selection switch serves three functions,
volume selection, scanner wake-up and scanner reset.
Volume Selection — Volume selection can only be
made when the scanner is "awake"; that is, when
the Scanner Status (green) LED is on dim (see
Wake-Up below). Three volume choices are
available: low, medium and high. To change the
current selection, press the Volume Selection
Switch and listen to the volume of the three tones
sounded. Each time you press the switch, three
tones will sound at a different volume, cycling
through the three volume choices. Simply stop
pressing the switch after the preferred volume is
heard. If the scanner is reset for any reason, this
setting is lost and the volume will return to its
default setting.
Wake-Up — To conserve energy and extend its life,
the scanner will enter a state called "Sleep Mode"
when it has been inactive for a prolonged period.
To wake up the scanner, press and release the
Volume Selection Switch (or pass an object in
front of the vertical window. For scanner/scale
models, pushing down on the L-Platter will also
wake up the scanner).
Scanner Reset — Since a scanner reset may cause
your POS system to react, only system support
personnel should perform the reset. Pressing and
holding the Volume Selection switch for approxi-
mately six seconds will initiate a scanner reset.
The Zero switch is used primarily to "zero" the scale,
and can also be used to wake up the scanner/scale
(see Wake-Up on the previous page).
