I I n n s s t t a a l l l l a a t t i i o o n n
I I n n s s t t a a l l l l i i n n g g t t h h e e f f l l o o o o r r p p l l a a t t e e
The P P o o w w e e r r - - P P R R O O TL Cot Fastener System for the floor plate mounting model is compatible only with cots that conform to
the floor plate mounting installation specifications listed below.
W W A A R R N N I I N N G G
• Always install the floor plate by qualified personnel only. Improper installation could result in injury to the patient or
operator.
• Always make sure that all cots meet the installation specifications for the P P o o w w e e r r - - P P R R O O TL Cot Fastener System. Injury
may result if a non-compatible cot is used with the P P o o w w e e r r - - P P R R O O TL Cot Fastener System.
• Do not use screws smaller than the 3/8'' diameter specified to anchor the floor plates.
1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.
N N o o t t e e - - Federal ambulance specifications regarding aisle width and attendant seating may affect mounting bracket
positioning. If specifications do not apply, the installer should make sure that there is adequate clearance for proper
patient access, traction splint projection, and rear door closure.
2. Using the dimensions shown in Figure 2, locate and drill the points where the floor plates will attach.
N N o o t t e e
• Make sure that the centerline of the cot is parallel to the vehicle wall.
• Make sure that you space the floor plates evenly around the centerline of the cot.
• Stryker recommends 370 mm from the centerline of the cot to the vehicle side wall to allow for wheel rotation.
610 MM (REF)
D
A Head end
B Foot end
C Front of vehicle
3. Cut 1" x 2-1/2'' x 9/16'' deep recessed openings (F) into the floor centered over the locating holes (Figure 3).
4. Using two 3/8'' diameter (grade 8) socket head cap screws (G), anchor each floor plate (H) into the recessed openings
with the counter-bored holes facing up (Figure 4).
N N o o t t e e
• Steel backing plates (or equivalent) (I) (not supplied) are required for added support (Figure 4).
• For the foot end, use four steel backing plates with dimensions 4" x 6" x 3/8". For the head end, use one steel backing
plate with dimensions 9.25" x 10" x 3/8".
EN 8
A
90 MM
C
320 MM 150

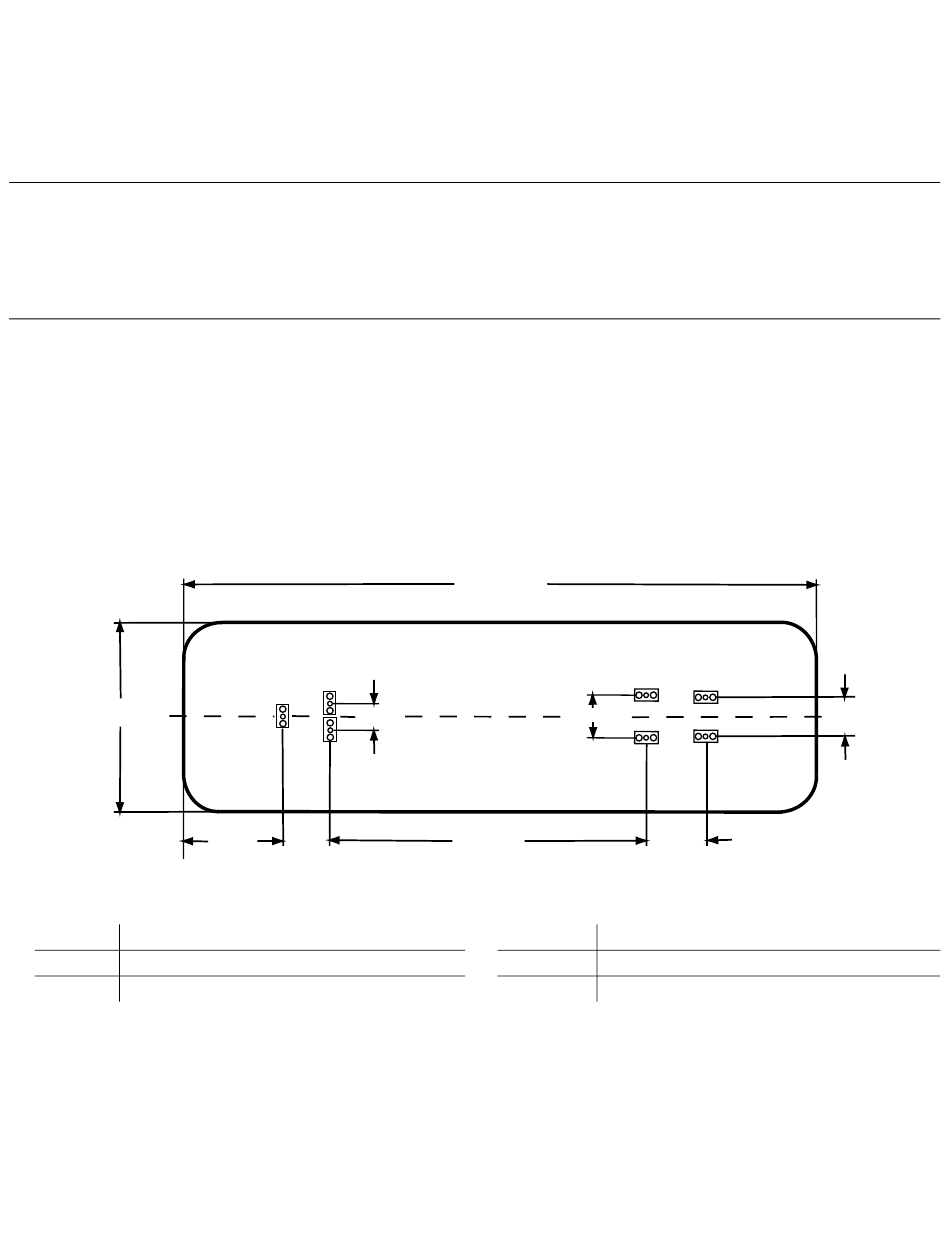

F F i i g g u u r r e e 2 2 – – F F l l o o o o r r p p l l a a t t e e i i n n s s t t a a l l l l a a t t i i o o n n l l o o c c a a t t i i o o n n s s
1925 MM (REF)
E
140 MM
1015 MM
D Cot width
Cot length
E
B
120 MM
194 MM
