I I n n s s t t a a l l l l i i n n g g t t h h e e 2 2 5 5 5 5 M M M M f f l l o o o o r r t t r r a a c c k k ( ( M M o o d d e e l l 6 6 3 3 8 8 6 6 a a n n d d 6 6 3 3 8 8 8 8 ) )

The P P o o w w e e r r - - P P R R O O TL Cot Fastener System for the floor track mounting Model 6386 and 6388 is compatible only with cots

that conform to the floor track mounting installation specifications listed below.

1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.

N N o o t t e e - - Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of the

mounting brackets. If specifications do not apply, the installer should be certain that there is adequate clearance for

proper patient access, traction splint projection, and rear door closure.

2. Using the dimensions shown in Figure 10, identify where the floor tracks will attach.

3. Attach the floor tracks as specified by the track manufacturer.

N N o o t t e e

• Make sure that the centerline of the cot is parallel to the vehicle wall.

• Make sure that the tracks extend at least 200 mm beyond each locking position in both directions.

I I n n s s t t a a l l l l i i n n g g t t h h e e 3 3 0 0 0 0 M M M M f f l l o o o o r r t t r r a a c c k k ( ( M M o o d d e e l l 6 6 3 3 8 8 7 7 a a n n d d 6 6 3 3 8 8 9 9 ) )

The P P o o w w e e r r - - P P R R O O TL Cot Fastener System for the floor track mounting Model 6387 and 6389 is compatible only with cots

that conform to the floor track mounting installation specifications listed below.

1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.

N N o o t t e e - - Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of the

mounting brackets. If specifications do not apply, the installer should be certain that there is adequate clearance for

proper patient access, traction splint projection, and rear door closure.

2. Using the dimensions shown in Figure 11, identify where the floor tracks will attach.

3. Attach the floor tracks as specified by the track manufacturer.

N N o o t t e e

• Make sure that the centerline of the cot is parallel to the vehicle wall.

• Make sure that the tracks extend at least 200 mm beyond each locking position in both directions.

6385-109-005 Rev AA.1

1244.6 MM

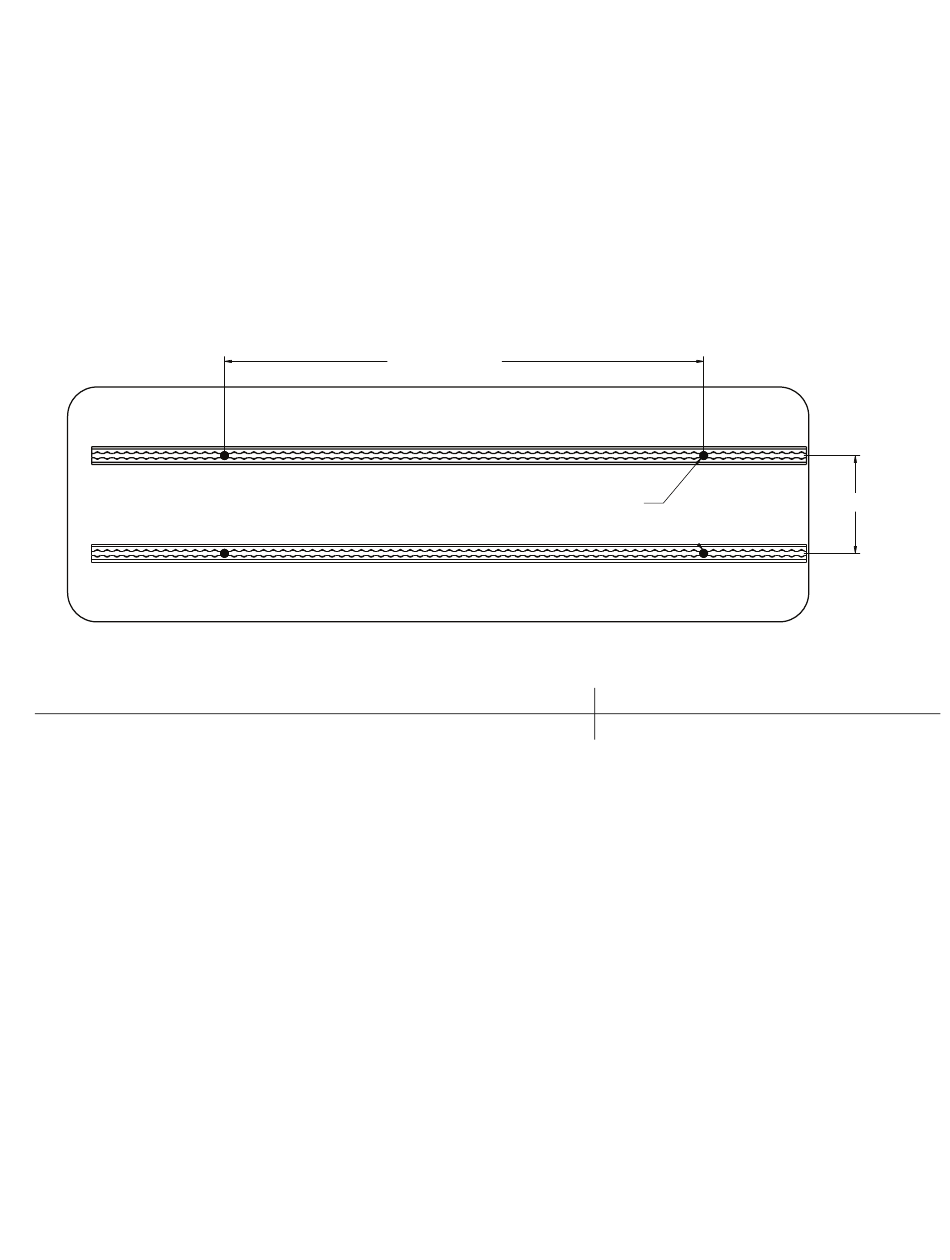

F F i i g g u u r r e e 1 1 0 0 – – F F l l o o o o r r t t r r a a c c k k i i n n s s t t a a l l l l a a t t i i o o n n l l o o c c a a t t i i o o n n s s

49 positions

Locks use indicated track positions

255 MM
