I I n n s s t t a a l l l l i i n n g g t t h h e e h h e e a a d d e e n n d d a a n n d d f f o o o o t t e e n n d d f f a a s s t t e e n n e e r r ( ( M M o o d d e e l l 6 6 3 3 8 8 6 6 a a n n d d 6 6 3 3 8 8 7 7 ) )

To assemble both cot fasteners:

1. Position the eight washers (P) between the eight screws (O) (four on each side) and the foot end fastener lock down

base plate (Q) (Figure 7).

N N o o t t e e - - Position the track mounted fastener (U U n n w w i i n n adaptor) (R) under the foot end fastener lock down base plate (Q).

Make sure that the black arrow on the U U n n w w i i n n adaptor points toward the front of the ambulance.

2. Loosely tighten the screws (O) to attach the U U n n w w i i n n adaptor (R) to the foot end fastener lock down base plate (Q).

3. Repeat steps 1-2 to attach the U U n n w w i i n n adaptor to the head end fastener lock down base plate.

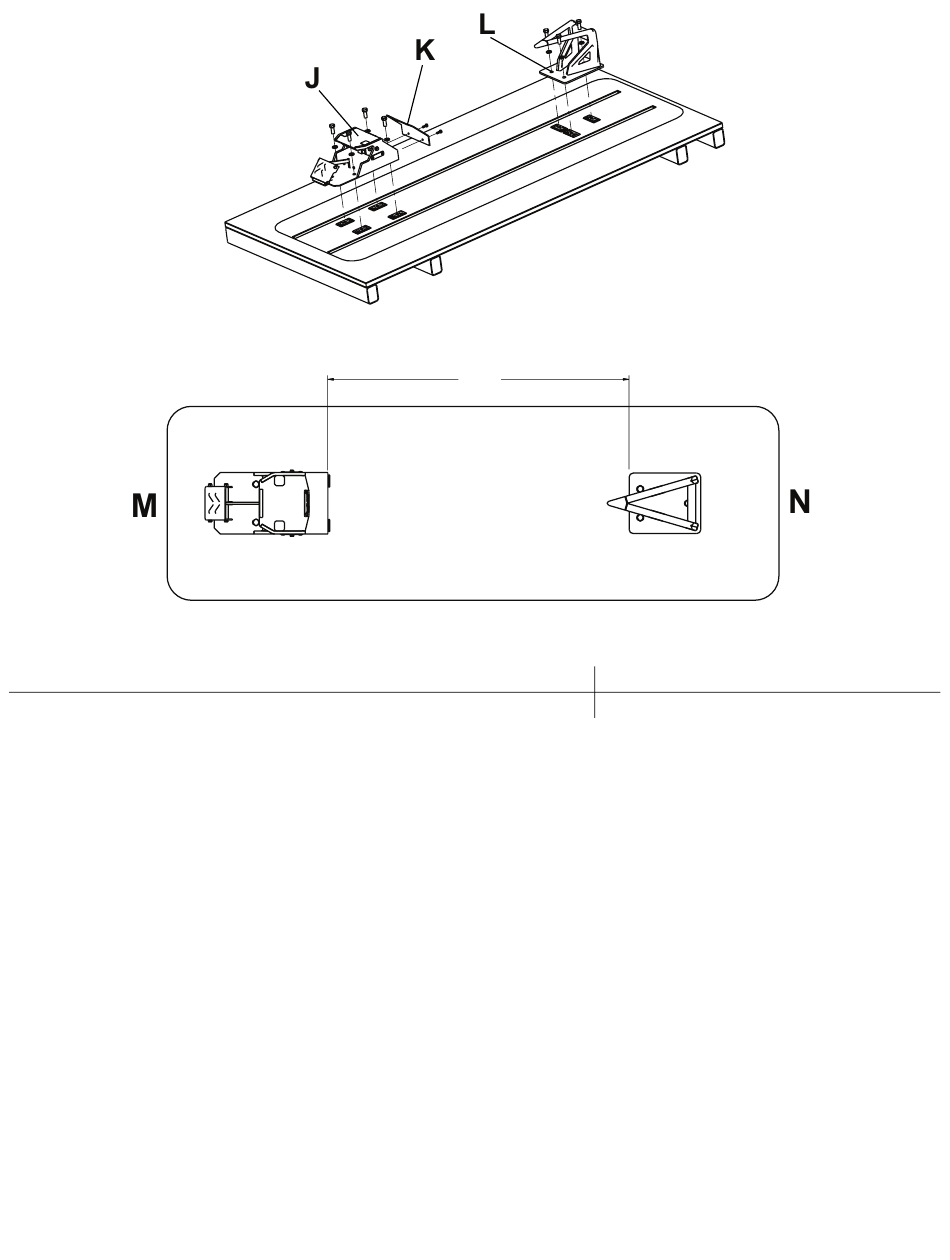

F F i i g g u u r r e e 5 5 – – H H e e a a d d e e n n d d a a n n d d f f o o o o t t e e n n d d f f a a s s t t e e n n e e r r - - f f l l o o o o r r p p l l a a t t e e i i n n s s t t a a l l l l a a t t i i o o n n

F F i i g g u u r r e e 6 6 – – F F a a s s t t e e n n e e r r s s p p a a c c i i n n g g

948 MM

Foot end

Head end
