TECHNICAL PASSPORT
Integrated fridge freezer

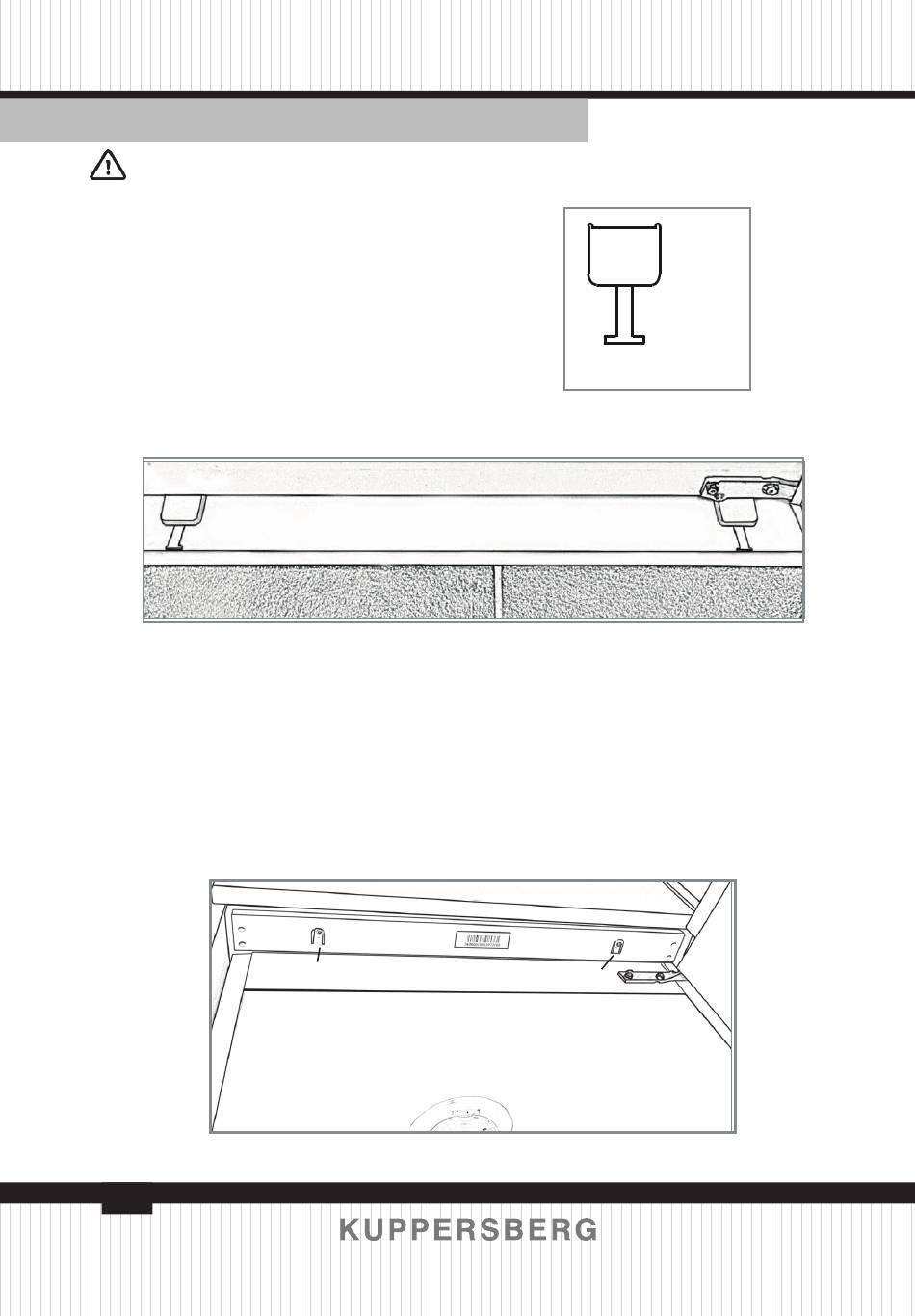

INSTALL ATION INTO THE CABINET
With the help of another individual,
or two, manoeuvre the appliance into the
cabinet. There are two metal plates at the
base of the appliance. Fit the supplied
white spacers (Fig. 3) to these plates, as
per Fig. 4.
Ensure that the lips of the spacers are
level with the lip of the cabinet base.
With the base of the appliance
aligned correctly with the edge of the
cabinet base, the metal trim at the top of
the appliance should sit flush against the
cabinet edge (if it does not, ensure the
32
Cabinet base
Trim
T
Fridge/freezer base
Floor
Fig. 4
base is aligned as per Fig. 4 and that the
metal trim in Fig. 5 is not damaged).
Secure the top of the appliance to the
top of the cabinet through the metal trim
screw holes marked T in Fig. 5.
T
Fig. 5
ENGLISH
x2
Fig. 3
