ENGLISH
An air intake
should be provided
somewhere in
the cabinet run to
allow free air in.
In this example,
a plinth vent is shown
underneath the
refrigerator.
A cutout should be
made in the plinth
below the fridge/
freezer and this
finished neatly using
the air vent grille
supplied.
Alternatively, a thin
section of the plinth
can be removed
to allow air into the
unit (recommended
600mm x 10mm).

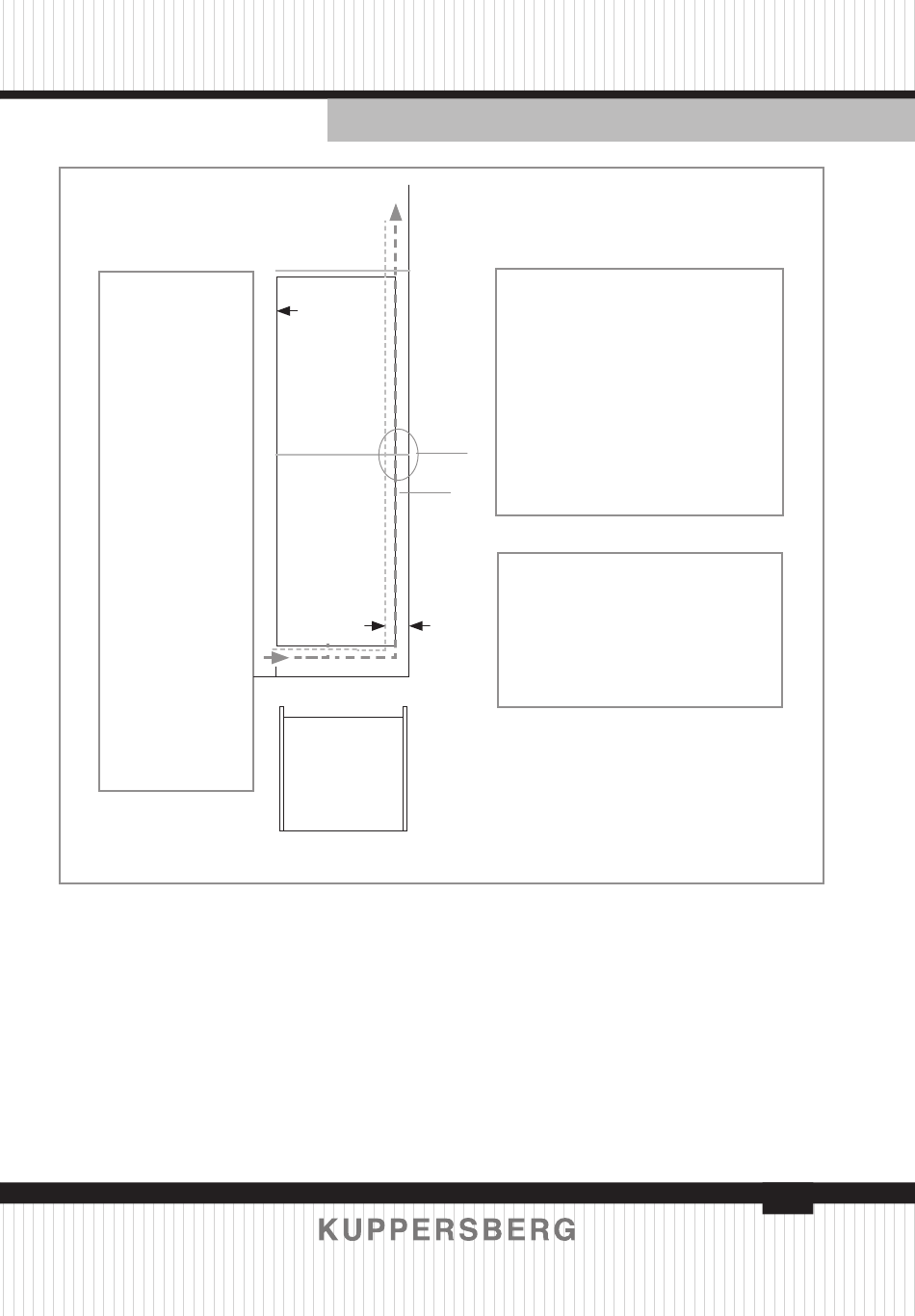

The open channel at the rear is
clearly shown. For the correct operation
of the appliance it is important that the
top of the housing unit is not blocked off.
A channel depth of 40-50mm is normal
with most units.
A ventilation hole is required in the
plinth of the unit; this allows air to be
drawn over the compressor & heat ex-
Refrigerator
outline
plan view of rear ventilation gap
Integrated fridge freezer
The top of the cabinet needs to be vented
into the room
Recommended size of vent opening: 500
x 40mm
If the furniture does not allow free air into
the room then a plinth vent, or other means
of ventilation needs to be pro- vided to
ensure a natural flow of air
There should be space at the rear of the
cabinet to allow cool air to be drawn over
the condenser.
Min 30mm
Recommended: 500 x 40mm
Fig. 2
change. A decorative grille is supplied
with the appliance to finish this vent
neatly. Alternatively the required air flow
can be achieved by removal of a thin
section of plinth (600mm x 10mm mini-
mum).
As a rule, the more air that can get in
and out, the better and more efficient the
operation of the product.
