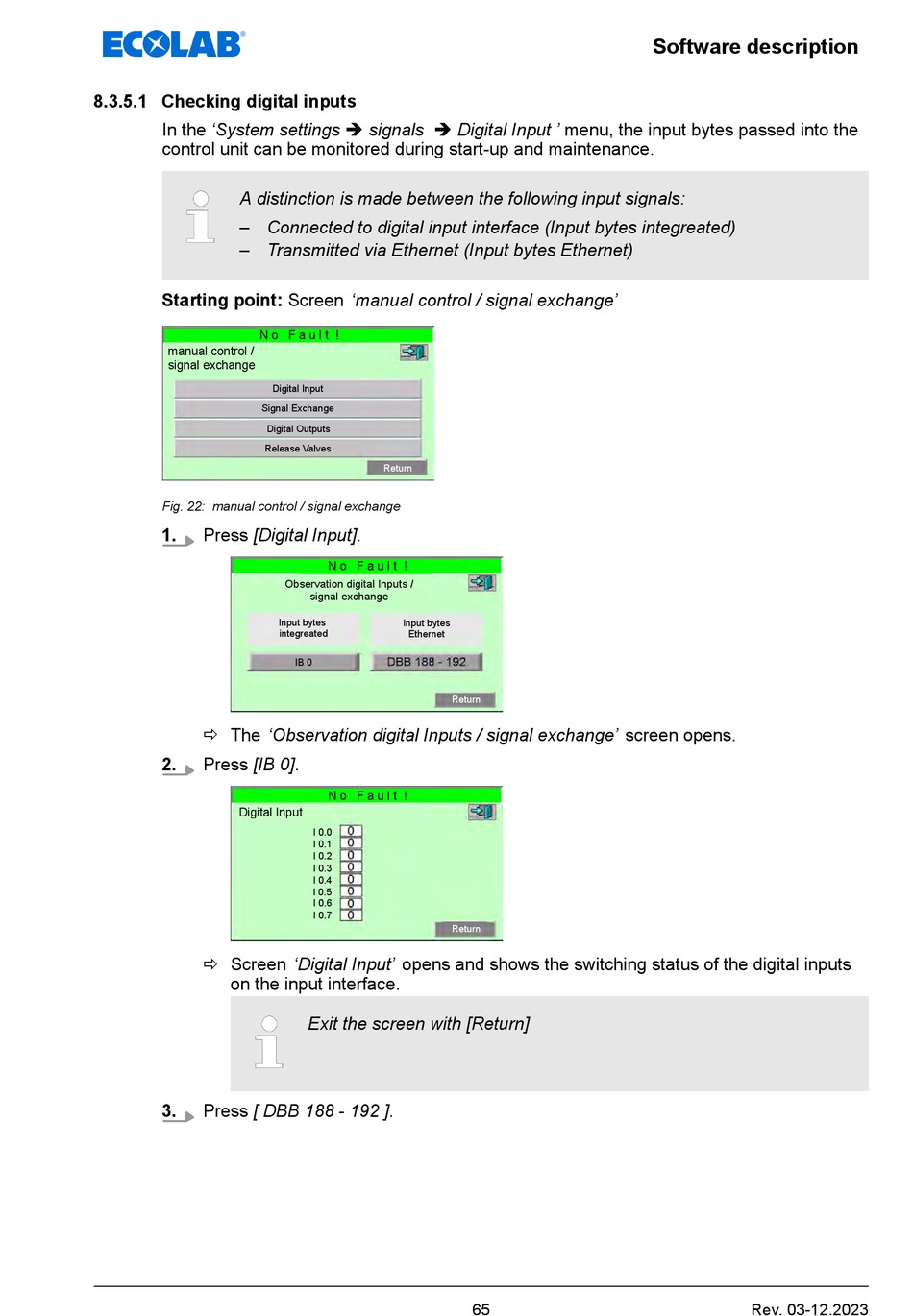

8.3.5.1 Checking digital inputs
In the 'System settings è signals è Digital Input ' menu, the input bytes passed into the
control unit can be monitored during start-up and maintenance.
A distinction is made between the following input signals:
– Connected to digital input interface (Input bytes integreated)
– Transmitted via Ethernet (Input bytes Ethernet)
Starting point: Screen 'manual control / signal exchange'
N o F a u l t !
manual control /
signal exchange
Signal Exchange
Digital Outputs
Release Valves
Fig. 22: manual control / signal exchange
1.
Press [Digital Input].
ð The 'Observation digital Inputs / signal exchange' screen opens.
2.
Press [IB 0].
Digital Input
ð Screen 'Digital Input' opens and shows the switching status of the digital inputs
on the input interface.
3.
Press [ DBB 188 - 192 ].
Digital Input
Return
N o F a u l t !
Observation digital Inputs /
signal exchange
Input bytes
Input bytes
integreated
Ethernet
IB 0
N o F a u l t !
I 0.0
I 0.1
I 0.2
I 0.3
I 0.4
I 0.5
I 0.6
I 0.7
Exit the screen with [Return]
Return
Return
65
Software description
Rev. 03-12.2023
